| Categories | Aluminum Checkered Plate |
|---|---|
| Brand Name: | LIANZHONG |
| Model Number: | 1000series, 2000series, 3000series, 5000series, 6000series, 7000series |
| Certification: | ISO9001 |
| Place of Origin: | Jiangsu,China |
| MOQ: | 1ton |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 Ton/Tons per Month |
| Delivery Time: | 3-15 days |
| Packaging Details: | Exporting package/wooden box package/Or per customers’requirement |
| Product Name: | Aluminum checkered plate |
| Thickness: | 0.6-10mm or as required |
| Temper: | O- H112 |
| Width: | 600-2300mm or as required |
| Color: | Silver |
| Application: | Transportation Tools, Door & Window, Glass Wall, Heat Sink, Decorations |
| Company Info. |
| JIANGSU LIANZHONG METAL PRODUCTS (GROUP) CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
1050 4x8 Aluminum Checkered Plate Embossed Diamond Surface 1mm 2mm Thick For Floor
Product Decription
Aluminum alloy is soft and usually alloyed with copper, zinc, magnesium, silicon, manganese and lithium to increase strength. When aluminum alloy is exposed to air, an anti-oxidant coating will be formed instantly to protect products. Aluminum alloy is one of the lightest metals. The products are widely used in the fields of consumer goods, construction, transportation, electrical consumer goods, beverage cans and bottles, aerospace and other fields.
| Material Grade | 1Series: 1050,1060,1070,1100 etc. 2Series: 2A06,2A10,2A12,2A16,2014,2017,2024,2124,2224,2524 ect. 3Series: 3003,3004,3005,3A21,3105 etc. 4Series: 4032,4043,4047 etc. 5Series: 5052,5754,5083, 5086, 5056,5652, 5154, 5254, 5454 etc. 6Series: 6061,6062,6083 ect. 7Series: 7A01,7A04,7005,7050,7075 etc. 8Series: 8011,8079 etc. |
| Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc. |
| Length | 1-12m,such as 2440mm 2500mm 3000mm or as required |
| Width | 600mm-2300mm or as required |
| Thickness | 0.01-20mm or as required |
| Surface | Mill Finished, Anodized, Embossed, PVC Coated etc |
| Shape | Flat Plate |
| Application | Mainly used insigns, billboards, building exterior decoration, bus body, high-rise buildings and factories wall decoration, kitchen sink, lamp, fan leaves, with pieces of electronic, chemical equipment, sheet metal processing parts, deep drawing or spinning hollowware, welding parts, heat exchangers, bell surface and disk, plate, kitchenware, decorations, reflective devices, ect |
| Trade Terms | EXW,FOB,CIF CFR |
| Loading Port | Shanghai port, Tianjin port, Qindao port |
| Payment terms | 1) 30% deposit by T/T, the balance against copy of B/L by T/T. |
| 2) 30% deposit by T/T, the balance by L/C at sight. | |
| 3) 100% L/C at sight. | |
| MOQ | 1ton |
| Packing Detail | Standard export package or as required. |
| Delivery time | 1.Usually,within10-20days after receiving deposit or LC. 2.According to the order quantity |
| Samples | Free samples are provided but the freight is borne by the buyer |
Product Details

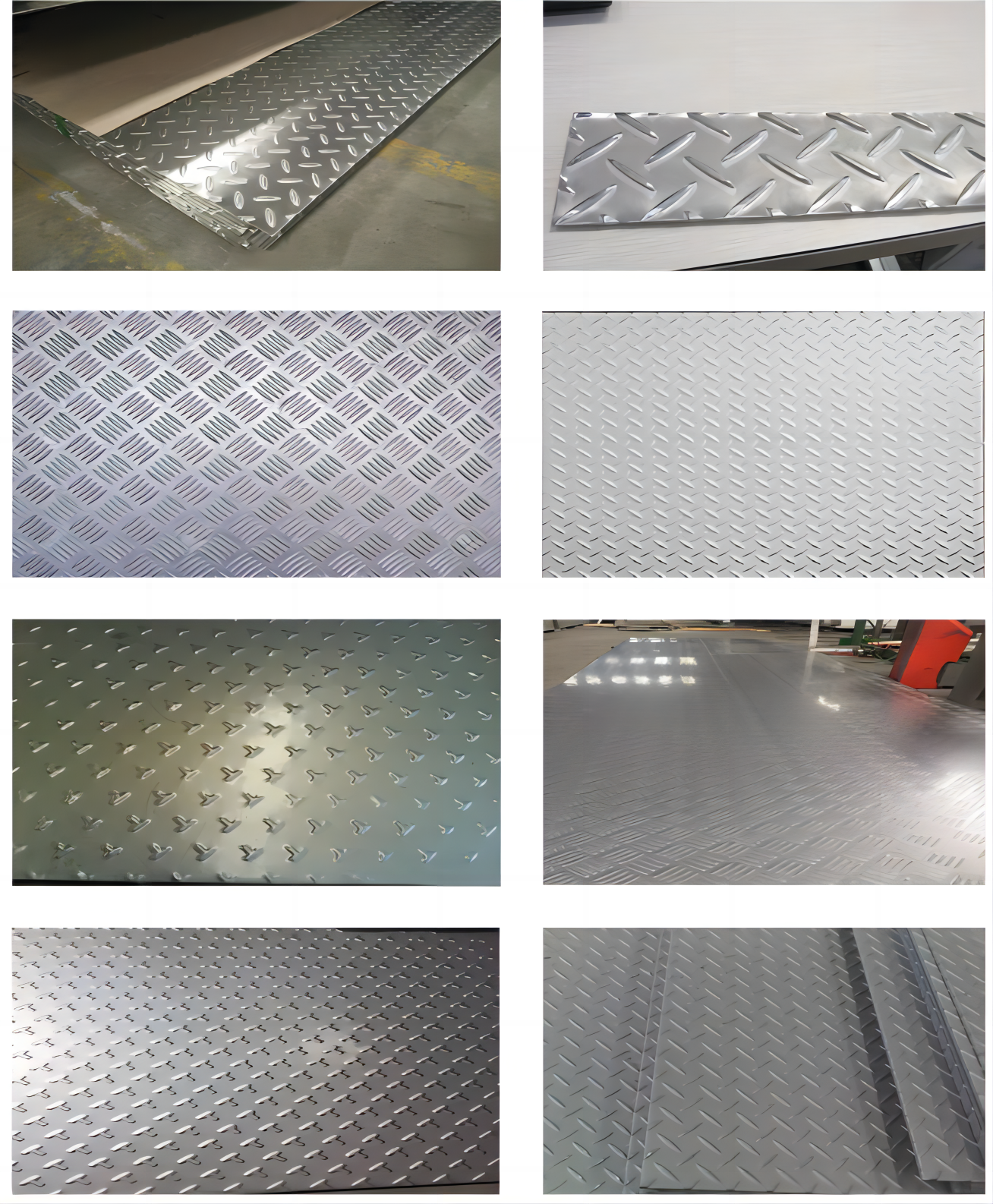

Surface
Mechanical Property
| Alloy | Temper | Tensile Strength (ksi) | Yield Strength (ksi) | Elongation (%) | Tensile Strength | Yield Strength | |
| 0.01-0.05 in | 0.051-0.125 in | ||||||
| 1100 | H12 | 16 | 15 | 4 | 12 | 110.3 | 103.4 |
| H14 | 18 | 17 | 3 | 10 | 124.1 | 117.2 | |
| 3003 | H12 | 19 | 18 | 9 | 11 | 131 | 124.1 |
| H14 | 22 | 21 | 3 | 7 | 151.7 | 144.8 | |
| 3004 | H32 | 31 | 25 | 6 | 15 | 213.7 | 172.4 |
| H34 | 35 | 29 | 5 | 10 | 241.3 | 199.9 | |
| 3005 | H12 | 26 | 24 | 5 | 13 | 179.3 | 165.5 |
| H14 | 29 | 28 | 4 | 9 | 199.9 | 193.1 | |
| 5005 | H12 | 20 | 19 | 5 | 9 | 137.9 | 131 |
| H14 | 23 | 22 | 4 | 7 | 158.6 | 151.7 | |
| 5052 | H32 | 33 | 28 | 7 | 10 | 227.5 | 193.1 |
| H34 | 38 | 31 | 6 | 8 | 262 | 213.7 | |
| 5056 | O | 42 | 22 | 23 | 24 | 289.6 | 151.7 |
| H38 | 60 | 50 | 6 | 13 | 413.7 | 344.7 | |
| 6061 | T4 | 35 | 21 | 22 | 24 | 241.3 | 144.8 |
| T6 | 45 | 40 | 12 | 17 | 310.3 | 275.8 | |
| 7075 | O | 33 | 15 | 16 | 18 | 227.5 | 103.4 |
| T6 | 83 | 73 | 11 | 12 | 572.3 | 503.3 | |
Application

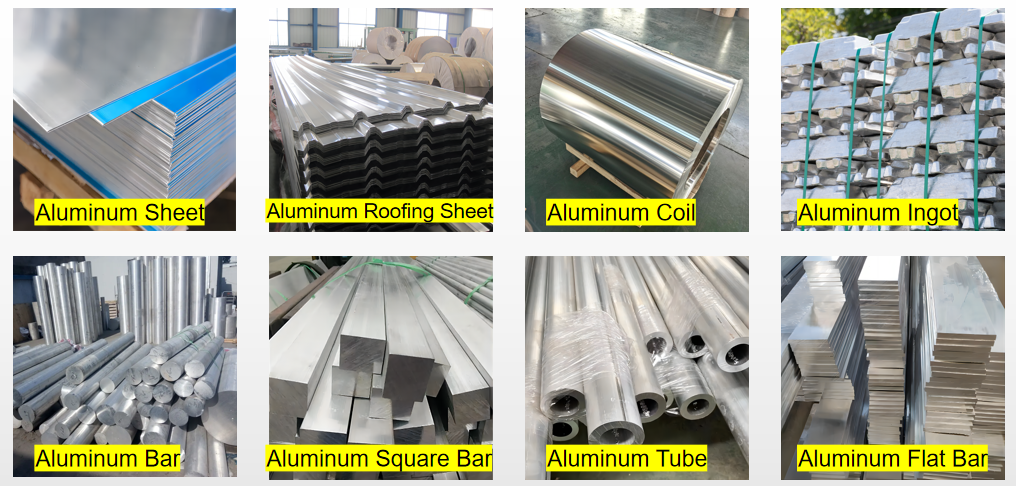

Recommend Products

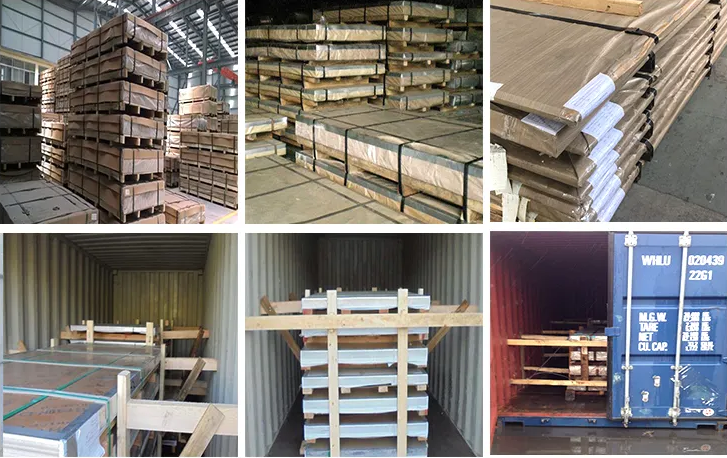

Packing & Shipping
Certification
FAQ
Q:How do you control quality?
A:Mill test certification is supplied with shipment,third party
inspection is avaliable.
Q:What are the advantages of your company?
A:We have many professionals,technical personnel,more competitive
prices and best after-sales service than other steel companies.
Q:How many coutries you already exported?
A:Exported to more than 50 countries mainly from
America,,UK,Kuwait,Egypt,Turkey,Jordan,India,etc
|
