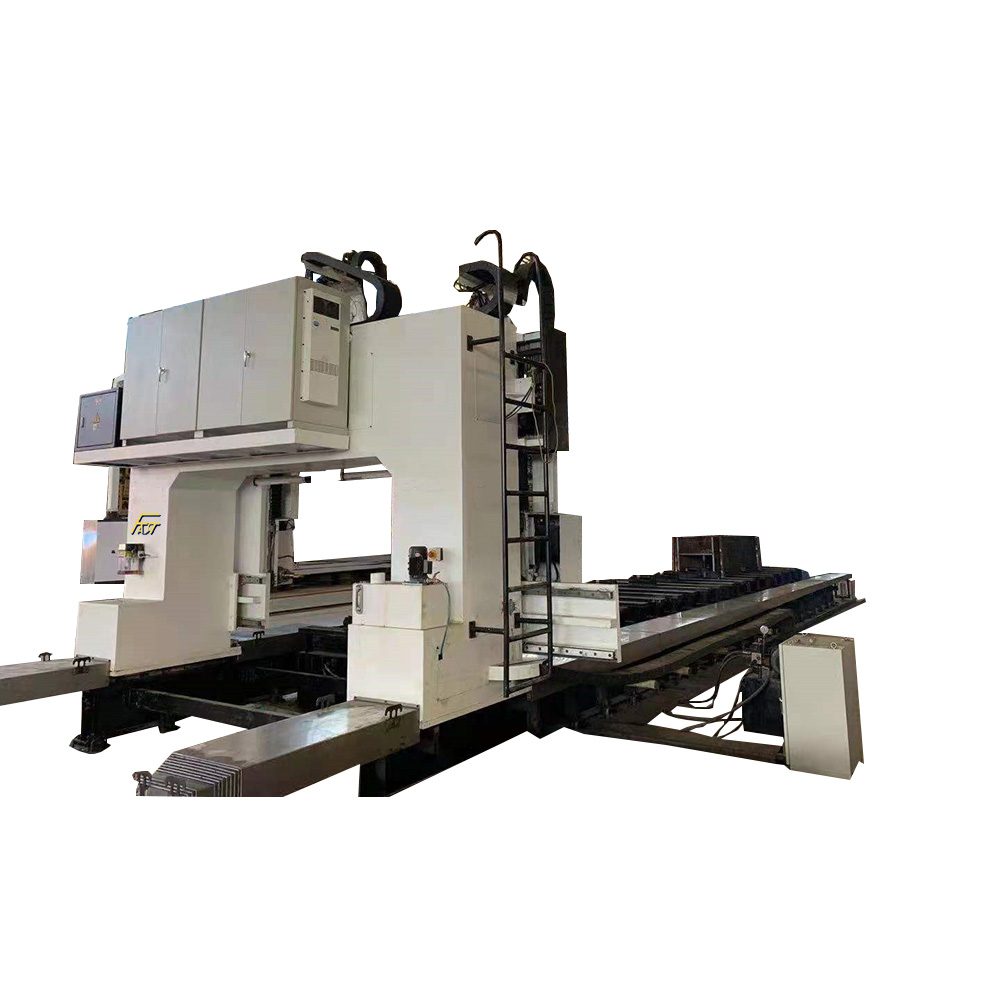

Customized High-Speed Beam Drilling Machine Gantry Movable CNC Drilling &Milling Machine

Customized High-speed Beam Drilling Machine Gantry Movable CNC Drilling &Milling Machine

APPLICATION

This machine is mainly used for drilling and milling of groove beam, H-beam and other structural parts. Three sides can be processed simultaneously, and one side can be processed.

If requested, tapping can be added and a knife library is also available.

MODEL EXPLAINATION

SDM---Section Steel Drilling and Milling

360: Width of section steel is 360mm

200:Height of section steel is 200mm

10000: Section steel length 10000mm

TECHNICAL DATA

SPECIFICATION		UNIT	PARAMETERS
Worktable	Effective table size	mm	360×10000
	Can pass workpiece width	mm	560
	Load capacity	t	10
Upper power head unit	Spindle specification		BT40 precision high speed spindle
	Tool cooling mode		Central spray internal cooling + gas-liquid external cooling
	Loosing tool method		Pneumatic loosing tool
	Spindle servo motor power	kW	15
	Range of spindle speed	r/min	0-3000
Left and right power head units	Spindle specification		BT40 precision high speed spindle
	Tool cooling mode		BT40 precision high speed spindle
	Loosing tool method		Pneumatic loosing tool
	Spindle servo motor power	kW	15
	Range of spindle speed	r/min	0-3000
Processing capability	Drilling	mm	φ30 Carbide drill
	Drilling	mm	φ40 twist drill
	Milling	mm	φ30 milling tool
	Tapping		M20(Optional Item)
	Automatic tool changer		3 tool manazine, each magazine has 4 tools (optional)
CNC axes number and servo motor	CNC Axes		8 axes(Withour tool hoder) 12 axes (With auto tool holder)
	Spindle servo motor power	kW	15×3
	The spindle feeds the servo motor power	kW	2KW×3 (With precision reducer)
	Gantry and power head move servo motor power	kW	2KW×5 (With precision reducer)
	Tool magazion servo motor power	kW	0.6KW One rotary tool magazine is used, 2 inline tool magazine are not used
Controlling system	Controlling system		Computer+PLC (Without Tapping)
Controlling system	Controlling system		tandard CNC system (with tapping)
Cooling system	Cooling method		(See power head unit description)
Cooling system	Air source pressure (supplied by user)	mPa	0.6
Chip removal system	Power of a screw chip drainer	kW	1.1(Optional Item)
Machine total power		kW	about 53
Total weight		T	about 15
Outline demension	LWH	mm	About 11000×2000×3000
