Automobile Chips LM51501QRUMTQ1 Wide VIN Automotive Low IQ Boost Controller QFN16
Product Description Of LM51501QRUMTQ1
LM51501QRUMTQ1 is a wide input range automatic boost controller.
The device can be used to maintain a stable output voltage during
automotive cranking from a vehicle battery or from a backup
battery.
LM51501QRUMTQ1 switching frequency is programmed by a resistor from
220 kHz to 2.3 MHz. Fast switching (≥ 2.2 MHz) minimizes AM band
interference and allows for a small solution size and fast
transient response.
LM51501QRUMTQ1 operates in low IQ standby mode when the input or
output voltage is above the preset standby thresholds and
automatically wakes up when the output voltage drops below the
preset wake-up threshold.
Specification Of LM51501QRUMTQ1
Part Number | LM51501QRUMTQ1 |
Function | Step-Up |
Output Configuration | Positive |
Topology | Boost |
Output Type | Adjustable |
Number of Outputs | 1 |
Voltage - Input (Min) | 1.5V |
Voltage - Input (Max) | 42V |
Voltage - Output (Min/Fixed) | 5V |
Voltage - Output (Max) | 42V |
Frequency - Switching | 220kHz ~ 2.3MHz |
Synchronous Rectifier | No |
Operating Temperature | -40°C ~ 150°C (TJ) |
Mounting Type | Surface Mount |
Package / Case | 16-WQFN Exposed Pad |
Supplier Device Package | 16-WQFN (4x4) |
Features Of LM51501QRUMTQ1
Applications Of LM51501QRUMTQ1

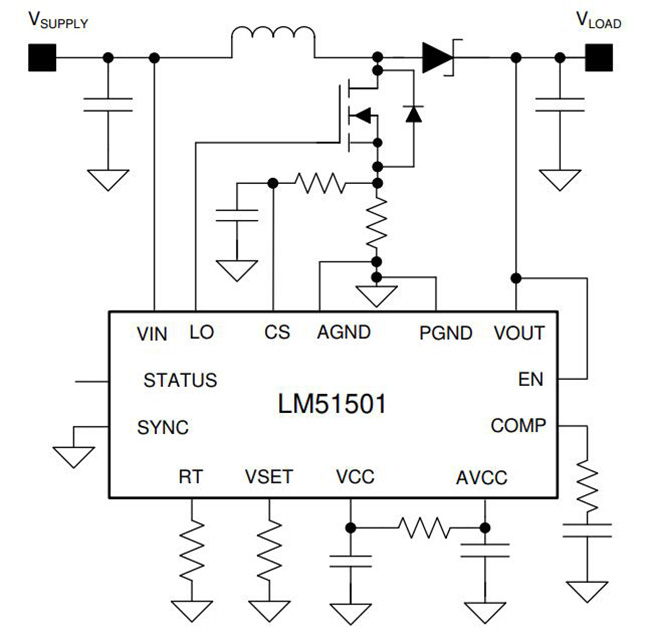

Typical Application Circuit Of LM51501QRUMTQ1

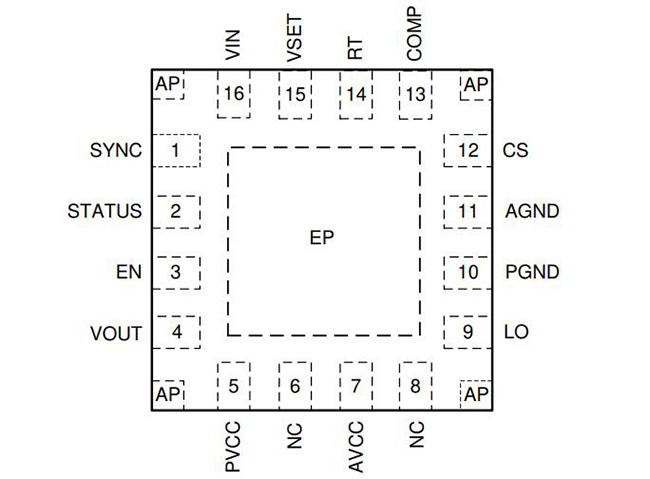

Pin Configuration Of LM51501QRUMTQ1
