| Categories | Grip Strut Safety Grating |
|---|---|
| Brand Name: | VELP |
| Model Number: | 06 |
| Certification: | SGS |
| Place of Origin: | Hebei, China. |
| MOQ: | 100 pieces |
| Price: | USD10-USD20/SQM |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20000pieces per month |
| Delivery Time: | 8-15 workdays |
| Packaging Details: | safety belts + pvc film + iron pallet |

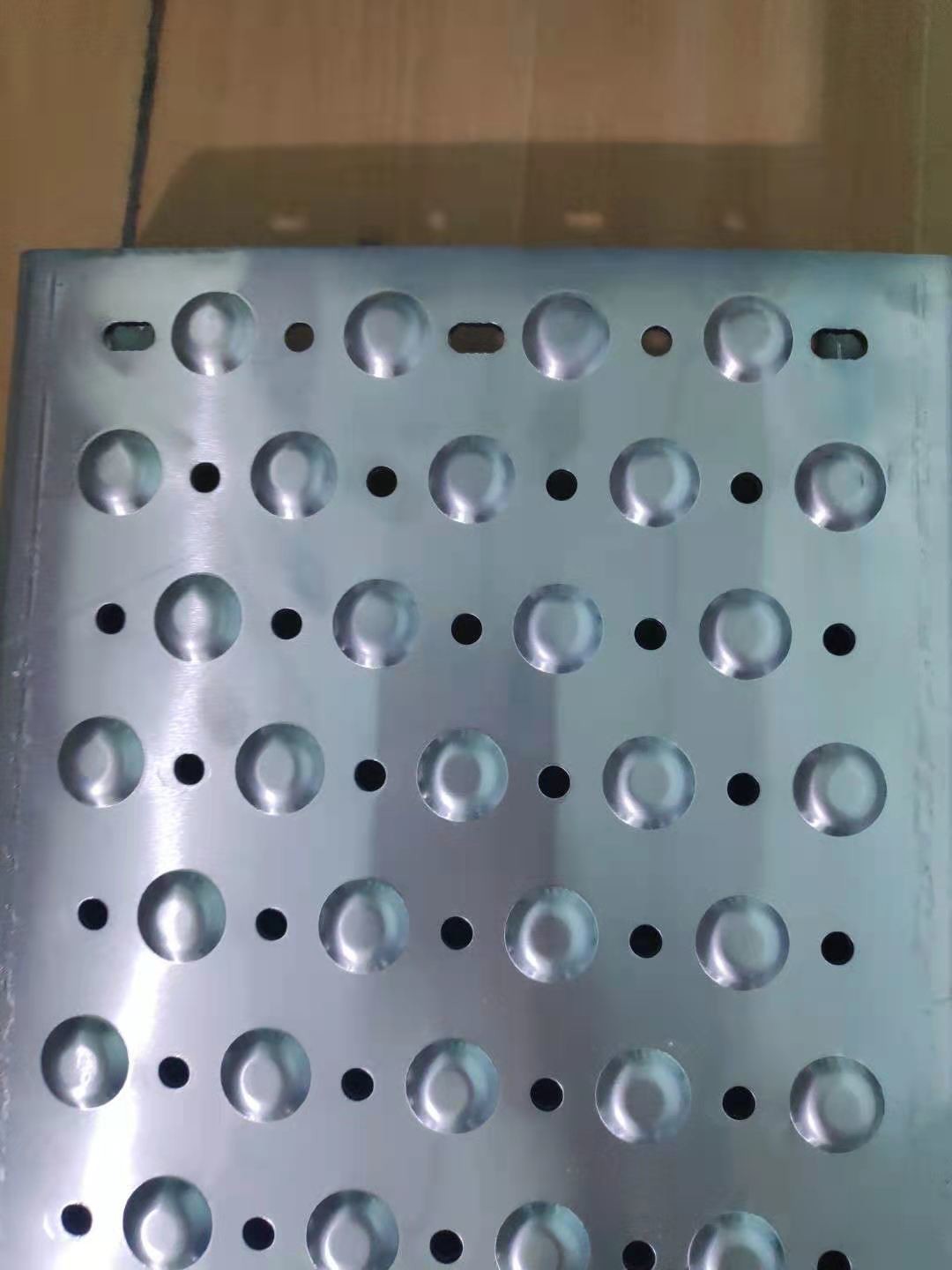

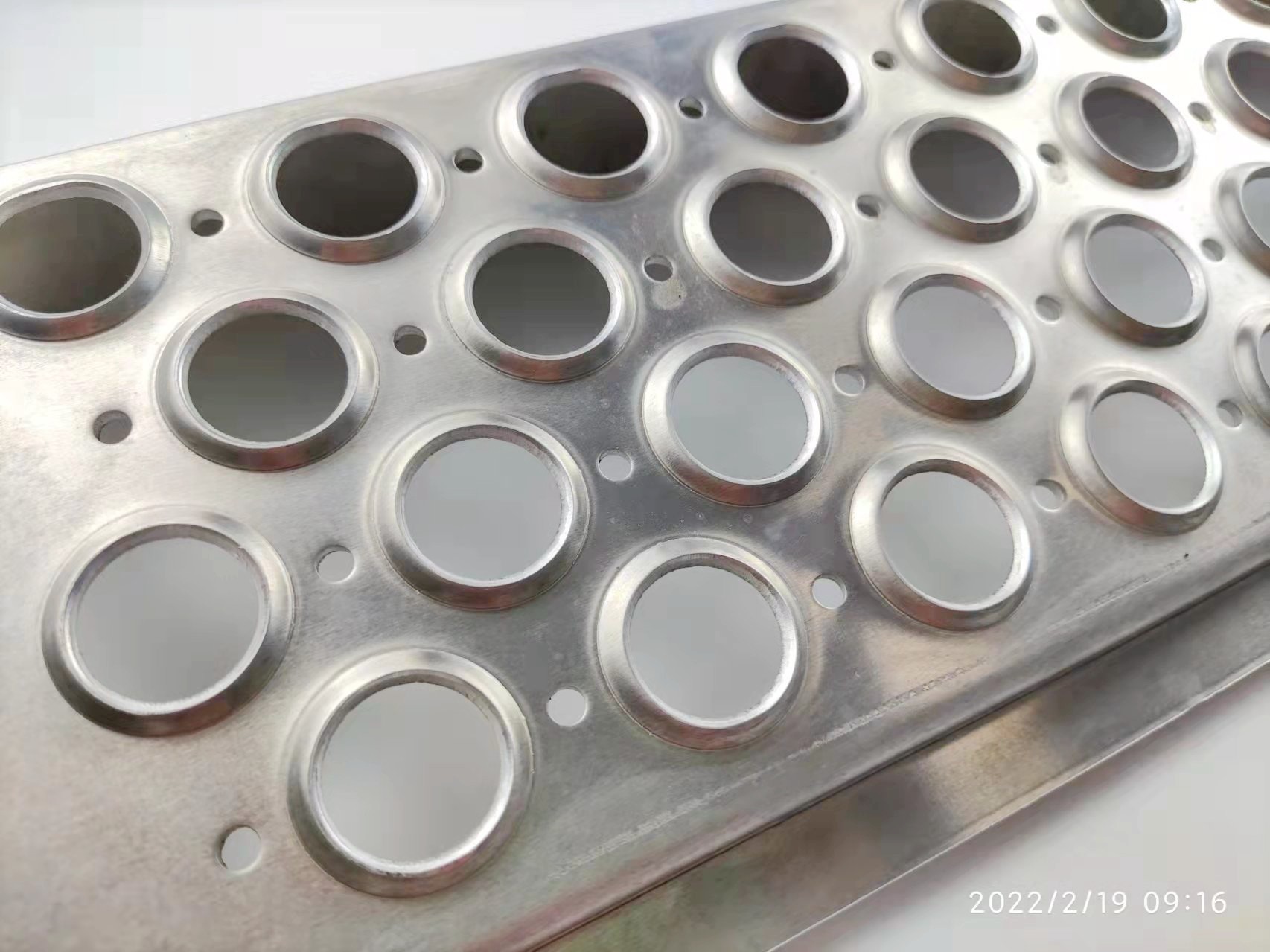

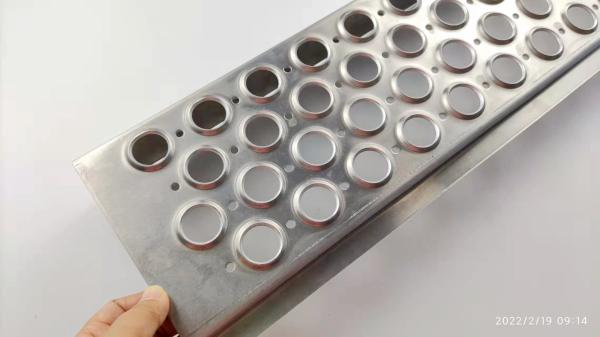

| Product name: | Raised round hole Roof Safety Walkway Steel Grating Industrial walkways |
| Material: | hot dipped galvanized iron steel |
| Feature: | Corrosion Resistance,Beautiful,Acid-resisting,Easy install and long life |
| Thickness: | 1.5mm~6mm |
| Technique: | Perforated |
| Color: | Silver |
| Hole shape: | Round |
| Height: | 50mm |
| Company Info. |
| Anping Velp Wire Mesh Products Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
GRIP STRUT has a slip-resistant diamond surface that is ideal for safety applications where mud, ice, snow, oil and detergents can create hazardous walking conditions. In addition to low material cost and nominal installation cost, GRIPSTRUT provides long-term value with rust-resistant materials and properties.
Plank Grating is a one-piece construction product that is lightweight and has aggressive, highly slip-resistant surfaces for added safety. In addition to low material cost and nominal installation cost, Plank Grating provides long-term value with rust-resistant materials and finishes.
Product name | Raised round hole Roof Safety Walkway Steel Grating Industrial walkways |
Material | Aluminium, hot dipped galvanized iron steel |
Thickness | 2.5mm 3mm 3.5mm 4mm 4.5mm 5mm |
Hole shape | Diamond, round, |
Bend depth | 25mm 30mm 40mm 50mm 75mm or customized |
Application | 1.Interior/exterior application |
2.Loading, span and support requirements | |
3.Traffic requirements (hand cart,ADA, pedestrian, etc.) | |
Features | 1. Can Be Formed Easily |
2. Can Be Paint Or Polished | |
3. Easy Installation | |
4. Attractive Appearance | |
5.Wide Range Of Thicknesses Available | |
6. Largest Selection Of Hole Size Patterns And Configurations | |
7.Durable | |
Package | 1. On Pallet With Waterproof Cloth |
2. In Wooden Case With Waterproof Paper | |
3.In Carton Box | |
4.In Roll With Woven Bag | |
5. In Bulk Or In Bundle | |
SPECIAL | Requirements such as fabrication, notching, cut-outs, Stair Treads (size, and Nosing type if desired), non-standard tolerances,etc. |
Raised round hole Roof Safety Walkway Steel Grating Industrial walkways Features
Light, easy to handle planks make installation easy.
Versatility due to multiple finish options and a variety of standard configurations.
Large open area allows debris to drain away.
Walkways meet OSHA requirements for toeboards on elevated structures.
Resilient surface lessens worker fatigue.
High strength-to-weight ratio.
In catwalks,
Safety gratings serve as lightweight and economical flooring components with minimal maintenance requirements. They improve safety conditions for employees using the walkway by mitigating the risk of slipping due to the presence of ice, moisture, and oil accumulation. In large facilities, they facilitate better lighting conditions as the holes in the individual grating sections allow light to pass through relatively unobstructed.
In rooftop walkways,
The exterior walking surfaces are susceptible to the buildup of ice, chemical film, mud, and other slick substances. The design of safety gratings allows these compounds—in solid, liquid, and gaseous form—to easily fall through the holes, facilitating cleaning and maintenance operations. This quality makes it easier to establish well-defined and safe walking paths for workers.
In pedestrian walkways,
Safety gratings help create safe, temporary and permanent walking paths in a wide range of public spaces, such as streets, gardens, and ports. The perforated or expanded metal components facilitate the ventilation of air and water, which ensures safer conditions for both walking and vehicle-assisted pedestrians, including those with high heels, wheelchairs, strollers, scooters, and skateboards.

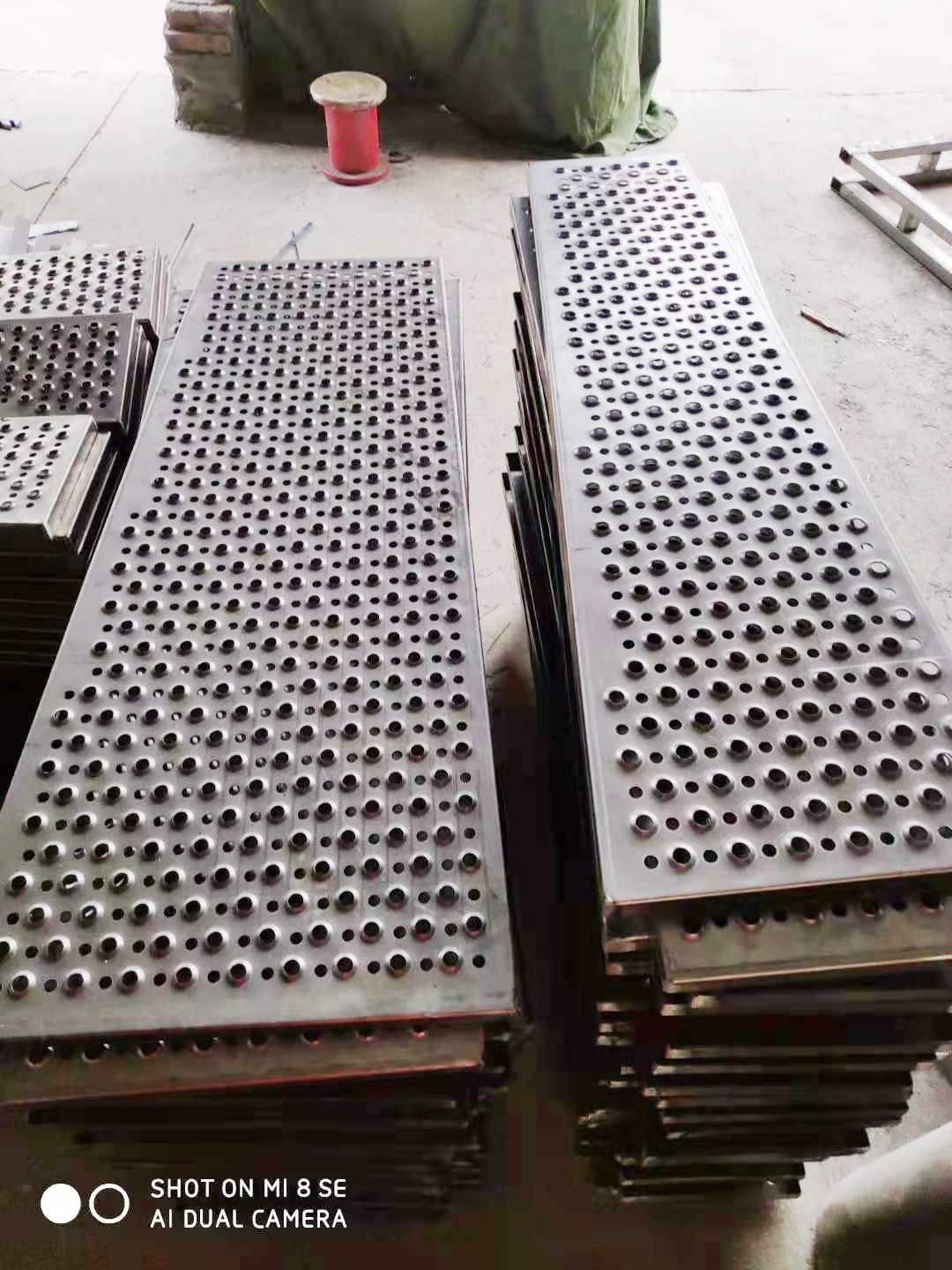

Iron pallet+satefy belts+PVC films.
It can be customized.
