| Brand Name: | HRT |
| Model Number: | A1002H-NP |
| Certification: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Place of Origin: | Dongguan, China(mainland) |
| MOQ: | 5000 pcs |
| Price: | negotiated |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 28 million pcs per month |
| Delivery Time: | 5 to 8 working days after payment checked |
| Packaging Details: | Reel, Tube(Pipe), Tape, Bag or as required. |
| Category: | Wire housing |
| Suitable terminal: | A1002T |
| Material: | Nylon66 UL94V-0 |
| Wire range: | AWG28# to 32# |
| Gender: | Female |
| Positions: | 2 to 30 pins(circuits) |
1, Product's specification details
| Basic size information | |||
| Color | White | ||
| Pitch | 1.0mm | ||
| Housing Material | Nylon66 UL94V-0 | ||
| Application | Signal, wire to board | ||
| Wire Insulation Diameter | 0.80mm max. | ||
| Terminal processing method | E-stamping before tin-plated or gold-flash | ||
| Electrical properties | |||
| Current Rating | 1A AC, DC | ||
| Voltage Rating | 50V AC, DC | ||
| Contact Resistance | 30mΩ Max | ||
| Insulation Resistance | 100mΩ min | ||
| Withstanding Voltage | 500V AC/minute | ||
| Mechanical properties | |||
| Temperature range | -25℃ to 85 ℃ | ||
| Terminal Insertion Force | 0.50kgf (Max.) | ||
| Terminal/Housing Retention Force | 0.50kgf (Min.) | ||
| Pin Retention Force | 0.50kgf (Min.) | ||
| Other information please kindly check the following picture. | |||

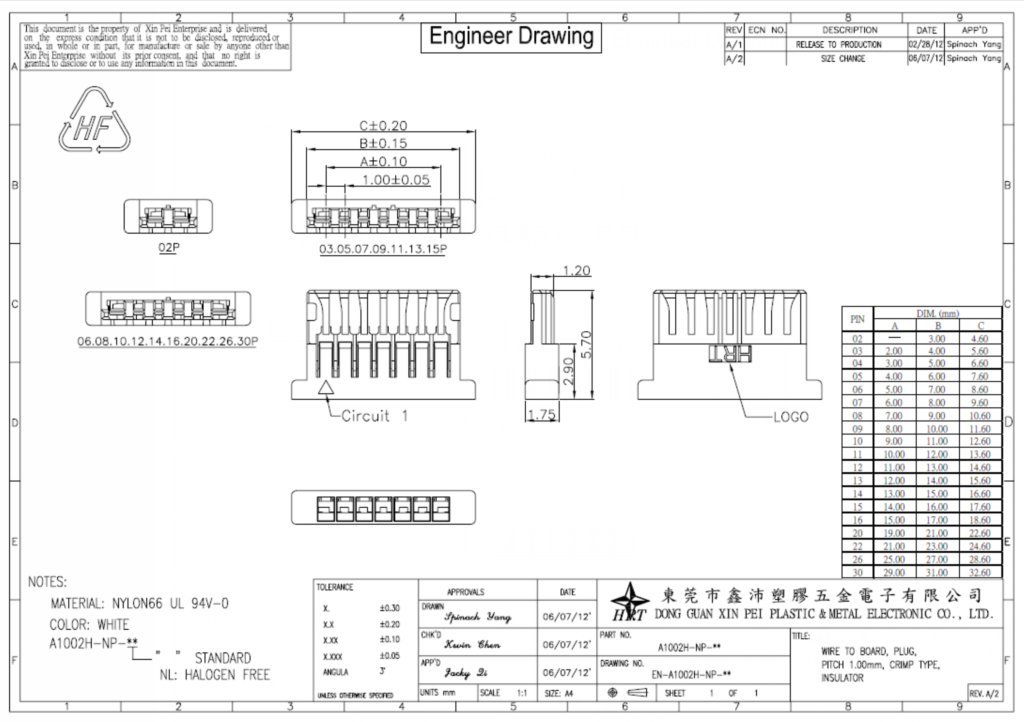

2, Relevant engineering drawing and test report
The next attachment is detailed product file for your reference, it will be helpful to you.
3, Main testing report
3. Ratings & Applicable Wires
| Item | Standard | ||
| Rated Voltage (Max.) | 50V AC/DC | Insulation O.D. 0.80mm (Max.) | |
| Rated Current (Max.) And Applicable Wires | AWG#28 | 1A AC/DC | |
| AWG#30 | 1A AC/DC | ||
| AWG#32 | 0.5A AC/DC | ||
| Ambient Temperature Range | -25℃ ~ +85℃* | ||
*: Including terminal temperature rise
4. Electrical Performance
| Test Description | Procedure | Requirement | |
| 4-1 | Contact Resistance | Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) | 20mΩ (Max.) |
| 4-2 | Insulation Resistance | Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) | 100MΩ (Min.) |
| 4-3 | Dielectric Withstanding Voltage | Mate connectors, apply 250V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) | No Breakdown. |
| 4-4 | Contact Resistance on Crimped Portion | Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA. | 5mΩ (Max.) |
5. Mechanical Performance
| Test Description | Procedure | Requirement | ||
| 5-1 | Actuator Insertion & Withdrawal Force | Insert and withdraw connectors at the speed rate of 25±3mm / minute. | Refer to paragraph 7 | |
| 5-2 | Crimping Pull Out Force | Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) | AWG#28 | 1.0kgf (Min) |
| AWG#30 | 0.8kgf (Min) | |||
| AWG#32 | 0.5kgf (Min) | |||
| 5-3 | Terminal Insertion Force. | Insert the crimped terminal into the housing. | 0.50kgf (Max.) | |
| 5-4 | Terminal/Housing Retention Force. | Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. | 0.50kgf (Min.) | |
| 5-5 | Pin Retention Force | Apply axial push force at the speed rate of 25±3mm / minute | 0.50kgf (Min.) | |
| 5-6 | Durability | When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. | Contact Resistance 40mΩ (Max.) | |
| 5-7 | Vibration | Amplitude: 1.5mm P-P Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes. (Based upon MIL-STD-202 Method 201A) | Appearance No Damage. Contact Resistance 40mΩ (Max.) Discontinuity 1 μsec.(Max.) | |
| 5-8 | Physical Shock | 490m/s²｛50G｝,3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A) | ||
|
