| Categories | Circuit Board Wire Connectors |
|---|---|
| Brand Name: | HRT |
| Model Number: | A1003H-2XNP |
| Certification: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Place of Origin: | Dongguan, China(mainland) |
| MOQ: | 5000pcs |
| Price: | USD0.001 to 0.1 per pcs |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 300,000K pcs per month |
| Delivery Time: | 5 to 8 working days after payment checked |
| Packaging Details: | Bags and carton or customized term |
| Category: | wire housing |
| Material: | Nylon66 |
| Flammability: | 94V-0 |
| Rows: | dual/double |
| Gender: | Receptacle |
| Application: | signal, Wire-to-Board |
1, The specification including size information, electrical and mechanical properties as below excel.
| Basic size information | |||
| Color | white | ||
| Pitch | 1.0mm | ||
| Wire range | AWG28# to 32# | ||
| Lock to Mating Part | with | ||
| Circuits(Positions) | 2*8/2*10/2*15/2*16/2*20/2*25 | ||
| Electrical properties | |||
| Current Rating | 1A AC, DC | ||
| Voltage Rating | 50V AC, DC | ||
| Contact Resistance | 30mΩ Max | ||
| Insulation Resistance | 100mΩ | ||
| Withstanding Voltage | 500V AC/minute | ||
| Mechanical properties | |||
| Temperature range | -25℃ to 85 ℃ | ||
| Other data is in following report picture | |||
2, Related drawing and report for parts
The detailed engineering drawing will be useful for you to get right housing or terminals. Welcome you to
choose our accurate equivalents.
3. Ratings & Applicable Wires
| Item | Standard | ||
| Rated Voltage (Max.) | 50V AC/DC | Insulation O.D. 0.80mm (Max.) | |
| Rated Current (Max.) And Applicable Wires | AWG#28 | 1A AC/DC | |
| AWG#30 | 1A AC/DC | ||
| AWG#32 | 0.8A AC/DC | ||
| Ambient Temperature Range | -25℃ ~ +85℃* | ||
*: Including terminal temperature rise
4. Electrical Performance
| Test Description | Procedure | Requirement | |
| 4-1 | Contact Resistance | Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) | 20mΩ (Max.) |
| 4-2 | Insulation Resistance | Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) | 100MΩ (Min.) |
| 4-3 | Dielectric Withstanding Voltage | Mate connectors, apply 250V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) | No Breakdown. |
| 4-4 | Contact Resistance on Crimped Portion | Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA. | 5mΩ (Max.) |
5. Mechanical Performance
| Test Description | Procedure | Requirement | ||
| 5-1 | Actuator Insertion & Withdrawal Force | Insert and withdraw connectors at the speed rate of 25±3mm / minute. | Refer to paragraph 7 | |
| 5-2 | Crimping Pull Out Force | Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) | AWG#28 | 1.0kgf (Min) |
| AWG#30 | 0.5kgf (Min) | |||
| AWG#32 | 0.3kgf (Min) | |||
| 5-3 | Terminal Insertion Force. | Insert the crimped terminal into the housing. | 0.50kgf (Max.) | |
| 5-4 | Terminal/Housing Retention Force. | Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. | 0.50kgf (Min.) | |
| 5-5 | Pin Retention Force | Apply axial push force at the speed rate of 25±3mm / minute | 0.30kgf (Min.) | |
| 5-6 | Durability | When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. | Contact Resistance 40mΩ (Max.) | |
| 5-7 | Vibration | Amplitude: 1.5mm P-P Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes. (Based upon MIL-STD-202 Method 201A) | Appearance No Damage. Contact Resistance 40mΩ (Max.) Discontinuity 1 μsec.(Max.) | |
| 5-8 | Physical Shock | 490m/s²｛50G｝,3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A) | ||

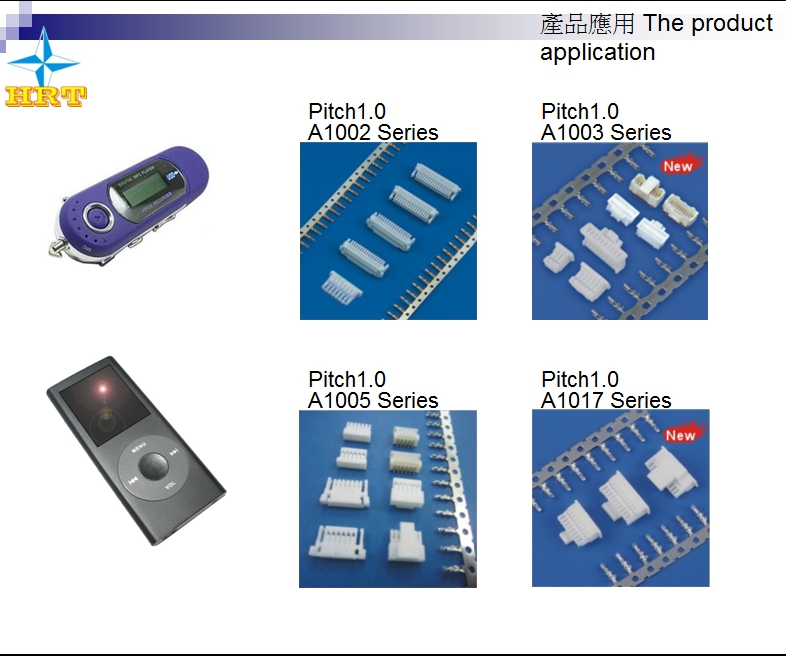

3, Applicated fied of this parts
Please kindly check the following picture, you can know the appliance of this part.
4, Our product family
The attached picture is our main product for your reference, wish you can get what you need. We are preparing to offer you the professional service, just come to here then sending your inquiry.
|
