ZIKUN GPON EPON ONU ZC-521T XPON ONT CATV 2POTS 4GE 6 External Antenna

Categories GPON ONU
Brand Name: ZIKUN
Model Number: ZC-521T
MOQ: 1
Price: 59$
Payment Terms: T/T
Delivery Time: 5-15 work days
Optical connector: SC/APC
User Network Interface: 4GE+2POTS+2.4G&5G WIFI+1CATV
Manage: OMCI/OAM/TR069/Web UI
WLAN: 2 × 2 MIMO (2.4G);4 × 4 MIMO (5G)
Antenna gain: 5 dBi ,6* external antenna
Air interface rate: 300 Mbit/s (2.4G); 1733 Mbit/s(5G)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

ZIKUN GPON EPON ONU ZC-521T XPON ONT CATV 2POTS 4GE 6 External Antenna

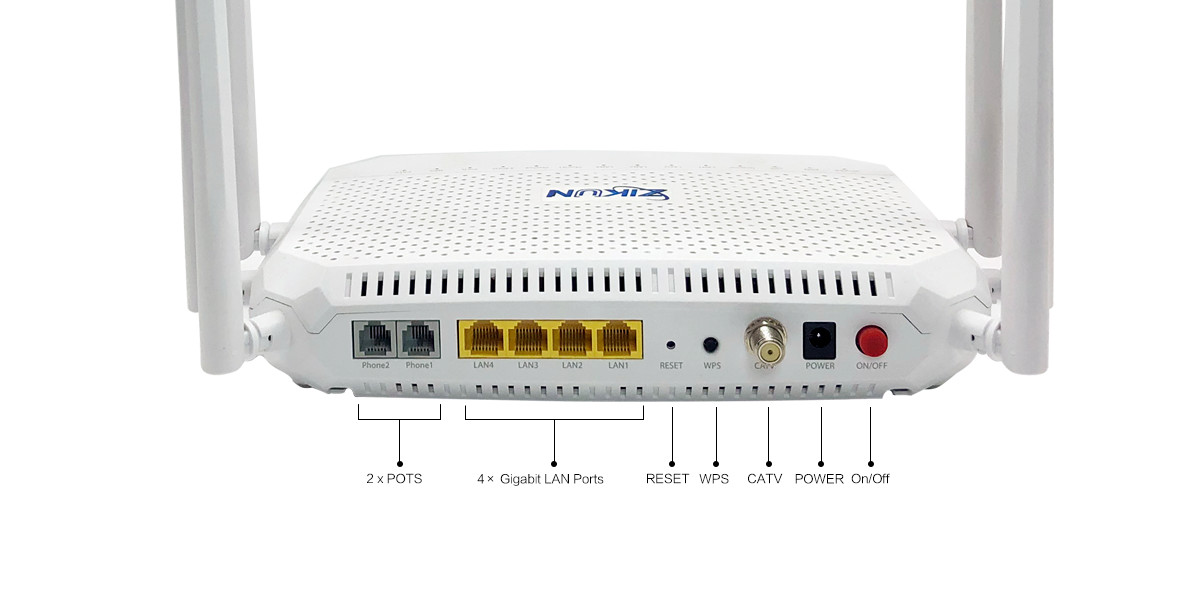

ZIKUN ZC-521T XPON ONU CATV CATV 4GE DUAL-BAND WiFi ONT​


ZC-521T is dual-mode(XPON)ONT designed for delivery of telephone services, IP-based data services, Voice(VoIP) services,IPTV video services, and CATV video services to single-family home and small office/home office (SOHO) users.



Main Features

• Auto adaptive EPON & GPON.

• AC2100 Dualband Wi-Fi 5: delivering both 1733Mbps at 5GHz and 300 Mbps at 2.4 GHz concurrently.

• 6* 5dBi high gain antenna

• Provides a CATV port for instant viewing of live TV

• 4* GigabitLAN port is provided to ensure ultra-high speed data transmission.

• Upstream rate up to 1.25Gbps, downstream rate up to 2.5Gbps and transmission distance up to 20Km.

• Supports both IPV6 and IPV4/IPV6 dual stacks

• Extensive compatibility with lots of OLT brands worldwide.

• Supports for OMCI and TR069 remote management.


Model
ZC-521T New
Optical port
GPON/EPON mode adaptive
ITU-T G.984 GPON standards,Support for backward compatibility with
IEEE 802.3ah EPON
Single mode fiber
Optical connector
SC/APC
Receiving Sensitivity
-28dBm
Overload optical power
-8 dBm
Transmitting Optical Power
0.5~5dBm
Transmit rate
GPON:2.488Gbps downstream; 1.244Gbps upstream
EPON:1.25Gbps downstream;1.25Gbps upstream
Wavelength
Receiving(DOWN): 1490nm;Transmitting(UP): 1310nm
Authentication
consistent with the SN or Password authentication defined in G.984.3;
LOID authentication;MAC authentication
AGC
-9~+2dBm
