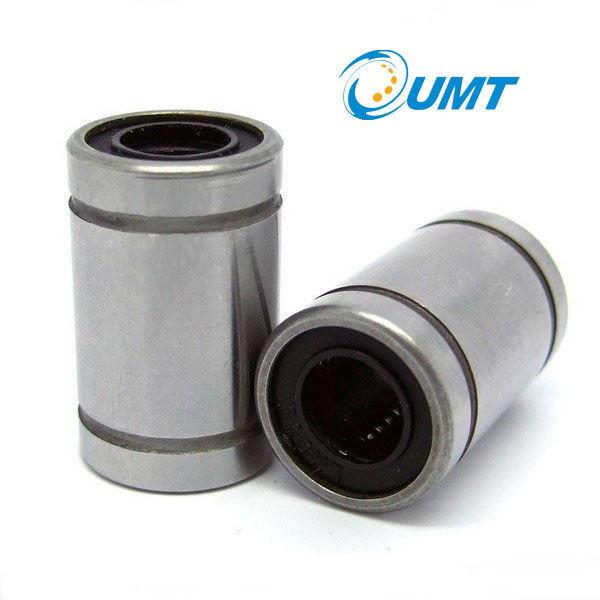

LM12UU Z2 Z3 linear Stainless Steel Ball Bearings Width 30mm

Quick Detail:

1.Type: Linear

2. Brand Name: UMT, NTN, NSK, KOYO, TIMKEN, NACHI

3. Precision Rating: ABEC-1/ P0, ABEC-3/P6, ABEC-5/P5, ABEC-7/P4

4. Model Number: LM12UU

5. Place of Origin: Japan

6. Inside Diameter: 12mm

7. Outside Diameter: 21mm

8. Width: 30mm

9. Weight: 31.5g

10. Number of Ball Circuit: 4

11. Dynamic load rating Cr: 412N

12. Static load rating Cor: 598N

13. Material of bearing: Chrome steel, Stainless steel

Description:

Linear Bearings is a low-cost production of linear motion system for unlimited use with stroke and the

cylinder axis. Our linear bearing is a high precision bushing which offers unlimited travel distance with

minimum frictional resistance.

Specifications:

Applications:

With high performance and a wide range of types, our bearings being used in many fields such as

machine tools, industrial machines, electrical equipment, food processing machines, and optical and

measuring equipment.

Competitive Advantage:

1. Quality level: reach the same level as the Japanese and European bearings

2. Tolerance level: ABEC-1 (P0), ABEC-3 (P6)

3. Less coefficient of friction

4. High limiting speed

5. Large size range

6. variations of structure

Shenzhen UMT Bearing Co.,Ltd
1.More than 200 workers, 60,000m2 workshop area, 5 production lines
2.ISO 9001:2000 certificated,
3.Quality standard: P0, P6, P5, P4, ABEC-1, ABEC-3, ABEC-5,ABEC-7
4.Material:GCr15(AISI51200),Stainless steel,Ceramic,Carbon Steel
5.All goods examined before delivery by 9 times test by 20 QC staff
6.Prompt Reply Within 12 Hours
7.Sample time within 2-3 days after confirmed
8.15 years of OEM and after market service experience
9.Application for almost 60 industries including railway, automobile, metallurgy, heavy industry, petrol-chemical, military and other industries.
10.Market : North & South America, Southeast Asia, Europe, Australia
