AC 3 Phase Synchronous FPT Diesel Engine Generator Set Prime Power 80KW / 100KVA

Categories FPT Diesel Generator
Brand Name: GPRO
Model Number: GP110FPS
Certification: ISO/CE / CIQ
Place of Origin: WUXI, CHINA
MOQ: 1 set
Price: set
Supply Ability: 500 sets / Month
Delivery Time: 25 days
Packaging Details: poly wooden case or plastic poly
Rated power: 80KW /100KVA
Frequency: 50HZ / 60HZ
Current: 144A
Voltage: 220/380V, 230V/400V, 240V/415V
Engine: Euro Italy FPT/ (ITALY)
Controller: Smartgen/ DeepSea/ Comap
MCCB: Delixi/ ABB
Warranty: 1 year or 1000 hours
Alternator: Stafmord / Marathon / Meccalte
Fuel tank: Base fuel tank keep running 8 hours
Battery: 24 V maintenance free battery
Weight: 2600KG
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

AC 3 Phase Synchronous FPT Diesel Engine Generator Set Prime Power 80KW / 100KVA

AC 3 Phase Synchronous FPT Diesel Engine Generator Set Prime Power 80KW / 100KVA

FPT Diesel generator 100kva specification:

Genset ModelGP110FPS
Prime Power80KW/100KVA
Standby Power88KW/110KVA
Phase Number3
Power Factor0.8
Rated Voltage230/400V
Frequency50 HZ
Rated Current150A
Genset StructureSILENT
Noise Level64 dBA@7m
Dimension3200x1120x1500MM
Net Weight1600KG
Engine ModelFPT FPT/NEF67Sm1
Engine Features4-cylinder,4 stroke,water cooled,Turbo
Bore * Stroke99mm × 104mm
Displacement6.7L
12-hour Power(kw)121/1500
Fuel Consumption28L/hour
Compression Ratio17:1
Starting ModeElectric Starter 24V
Fuel Tank Capacity250L
Alternator ModelMECC / ECP34-2S/4
Rated Power80KW/100KVA
Max Power88KW/110KVA
Excitation Modebrushless self-excited
Insulation ClassH
Protection ClassIP23
Construction TypeSAE Disc-coupling

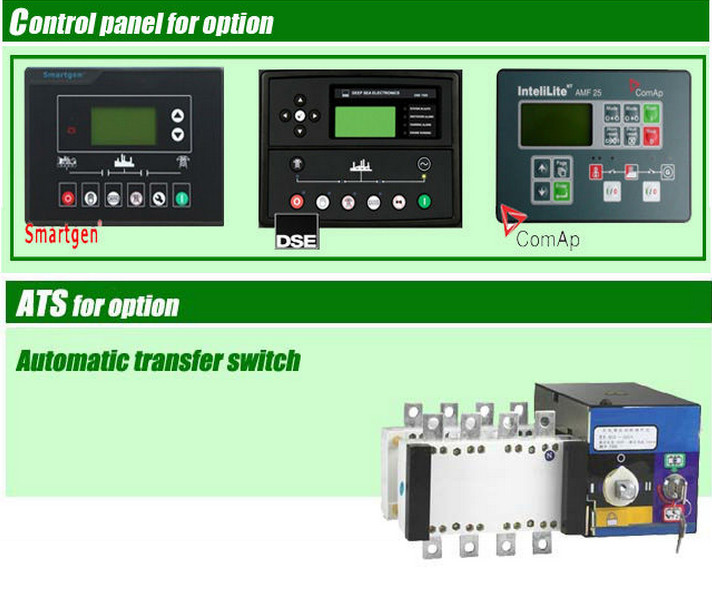

Controler panel
Smartgen 6120intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator



Description:

1. Power Range: 100kva

2. Engine: Original Italy Fiat FPT diesel engine

3. Alternator: Italy Meccalte alternator

4. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing, etc.

5. ATS is optional

6. Type: Soundproof type

7. Color: Can be customized

Applications:

1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.

6. Standby power or main power, indoor or outdoor using.


Competitive Advantage:

1. Full power range.

2. All genuine engines and alternators.

3. The components we use are in high quality.

4. Fast delivery. Big quantity of Engines in stock.

5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.

6. Use high standard of sponge to make soundproof.

7. The canopy design is user friendly, and easy for maintenance.

8. Pre and after sales service is provided.

9. Fast response for the inquires, service, etc.
