| Categories | Large Format UV Printer |
|---|---|
| Brand Name: | Maxwave |
| Model Number: | MW-CD200W |
| Certification: | CE FCC SGS |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 20000/Per Year |
| Delivery Time: | 5-8 working days |
| Packaging Details: | Wooden Case |
| Applicable Industrie: | Garment Shops, Home Use, Retail, Printing Shops, Advertising |
| Ink Type: | UV ink |
| Ink Supply System: | CISS |
| Printed Head: | EPSON DX5/1390 |
| Software: | AcroRip 9.03 (included) |
| Working table size: | 300*420mm |

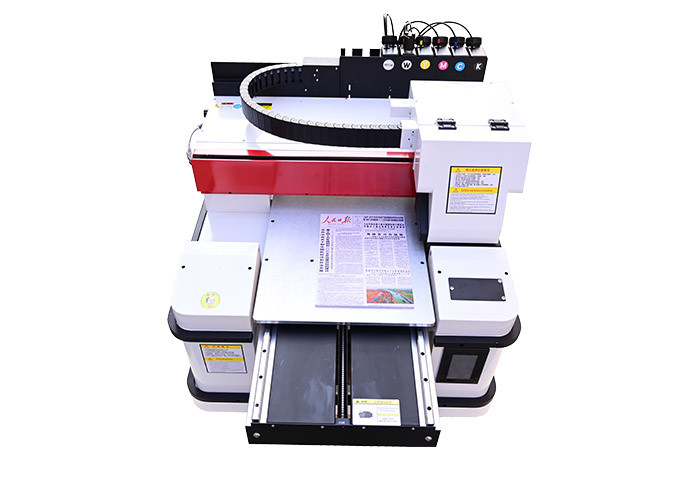

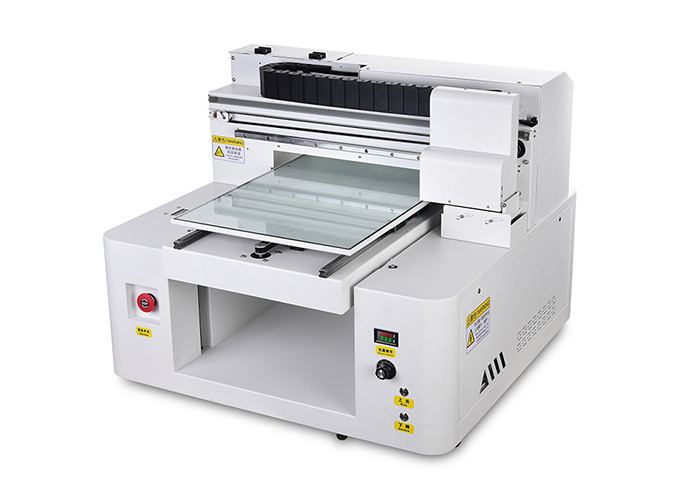

SGS Water Cooling UV Flatbed Printing Machine A3 CMYK WW Colour
Main Advantages:
1. With Epson original print head
2. Pulse motor and IR sensor and ARM controlling chip to upgrade
printing precision and speed .
3. Both button and touch screen motor to make easy operation .
4. Rotary holder with motor drive for high printing precision .
5. Buit-in ink bottle to protect ink .
Printer Parameters:
Type | A3 UV printer,UV Flatbed Printing Machine | ||
Print Head | Epson | ||
Print Size | A3(297*420mm) | ||
Print Speed | A3(1440dpi/10min) | Software | AcroRIP |
Print Height | 0~140mm,Infrared ray height measurement | System | WindowXP,7,10, |
Ink Consumption | 1m2/10ml | Colour Configuration | CMYK+WW |
Ink Supply Mode | CISS | Cameo Print | Support |
UV Light Lifespan | 3 years | Package Dimensions | 720*700*570mm |
UV Light Cooling | Water cooling+wind cooling | Dimensions | 67*67*50cm |
UV Light Power | 50W | Net weight/gross weight | 65KG/75KG |
Platform Adjustment | Touchscreen+infrared ray height measurement | ||
Platform Drive | Stepping motor drive | ||
Ink filtration | Ink bottle and ink bag dual filtration | ||
Voltage/Plug | AC100~230V/choosing & matching according to the region | ||
Print Head Protection | Intelligent Infrared Anti-collision System and Anti-clogging of
Maintenance Fluid for Ink Absorbing Pad | ||
Print Media | Mobile phone shell/leather/lithography/crystal/acrylic/card/CD/U
disk/engraving and so on | ||
Note | Flat-panel printer adopts stable platform technology and advanced
stepper motor drive mode. It combines infrared meanwhile, laser
positioning, water-cooling and air-cooling to meet long-term
continuous work requirement. It has a wide print range and can
print products within 120 mm height. | ||
|
