Name: Solar Photovoltaic System Solar Panel Adjustable Mounting Brackets Technical Datasheet Offer PV Ground Mounting System
Brand: NACYC ENERGY
Price: 1 USD

Home > Clamps >

Solar Photovoltaic System Solar Panel Adjustable Mounting Brackets Technical Datasheet Offer PV Ground Mounting System

Categories	PV Mounting Systems
Brand Name:	NACYC ENERGY
Model Number:	Metis SPII
Place of Origin:	Fujian, China
MOQ:	50 Kilowatts
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	10 Megawatts per month
Delivery Time:	Shipped in 15 days after payment
Packaging Details:	250KW/40ft, 100KW/20ft
Certification:	SGS
Solar Power (W):	Customized
Technical Support:	Provided
Size:	Customized
Foundation:	Ground
Factory Visit:	Accepted
Warranty:	10 years
Material:	AL6005-T5
Surface treatment:	Anodized
Color:	Silver

Contact Now

Add to Cart

Company Info.

Xiamen Nacyc Energy Technology Co., Ltd

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Solar Photovoltaic System Solar Panel Adjustable Mounting Brackets Technical Datasheet Offer PV Ground Mounting System

2019 New Modern Design Ideal for Rolling Ground Mounting Q235 Steel Solar Panel Mounting Structures Adjustable

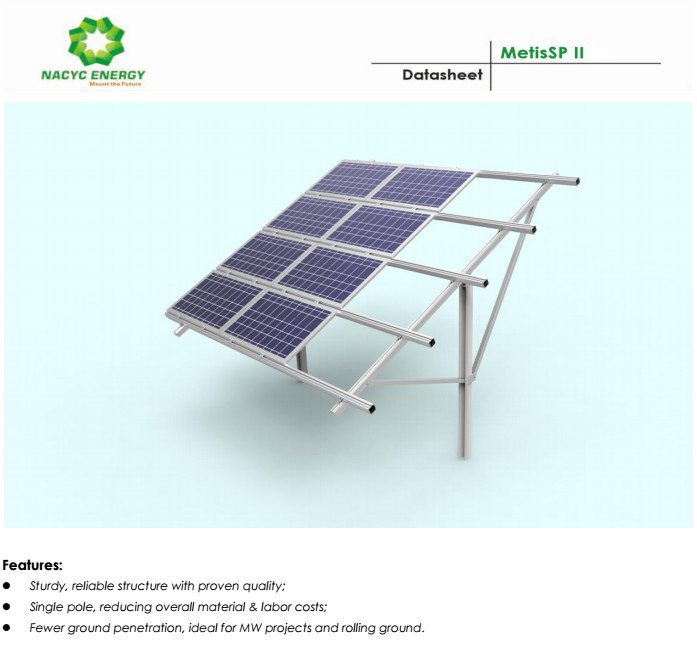

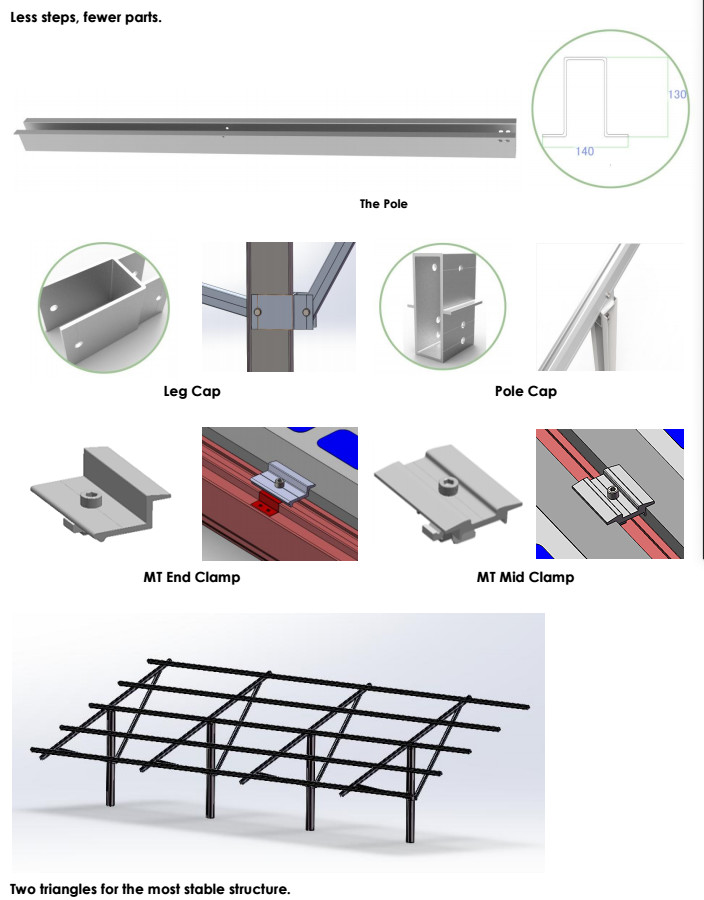

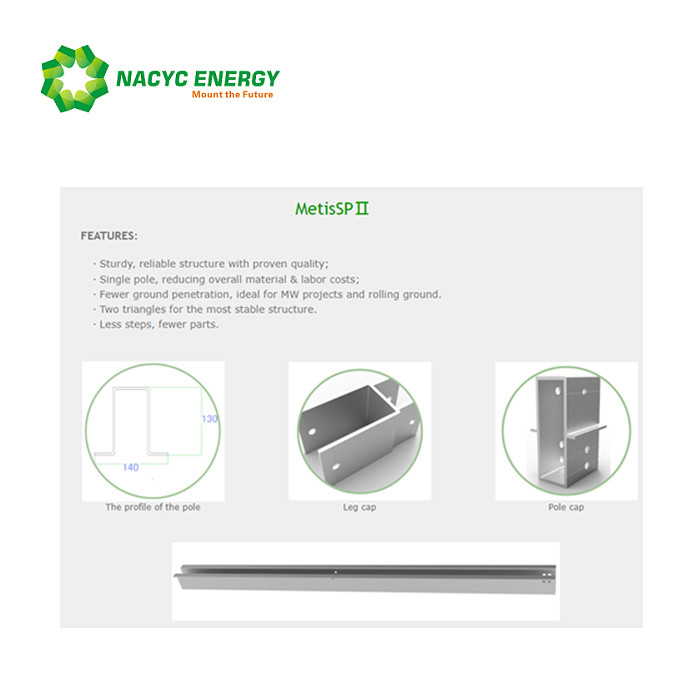

Advantages:

Engineered to high standards, all aluminum design, excellent endurance, the high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.

1)Sturdy,reliable structure with proven quality.

2)Single pole,reducing overall material and labor cost.

3)Fewer ground penetration,ideal for MW projects and roll ground.

Technical Datasheet

Orientation:	Landscape &Portrait
Application:	Ground
Tilt angle	5-30 degree
Max height of upper edge	1000mm
Material	Anodized Aluminum (rail&clamp),Q235 steel(pole),SUS304(bolts&nuts)
PV module:	Framed
Standards	AS/NZS1170(AU),NTC2008(IT),EN1900,EN1999(EU),BS63969(UK)
Warranty	10 years
