Baby Wet Wipes Packaging Machine 3KW Multi Function Packing Machine

Categories Wet Wipes Packing Machine
Brand Name: Sayok
Model Number: SN-450WL
Certification: CE
Place of Origin: Guangdong, China
MOQ: 1 set
Price: EXW US$45315-50000/set
Payment Terms: T/T
Supply Ability: 50 set /month
Delivery Time: 35-45 working days
Packaging Details: Exported wooden case
Raw Material: non-woven cloth
Slitting lanes: 5 lanes, to be customized as requested
Automatic Grade: Automatic
Function: slitting, folding, filling, sealing
Driven Type: Mechanical
After-sales service: Video technical support
Feature: Multi function
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Baby Wet Wipes Packaging Machine 3KW Multi Function Packing Machine

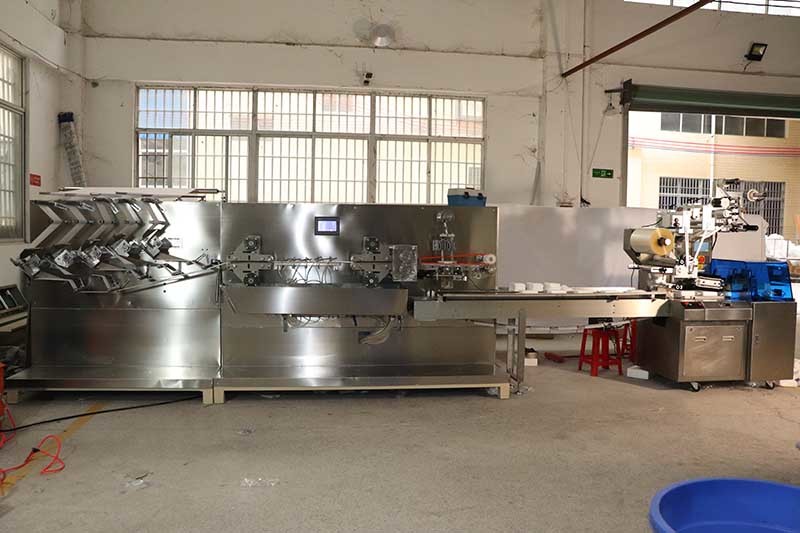

5 Slitting Lanes Wet Wipes Packaging Machine Automatic Baby Wipes Packing Line


Facture:


1. Multi-axis servo motion controller drive, fully servo controlled;
2. Colour LCD touch screen for independent operation;
3. Reliable, simple, convenient and flexible operation with stable performance
4. Fault self-diagnosis function, fault display at a glance.
5. High-sensitivity photoelectric eye tracking, digital input of the cutting and sealing position, more accurate of the sealing and cutting position.
6. Punching and labelling positions can be operated on the touch screen, making it easy and fast to do so..


Quick Details:


1. Folding way:Continuous or independent extraction;

2. Suitable materials: hydroentangled fabric, hot rolled fabric, wet strength paper, etc. ;

3. Applicable labels: Transparent & non-transparent

4. Date printer is optional item;

5. plastic cover is optional item;

6. packing machine is adjustable according to concrete requirements.


Specifications:


Wet wipes unfolded sizeL*H:100-220×100-240mm
Wet wipes folded sizeL*H:80-110×30-90mm
Folding method of wet wipesVertically folded N/W type
Bag size Singlebag:L*W:130-160×50-100mm
Production dateEquipped with ink wheel coding device (low cost, easy to replace)
Processing capacity40~80 bags/min in single row
Packaging film requirements70-130g/㎡ aluminum film packaging paper, Φ≤400mm, width 200-380mm
Inner diameter of raw paper coreΦ 76.2mm (=3")
Total power220V 50Hz 3KW
Drive chainMain drive chain with tensioner as required
Machine weightabout 1200 kg
DimensionsL*W*H:4000×1200×1800mm

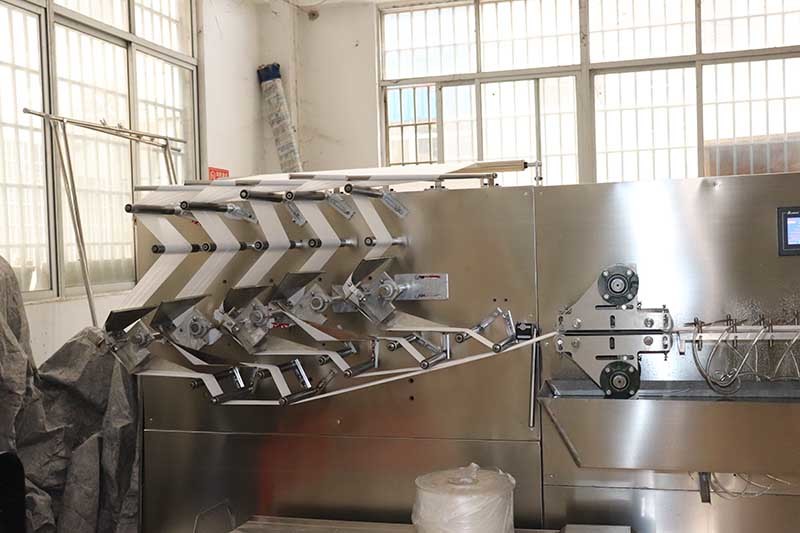

Machine Details:


1. Stainless steel quality, good in appearance and machine is more durable

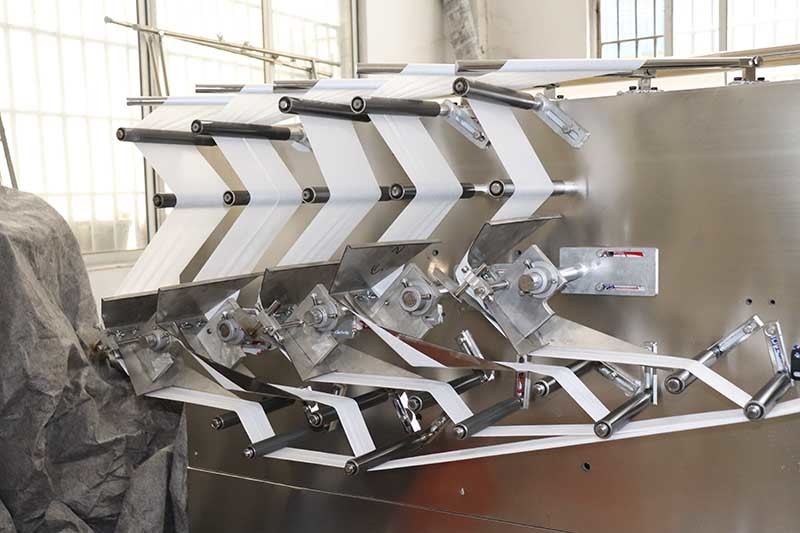

2. 5 slitting lanes design, fast and stable.
3. Dosing liquid filling container, adjustable to control the wet.
4.Automatic pilling system to connect with packing machine.
5. Brush and sponge dual press to
6. Three side seal packing type
