Categories | Chair And Table Testing Machine |
---|---|
Brand Name: | HUST Tony |
Model Number: | TNJ-004 |
Place of Origin: | Guangdong,China(Mainland) |
MOQ: | 1 set |
Price: | contact saler |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 100 sets per month |
Delivery Time: | 15-20 working days |
Packaging Details: | Plywood box |
Iterm: | Test Chairs Casters |
Standard: | ANSI/BIFMA X5.1 |

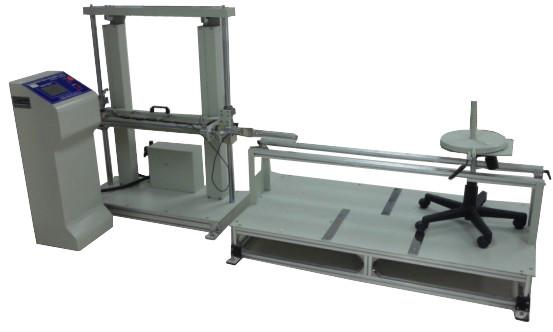

Furniture testing equipment, BIFMA 5.1 Furniture Testing Equipment Caster and Chair Base Durability Tester
Purpose of equipment
This test applies to pedestal base chairs with casters.
The purpose of this test is to evaluate the ability of the chair
base and casters to withstand
fatigue stresses and wear caused by moving the chair back and forth
Technical specifications
Load weight | 102kg,plus |
Move stoke | 800mm |
Block | width 51mm,thickness 3.2mm,three pieces ,detachable |
Drive mode | drive by cylinder |
Test speed | 10±2 times /min |
Test times | with block 2000 times ,98000 times without block |
Counter | 0~999999 times ,can be set |
Air source | 6kgf/cm^2 |
Standards:
ANSI/BIFMA X5.1-17
Service and Support
Our company focuses on research and development , we were produced
some intelligent testing equipments over thirteen years, we
continue to provide stable performance, high-quality equipment for
product quality testing industry.At present, the company has 14
utility model patent technologies,2 patents for invention and
participated in the drafting and formulation of nine national
standards.
