| Categories | Steel Plate Flanges |
|---|---|
| Brand Name: | HH |
| Model Number: | DN15-DN150 |
| Certification: | ISO,ABS,CE,BV,DNV |
| Place of Origin: | Hebei China |
| MOQ: | 10pcs |
| Price: | $0.22-0.64/pc |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 90000pcs/month |
| Delivery Time: | 10-30 days |
| Packaging Details: | Wooden box wooden pallet |

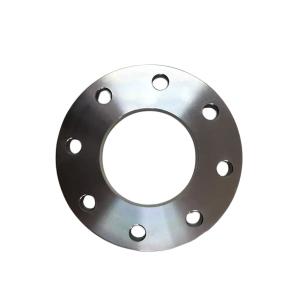

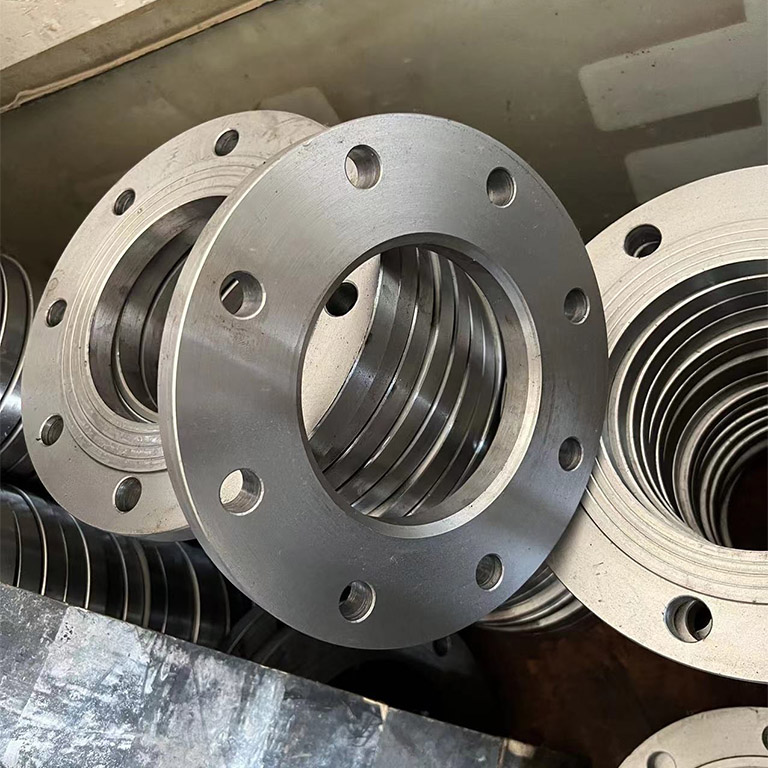

| Product name: | Customized ANSI DIN JIS EN Stainless Steel 304 316 Plate Flange |
| Technics: | Froged,Advanced,Forging |
| Flange Type:: | PL RF |
| Material:: | A182/A403/A351304(L)/316(L) |
| Packing: | Wooden Case,Plywood\wooden Pallets,palletsor as the customers requirements |
| Flange facing:: | RF FF |
| Connection: | Welding |
| Pressure: | Class150/300/600/9001500/2500,PN2.5/6/10/16/25/40,0-63mpa,150LB-2500LB,Class150-2500/ PN6-PN100 |
| Surface treatment: | Heat treatment,Galvanized,Black oxidation,customize,pickeling |
| Certificate: | ISO,ABS,CE,BV,DNV |
| Process: | Forged,Drilling/Bending/Stamping,Casting,sand casting&CNC machining,Forging+machining+heating Treatment |
Product Details
1) ANSI B16.5, ASME B16.47 FLANGE Size range: 1/2" to 80" DN15 to DN2000 Design: welding neck, slip on, blind, socket welding, threaded, lap-joint Pressure: 150#, 300#, 600#,900#,1500#, 2500# Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS Material: carbon steel A105, stainless steel 304/304L, 316/316L Coating: black paint, yellow transparent paint, cold and hot dip galvanize Package: seaworthy plywooden case, wooden pallet 2) EN1092-1 FLANGE Size range: DN15 to DN2000 Design: type01 plate flange, type02 loose flange, type05 blind flange, type11 welding necking type12 slip on flange, type 13 threaded flange Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100 Material: carbon steel C22.8, S235, S235JR, P235GH, stainless steel: 304/304L, 316/316L Coating: black paint, yellow transparent paint, cold and hot dip galvanize Package: sea worthy plywooden case, wooden pallet 3) DIN FLANGE Size range: DN15 to DN2000 Design: slip on flange DIN2573,2576,2502,2503, 2543,2545 welding neck falnge DIN2631, 2632,2633,2634,2635 blind flange DIN 2527 PN6, PN10, PN16, PN25, PN40 threaded falnge DIN2565,2566,2567,2567 loose flange DIN 2641,2642,2656,2673 Material: carbon steel ST37.2, stainless steel 1.4301, 1.4404 Coating: rust-proof oil, transparent paint, cold and hot galvanize Package: sea worthy plywooden case, wooden pallet 4) GOST FLANGE Size range: DN15 to DN 2000 Design : plate falnge 12820-80, welding neck flange 12821-80 Pressure: PN6, PN10, PN16, PN25, PN40 Material: carbon steel CT-20, stainless steel 304/304L, 316/316L Coating: rust-proof oil, cold and hot galvanize Package: sea worthy plywooden case, wooden pallet 5) JIS FALNGE Size ragne : 15A to 2000A Design: SOP, BIND, SOH, Puressure: 1K, 2K, 5K, 10K, 16K, 20K, 30K, 40K Material: carbon steel SS400, stainless steel SUS304, SUS316 Coating : rust-proof oil, cold and hot galvanize Packing: sea worthy plywooden case, wooden pallet |
Common Flange Standard
| NO. | FLANGE STANDARD | SIZE | PRESSURE RATING | TYPES |
| 1 | ANSI/ASME FLANGE B16.5 | 1/2"-24" | LBS: 150 300 400 600 900 1500 2500 | SO.WN,SW,TH,LJ,BL |
| 2 | ORIFICE FLANGE B16.36 | 1"-24" | LBS: 300 400 600 900 1500 2500 | SO,WN,TH |
| 3 | LONG WELDING NECK FLANGES B16.5 | 1/2"-24" | LBS: 150 300 400 600 900 1500 2500 | LWN |
| 4 | ASMEB16.47-A(MSS FLANGE) | 26"-60" | LBS: 150 300 400 600 900 | WN,BL |
| 5 | ASME B16.47-B(API FLANGE) | 26"-60" | LBS: 75 150 300 400 600 900 | WN,BL |
| 6 | AWWA C207 FLANGE | 4"-120" | TABLE 2,3,4 CLASS B&D | SO,BL |
| 7 | API 590 FIG.8 FLANGE B16.48 | 1/2"-36" | LBS: 150 300 400 600 900 1500 2500 | FIG.8 |
| 8 | SPACER AND BLANK B16.48 | 1/2"-36" | LBS: 150 300 400 600 | SPACER AND BLANK |
| 9 | BS 4504 FLANGE | DN10-2000 | PN: 2.5 6 10 16 25 40 | CODE: 101 111 112 113 105 |
| 10 | SABS 1123 FLANGE | DN10-600 | KPA: 600 1000 1600 2500 4000 | SO.WN,SW,TH,LJ,BL |
| 11 | JIS B2220(KS B1503) FLANGE | DN10-1500 | 5K 10K 16K 20K 30K 40K | SO.WN,SW,TH,LJ,BL |
| 12 | GOST 12820/1-80 | DN15-1200 | PN: 1 1.6 2.5 4 6.3 10 | SO,WN |
| 13 | AS 2129 FLANGE | DN15-1200 | TABLE: D E F H | SO,BL |
| 14 | NS FLANGE | DN15-800 | PN: 6 10 16 40 | SO,BL |
| 15 | VSM FLANGE | DN15-200 | PN: 6 10 16 | SO,WN,BL |
| 16 | DIN FLANGE | DN10-4000 | PN: 1 2.5 6 10 16 25 40 64 100 160 250 320 400 | SO.WN,SW,TH,LJ,BL |
| 17 | EN1092 PL | DN10~DN600 | PN6 PN10 PN16 PN25 PN40 PN63 PN100 | TH SO WN BL |
