120-220pcs/min Automatic Corrugated Box Stitching Machine 17KW

Categories Automatic Folder Gluer Stitcher Machine
Brand Name: RINO
Model Number: HS-FG2800
Certification: CE
Place of Origin: China
MOQ: 1 Set
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
Delivery Time: 40-60 Working Days After Deposit
Packaging Details: Wrapped with film or in wooden case
Name: Automatic Carton Box Stitcher Machine For Carton Box Folding Gluing Stitching Machine
Sutiable board: 3/5 /7ply corrugated cardboard
Max. machine Gluing Speed: 120-220pcs/min
Machine Weight: 7000kgs
Grade: Automatic Type
Total Power: 17KW
Overall Dimension: 3200*15000mm
Stitching wire type: 17#,18#
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

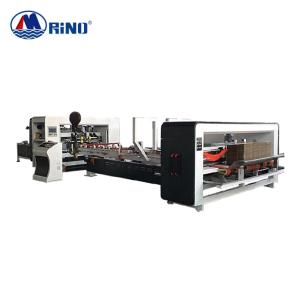

120-220pcs/min Automatic Corrugated Box Stitching Machine 17KW

Automatic Carton Box Stitcher Machine For Carton Box Folding Gluing Stitching Machine


Functions and features of Automatic Folder Gluer Stitcher Machine


1. Automatic feeding, automatic glue, automatic folding, automatic calibration, automatic counting, only two people can complete the whole process.
2. The suction belt feeding way, simple structure, fast speed, paper accurately.
3. The nail tooth belt feed, feed accuracy;and it has secondary indentation function, make folding cartons more accurately.
4. With functions of secondary rectification, eliminate the size of the different mouth, reduce rejection rate.
5. With differential correction regulating function, eliminate shear knife and fork, fold more accurate.


Parameter of Automatic Folder Gluer Stitcher Machine


Model

HS-FG2600

HS-FG2800

Machine size
3000*15000 mm
3200*15000mm
Total power
17KW
17KW
Max cardboard size
1200*2200mm
1200*2400mm
Min stitching size
350*800mm
350*800mm
Min gluing size
440*170mm
440*170mm
Gluing speed
120-220pcs/min
120-220pcs/min
Stitching speed
60pcs/min
60pcs/min
Economic stitching speed
50pcs/min
50pcs/min
Nail distance
50-90mm
50-90mm
Stitching wire
17#,18#
17#,18#

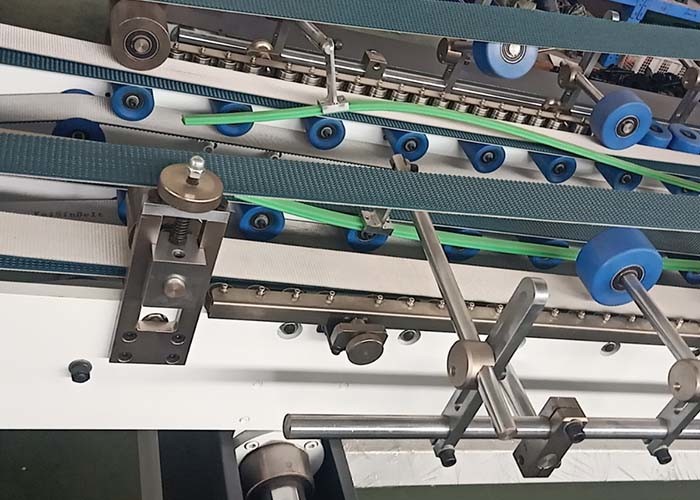

Deails of Folder Gluer Stitcher Machine


1. The height of the press wheel can be adjusted.Suitable for cardboard thickness of 2-8mm.
2. With the folding section linkage, frequency conversion speed regulation.
3. The front baffle of the paper feeding department and the paper belt are adjustable.

1. Gluing department adopt high quality stainless steel gluing wheel.
2. Folding department equipped with paper corrective and creasing corrective device.

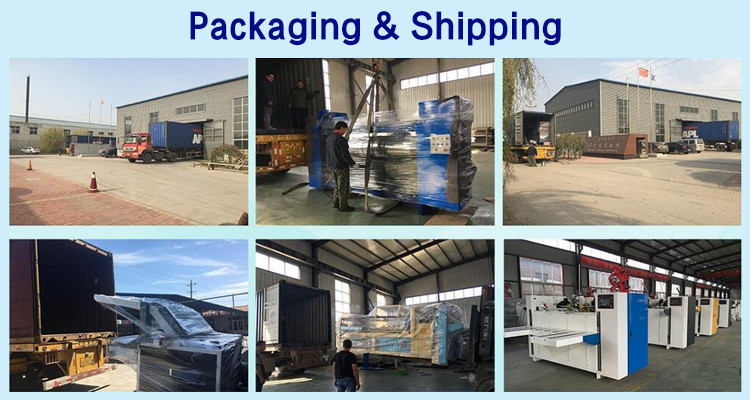

Packaging&Shipping


Cheap 120-220pcs/min Automatic Corrugated Box Stitching Machine 17KW for sale
