| Categories | Thermal Spray Wire |
|---|---|
| Brand Name: | WL-ALLOTECH |
| Model Number: | TAFA 98 MXC |
| Place of Origin: | China |
| MOQ: | 5kg |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300 tons per month |
| Delivery Time: | within 10 days |
| Packaging Details: | 15kg/spool |
| Price: | Negotiable |
| Diameter: | 1.6/2.0mm |
| Hardness: | HRC 39-42 |
| Bond Strength: | 5000 psi |
| Deposit Efficiency: | 70% |
| Machine Ability: | Good |
| Certificate: | ISO 9001 |
| Surface: | Bright |
| Deposit Rate: | 8 lbs /hr/100A |
| Spool Type: | No Recycled Material |
| Spray Wire State: | Semi-hard State |
| Test Report: | Mill-certificate |
| Color: | Metal Color |
| Wire Coverage: | 1.0 oz / ft2 / mil |
| Surface Texture: | *Variable |
| Company Info. |
| Changzhou WL Allotech Material Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
LCr Carbide (P) Cored Wire TAFA 98 MXC Thermal Spray Wire Alloy Wire Food Processing Paper Processing Metal Wire
Product Description
LCr Carbide (P) is a cored wire specifically designed for arc spray systems. It produces a hard, well bonded coating that is abrasive and corrosion resistant. LCr Carbide (P) can be easily machined with carbide tools, yielding a smooth, low coefficient of friction surface finish, suitable for a number of applications.
Equivalent to: TAFA 98 MXC, PMET 223
Surface Preparation
Surface should be clean, white metal, with no oxides (rust), dirt, grease, or oil on the surface to be coated. Note: It is best not to handle surfaces after cleaning. Recommended method of preparation is, to grit blast with 24 mesh aluminum oxide, rough grind, or rough machine in a lathe.
Chemical Composition(wt%)
| Cr | Ni | Cr | Mn | Si | Mo | Fe |
| 26 | 3.0 | 1.7 | 1.6 | 1.6 | 0.8 | Bal |
Typical Seposit Characteristics
| Typical Hardness | Bond Strength | Deposit Rate | Deposit Efficiency | Wire Coverage | Surface Finish |
| HRC 39-42 | 5000 psi | 8 lbs/hr/100A | 70 % | 1.0 oz/ft2 / mil | 1.0 oz/ft2 / mil |

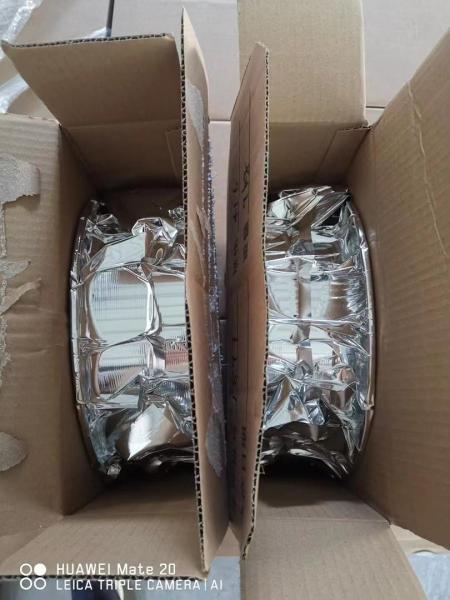

Packing Details
| Diameter | Dimension Tolerance | Packing | Wire Weight |
| 1/16"(1.6mm) | +0/-0.05 | D 270 Spool | 15kgs(33 lbs)/spool |
| 2.0mm | +0/-0.05 | D 270 Spool | 15kgs(33 lbs)/spool |
Other sizes can be produced by customers’ requirement.
Applications
· Boiler Tubes & Tube Shields
· Fan Blades
· Food Processing
· Paper Processing
Type We Could Offer
Thermal spray wire-Nickel based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-NiAl95/5 | 75B | 885 | 8400 | 1.6/2.0/3.17mm |
| WL-NiAl80/20 | 79B | 884 | 405 | 2.0/3.17mm |
| WL-NiCr80/20 | 06C | 821 | 8450 | 1.6/2.0/3.17mm |
| WL-Monel400 | 70T | 877 | Monel | 1.6/2.0/3.17mm |
| WL-NiCrTi | 45CT | 889 | 8500 | 1.6/2.0/3.17mm |
| WL-Inconel718 | 78T | 818 | 8718 | 1.6/2.0/3.17mm |
| WL-Inconel625 | 71T | 860 | 8625 | 1.6/2.0/3.17mm |
| WL-Alloy-C276 | 77T | 876 | 8276 | 1.6/2.0/3.17mm |
| WL-NiCrAl(P) | 73MXC | 886 | 8443 | 1.6/2.0mm |
| WL-NiCrAlY(P) | 76MXC | 887 | 884 | 1.6/2.0mm |
| WL-NiMoAl(P) | 74MXC | 888 | 8447 | 1.6/2.0mm |
Thermal spray wire-Iron based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-SS420 | 60T | 720 | Metcoloy 2 | 1.6/2.0/3.17mm |
| WL-SS304/304L | 80T | 710 | Metcoloy 1 | 1.6/2.0/3.17mm |
| WL-SS316/316L | 85T | 730 | Metcoloy 4 | 1.6/2.0/3.17mm |
| WL-FeCrAl | Alcro | 731 | 1.6/2.0mm | |
| WL-FeCrBSi(P) | 95MXC | 273 | 1.6/2.0mm | |
| WL-FeCrNiB(P) | 96MXC | 1.6/2.0mm | ||
| WL-Tungsten Carbide(P) | 97MXC | 297 | Duocor | 1.6/2.0mm |
| WL-LCr Carbide(P) | 98MXC | 223 | 1.6/2.0mm | |
| WL-FeAl(P) | 35MXC | 50 | 1.6/2.0mm | |
| WL-HCr Carbide(P) | 226 | Sm8222 | 1.6/2.0mm |
Thermal spray wire-Copper based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Pure Copper | 1.6/2.0/3.17mm | |||
| WL-CuSn1 | 05T | 1.6/2.0/3.17mm | ||
| WL-CuAl8 | Sprabronze AB | 1.6/2.0/3.17mm | ||
| WL-CuAl10 | 10T | 590 | Sprabronze AA | 1.6/2.0/3.17mm |
Thermal spray wire-Zinc & Aluminium based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Pure Al | 01T | 699 | Aluminum | 1.6/2.0/3.17mm |
| WL-Pure Al Grade 1100 | 1.6/2.0/3.17mm | |||
| WL-Pure Zn | 02Z | 540 | Zinc | 1.6/2.0/3.17mm |
| WL-AlMg5 | Metco AlMg | 1.6/2.0/3.17mm | ||
| WL-ZnAl85/15 | 02A | Zn/Al | 1.6/2.0/3.17mm |
Thermal spray wire-Other based alloy
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Molybdenum wire | 13T | 899 | Sprabond | 1.6/2.0/3.17mm |
| WL-Babbitt wire | 04T | 542 | Sprababbitt | 1.6/2.0/3.17mm |
| WL-Tin wire | 02W | 549 | Metco Tin | 1.6/2.0mm |
| WL-Ti wire | 14T | 1.6/2.0mm |
|
