8 Inch Face Scan Body Temperature Detector , Facial Recognition Temperature Scanner

Temperature Detector Smart Access Control System Against Coronavirus

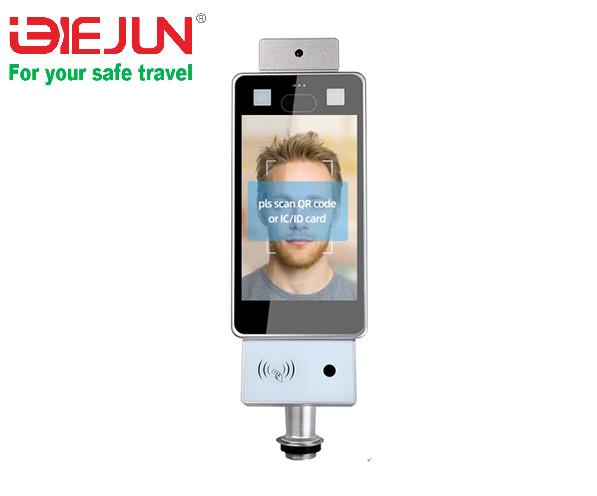

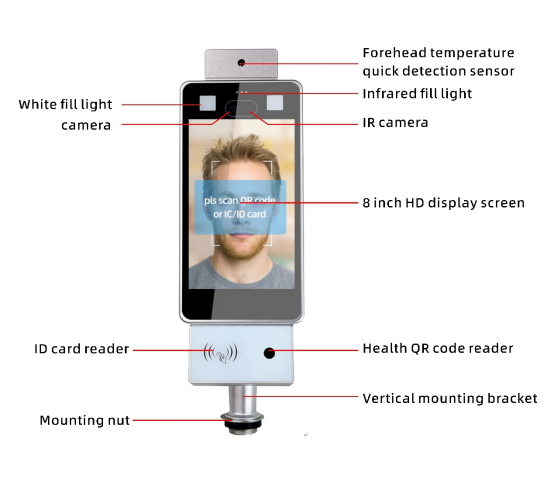

I. Product appearance

II. Product description

With the normalization of epidemic prevention and control, the Covid-19 epidemic has been effectively controlled to a large extent, but it is inevitable that small groups of people gather in some places like hospitals, etc.! Manual temperature measurement and health QR code check in these places have potential risks and also add to labor costs. At the same time, the relatively low efficiency of manual temperature measurement and health code inspection increases the risk of crowd gathering, and the data is not available for double check.
TM78 is a good solution to the above problems. The system has a solution that integrates face collection, ID card collection, health code status (red, green, and yellow code) query, access control management, and data upload at the same time and place.

III. Product features

3.1 Quick overview of functions
This device is mainly used for real-time verification of visitors ’health code status in public places, information collection and uploading, and entrance access control. It can replace the traditional manual temperature measurement and health QR code check to achieve scientific unmanned prevention and control, reduce queuing and gathering, and fast traffic.

• Mobile phone health code scanning;
• Reading the second-generation ID card;
• Real-time query of the health code status (green code, red code, yellow code);
• Register the visitors’ personal information and upload to the health code management platform;
• 8-inch high-definition IPS screen (1280*800);
• Mask wearing reminding;
• Face recognition when wearing a mask;
• Support 50,000 face library;
• 1 way door opening relay signal output, 1 way alarm signal output;

IV. Working mode

• Working flow chart

V. Packaging

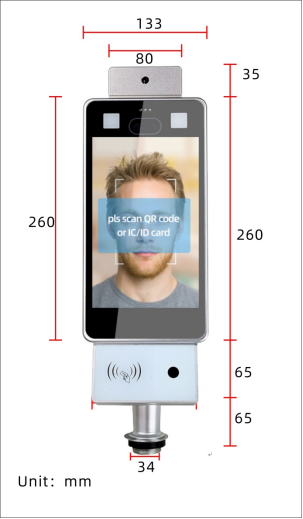

5.1 Dimensions

VI. Product specifications

VII. Quick installation

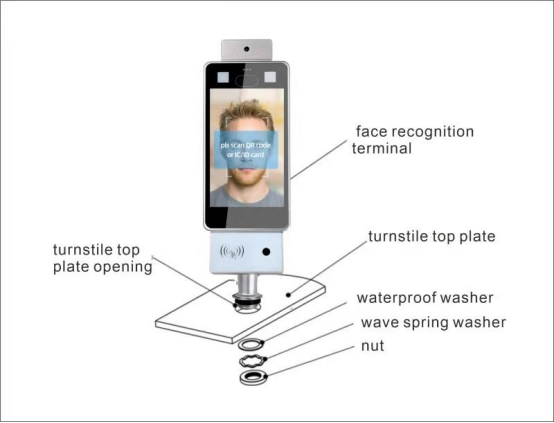

7.1 Stand bracket installation

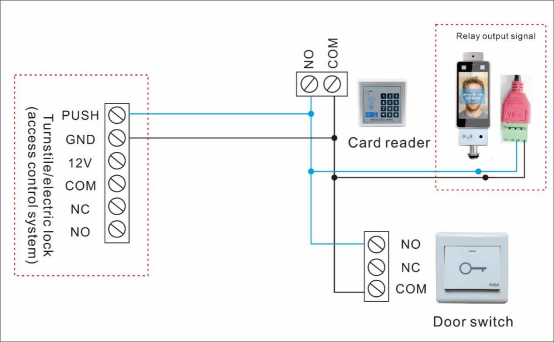

7.2 Linkage with access control systems

VIII. Mounting cases

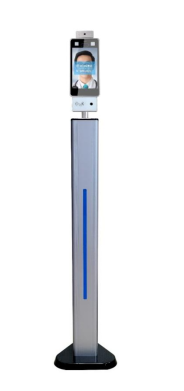

8.1 Floor stand mounting

This installation method is simple and quick to deploy, and the bracket needs to be purchased additionally.

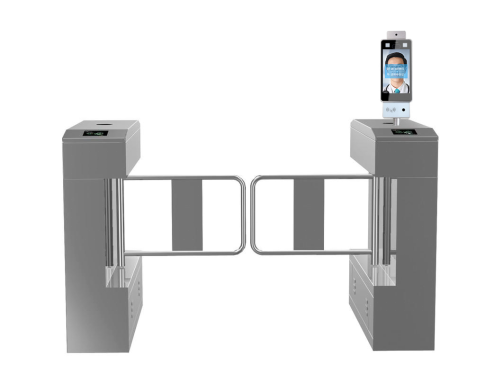

8.2 Turnstile mounting

This installation method requires the cooperation of turnstiles.

IX. Peripheral interfaces

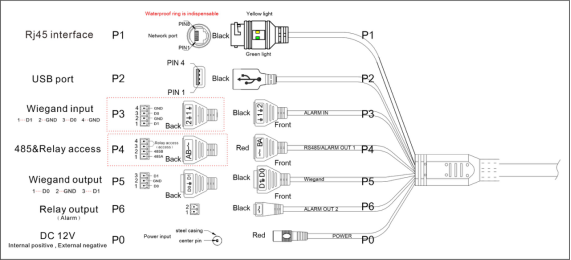

9.1 Tail cable

The relay interface of P4 is the access control signal, and the relay signal of P6 is the abnormal alarm output signal.





Disclaimer
The same model product may have multiple versions available and there may be differences (in LOGO design, appearance details, etc.), please refer to the actual product.

All rights reserved
Without the written consent of Chengdu Tommi Technology Co., Ltd., any entity or individual shall not extract or copy part or all of the contents in this manual without authorization, and shall not disseminate it in any form.
