| Categories | Aerial Cable Fitting |
|---|---|
| Brand Name: | LJ |
| Model Number: | PAMJ-06 |
| Certification: | NFC 33-041, EN 50-483,NFC 33-042; |
| Place of Origin: | Luohe China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time: | 20 |
| Packaging Details: | Wooden Case Package |
| Supply Ability: | 1000000/per month |
| Name: | Aerial Cable Fitting |
| Material: | Aluminium alloy and Plastic |
| Application: | Power Installation |
| Customized: | Yes |
| Sample: | Immediately and Free |
| Color: | Silver |
| Company Info. |
| Powerchina Henan Electric Power Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Aluminum ABC Dead End Clamps Set With A Bracket Supporting And Anchoring Clamps Aerial Cable Fitting
Aerial Cable Fitting

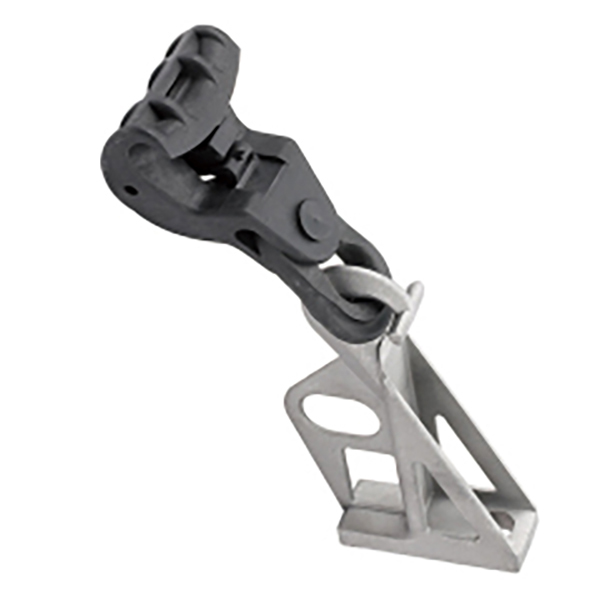

The Dead end clamp is designed for the installation and single anchoring of Aerial Bundled Conductors with insulated neutral messenger on poles or walls in rural and urban aerial distribution network. It comprises a bracket supporting one or two anchoring clamps.
The Dead end clamp is used to terminate 2 or 4-core of Aerial Bundle Conductor with hook fixing. Its function is to fix and tighten the insulation conductor.
• Material: the body is made of weather resistant aluminium alloy and the plastic parts of special fibreglass reinforced plastic.
• The clamp is made of high strength aluminium alloy,nylon plus fiber glass ,stainless steel.
• The clamp can be easily installed without damage to the cable insulation and also cable gripping device in insulating material ensures the double insulation of the neutral core and avoids damage to sheath ,secured parts, no tools required.
• Standard: NFC 33-041, EN 50-483,NFC 33-042.
Technical data sheet
Type | Conductor Range (mm2) |
| PAMJ-06 | 16-20 |
| PAMJ-07 | 16-25 |
| PAMJ-08 | 16-25 |
| PAMJ-09 | 16-25 |
| DRJ1400 | 50-70 |
| DRJ1500 | 50-70 |
| DRJ1600 | 50-70 |
| JBG-1 | 50-70 |
| NES J1 | 4*(16-35)mm² |
| NES J2 | 4*(50-120)mm² |
| NES J3 | 4*(25-120)mm² |
| NES J4 | 4*(95-150)mm² |
| DRJ1400 | 50-70 |
| DRJ1500 | 50-70 |
| DRJ1600 | 50-70 |
| JBG-1 | 50-70 |
| SM116 | 4*(25-35)mm² |
| SM117 | 4*(50-120)mm² |
| SM118 | 4*(50-120)mm² |
| SM157 | 2*(16-25)mm² |
| SM158 | 4*(16-25)mm² |
| SM160 | 2*(16-25)mm² |
| SM160 | 4*(16-25)mm² |
Advantage:
1, Henan Electric Power Equipment Co., Ltd Since 1985.
2, Belongs to Power China, one of the FORTUNE GLOBAL 500
3, Our customers from over 30 countries
About us
POWERCHINA Henan Electric Power Equipment Co., Ltd. is a subsidiary company of Power Construction Cooperation of China (POWERCHINA), one of the FORTUNE GLOBAL 500.
Professional customer service, product development, technical Support and after Sale Service.
POWERCHINA Henan Electric Power Equipment Co., Ltd, covering an area of 84000 square meters, was established in 1958.
POWERCHINA Henan Electric Power Equipment Co., Ltd has a total of more than 426 employees, including more than 128. engineers and technicians.
|
