| Categories | Rotary Potentiometer |
|---|---|
| Place of Origin: | China |
| Brand Name: | SANNI |
| MOQ: | 2000PCS |
| Packaging Details: | 2000PCS/BOX |
| Delivery Time: | 25 Working days |
| Payment Terms: | T/T |
| Supply Ability: | 30000pcs/Month |
| Model Number: | RV27120 |
| Price: | USD2.5~ 4 per pc |
| Model NO.: | RV27120 |
| Shape: | Square |
| Mounting Direction: | Horizontal |
| Units: | Dual Unit |
| Transport Package: | Carton Boxes |
| Specification: | 27mm |
| Installation: | DIP PCB Mount |
| Customization: | Available | Customized Request |
| Company Info. |
| Dongguan SANNI Electronics Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

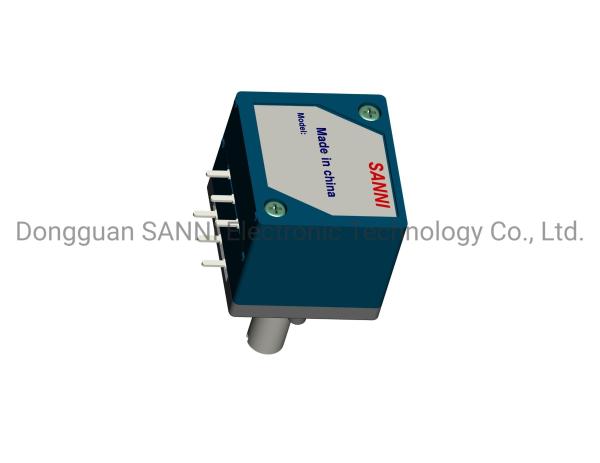

RV27 Metal Shaft Sealed Rotary Potentiometer for Audio Product and House Hold Appliances
Product Description
27mm Metal Shaft Sealed Potentiometer
Width: 27mm
Rohs compliant
High Quality
Application of Rotary Potentiometer
Rotary Potentiometer is mainly suitable for communication products, walkie-talkie, multimedia audio, automobile power amplifier and other electronic equipment, but also can use household appliances, medical equipment, its main functions are: volume adjustment, light intensity adjustment, menu selection, speed adjustment, temperature adjustment, etc.
Product Specification
| 1.Electrical Characteristics | |
| Total resistance | 100Ω-3MΩ |
| Total resistance tolerance | 50Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30% |
| Residual resistance | R≤10KΩ: 10ΩMax./10KΩ<R>500KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less |
| Rated Power | Linear taper:0.05W, Audio Taper 0.025W |
| Insulation resistance | 100MΩ min. 250V DC |
| Voltage proof | 300V AC for 1 minute |
| Maximum operation voltage | 50V AC/10V DC |
| 2.Mechanical Characteristics | |
| Rotation stopper strength | Min:5.0Kgf |
| Total rotation angle | 300o±5o |
| Totational torque | 20-200gf.cm |
| Key push-pull strength | Min:8Kgf |
| Vibration | Max: 0.6*L/20mm P-P |
| Terminal Strength | 5N for 1 minute |
| 3.Environmental Performance | |
| Operating temperature range | -10oC to +70oC |
| Storage temperature range | -40oC to +85oC |
| 4.Soldering Performance | |
| Manual Soldering | 350oC±10oC/3+1S |
| Wave Soldering | 260oC±5oC/10±1S |
|
