| Categories | Trimmer Potentiometer |
|---|---|

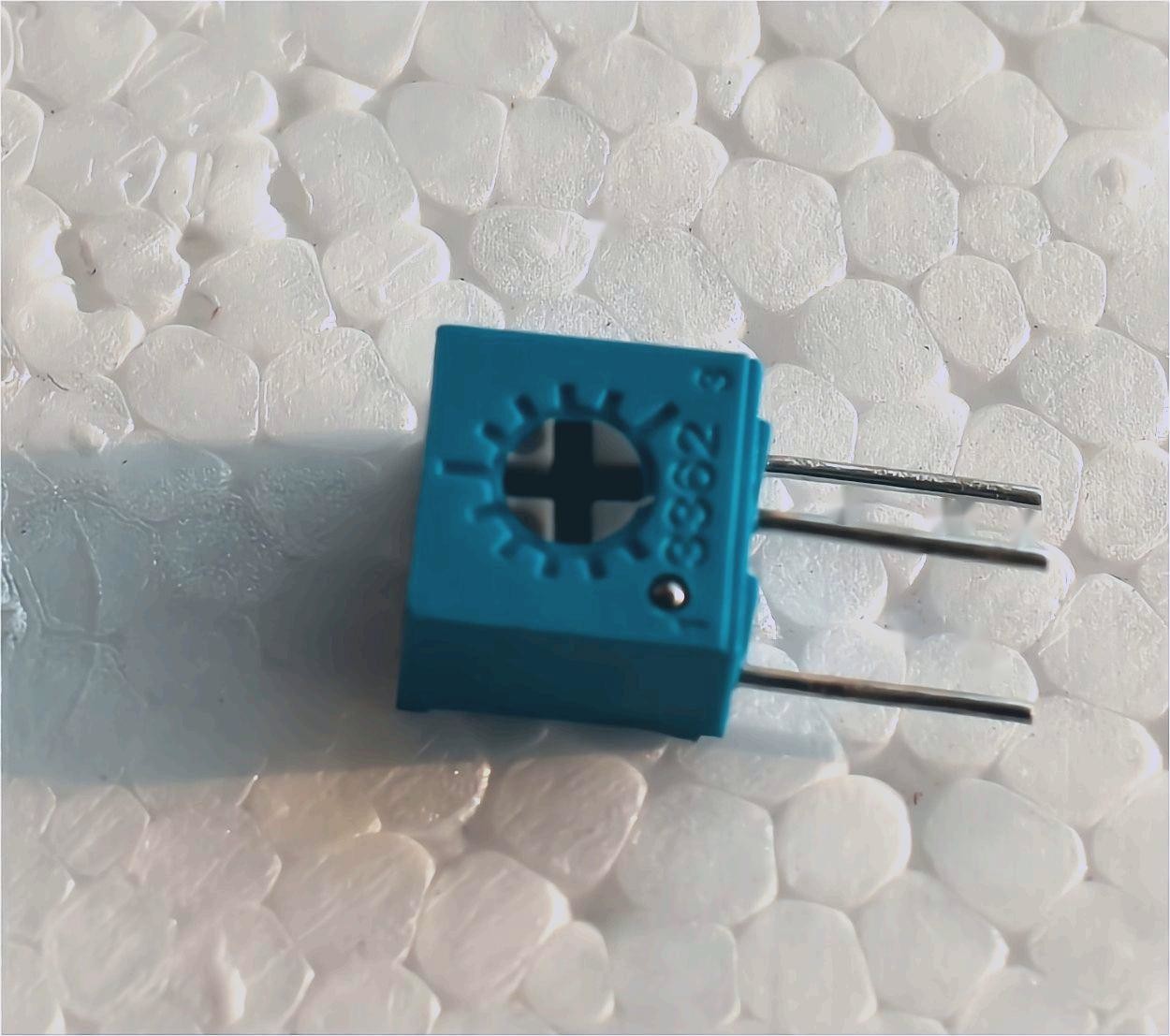

| Brand Name: | SANNI |
| Model Number: | RI3362W |
| Place of Origin: | China |
| MOQ: | 2000PCS |
| Price: | USD0.08~0.12per pc |
| Payment Terms: | T/T |
| Supply Ability: | 30000pcs/Month |
| Delivery Time: | 25 Working days |
| Packaging Details: | 2000PCS/BOX |
| Model NO.: | RV9110N0KQ |
| Shape: | Square |
| Resistance Taper: | Linear |
| Turns: | Single |
| Resistor material: | Cermet |
| Adjustment: | Side adjust |
| Company Info. |
| Dongguan SANNI Electronics Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Single-Turn / Cermet / Industrial / Sealed
Miniature package
Tape and reel packaging available
RoHS Compliant
Product Characters
| 1.Electrical Characteristics | |
| Total resistance (standard resistance range) | 100Ω-3MΩ |
| Total resistance tolerance | ±10% std. |
| Residual resistance(Absolute minimum resistance) | 1% or 2ohms |
| Adjustability Voltage divider | ±0.05% |
| Rheostat | ±0.15% |
| Resolution | Infinite |
| Insulation resistance | 500vdc. 1000mΩmin. |
| Dielectric Strength | Sea Level:900vac, 80,000 feet:350vac |
| 2.EnvironmentalCharacteristics | |
| Adjustment Angle | 240o |
| Power Rating (300 volts max.) | 70oC:0.5watt,125oC:0watt |
| Temperature range | -55oC to +125oC |
| Temperature Coefficient | ±100 ppm/°C |
| Seal Test | 85 °C Fluorinert† |
| Humidity | MIL-STD-202 Method 103,96 hours (2 % ΔTR; 10 Megohms IR) |
| Vibration | 30 G (1 % ΔTR; 1 % ΔVR) |
| Shock | 100 G (1 % ΔTR; 1 % ΔVR) |
| Load Life | 1,000 hours 0.5 watt @ 70 °C (3 % ΔTR; 3 % or 3 ohms,whichever is greater, CRV) |
| Rotational Life | 200 cycles (4 % ΔTR; 3 % or 3 ohms,whichever is greater, CRV) |
| 3.Physical Characteristics | |
| Mechanical Angle | 270 ° nom. |
| Torque | 3.0 oz-in. max. |
| Stop Strength | 7.0 oz -in. min. |
| Terminals | Solderable pins |
| Weight | 0.02 oz. |
| Marking | Resistance code, |
| Wiper | 50 % (Actual TR) ±10 % |
| Flammability | U.L. 94V-0 |
| Standard Packaging | 50 pcs. per tube |
| Adjustment Tool | H-90 |
FAQ
• Q: Can I get sample from you?
• A: Yes, we can provide the free samples for your testing, please contact us for free and tell us which product you need.
• Q: Do you accept customization?
• A: Yes, customization is acceptable, please contact our sales staffs for consult.
• Q: Can you provide help for technical issues?
• A: Yes, we have more than 10 years of research and development in
the electronic potentiometer industry. If you need technical help
in the purchase process, please feel free to contact us.
|
