At043tn25 V.2 Cell Phone Lcd Display 480x272 Controller Board Touch Screen

4.3 Inch 480x272 Chimei Tft Lcd Screen Rgb Panel At043tn25 V.2 Touch Screen Driver Board

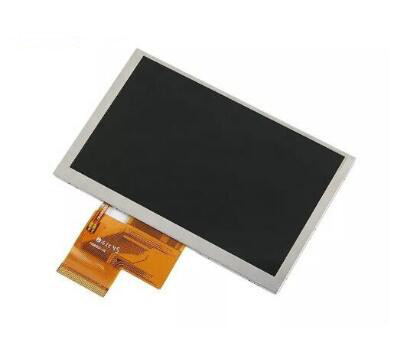

Innolux's AT043TN25 V.2 is a 4.3-inch LCD module product using A-Si TFT-LCD technology. It operates at temperatures of-20 to 70 C and has storage temperatures of-30 to 80 C, display resolution of 480 (RGB) ×272 (WQVGA), an aspect ratio of 16:9 (width: height), and the pixels are arranged in RGB vertical bars. Its display area size is 95.04×53.856 (width and height) mm, visible size is 98.7×57.5 (width and height) mm, appearance size is 105.5 (wide)× 67.2 (height)× 3.1 (thick) mm, surface treatment is fog surface, product net weight is 45.0g. In terms of the backlight, this product uses the 8S1P WLED luminous side input light source, and the service life of the light source is 20K hours, without the backlight drive. The AT043TN25 V.2 uses a Parallel RGB (1 ch, 8-bit) signal interface, with a total of 40 pins, an FPC connection, and a drive voltage of 3.3V (Typ.).This product is used in electronic instruments, medical instruments, handheld terminals, on-board display.

4.3" tft lcd module product details

4.3" tft lcd module features

This product is used in electronic instruments, medical instruments, handheld terminals, on-board display.

The panel parameters displayed in this page are entered by our electronic engineers according to the specifications, and we have tried to reduce the errors, but the parameters are not fully correct, please refer to the specifications!

faq

1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.

2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.

3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.

4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.

5.Q:How about the warranty?
A: We supply one year warranty.

6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.

7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
