| Categories | Coaster Buses |
|---|---|
| Brand Name: | ZEVAUTO |
| Model Number: | CDL6606LRBEV |
| Certification: | ISO |
| Place of Origin: | Chengdu, China |
| MOQ: | 1 |
| Supply Ability: | 25000 units/per year |
| Delivery Time: | 25 working days |
| Packaging Details: | nude packing |
| Product name: | Pure Electric Mini Bus |
| Seat No.: | 19 |
| Battery: | 89.7 kwh，LiFePo4 |
| Motor type: | PMSM |
| Max.power: | 160 |
| Cruising range: | ≥150km |
| Charging time: | Within 2 hours |
| Transmission: | Auto |
| Suspension: | Leaf spring |
| Brake: | energy retrieve |
| Company Info. |
| Zhongzhi First Bus Chengdu Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

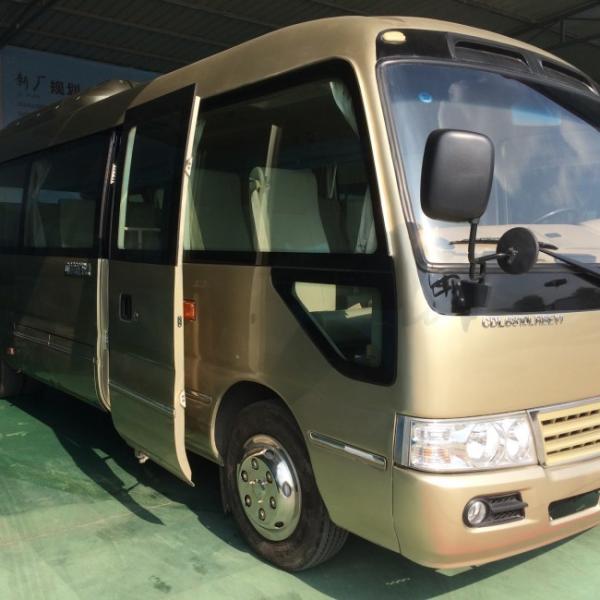

6m Luxury Design Pure Electric Mini Bus Coaster Buses 100km/H.
Diesel model also available
Specs
| Overall specs | Passenger capacity | 18+1 seats | Motor specs | Manufacturer | ZEV |
| Vehicle size (mm) | 5990*2025*2650 | Model | ZEV | ||
| Wheel base (mm) | 3200 | Position | Rear | ||
| Front/Rear overhang | 1145/1665 | Motor type | PMSM | ||
| Front/Rear tread | 1645/1512 | Max.power(kw/rpm) | 160 | ||
| Approach/Departure(º) | 17.5/121 | Max. torque (N.m/rpm) | 1000 | ||
| Max. Grade-ability(%) | ≥20% | Displacement(L) | -- | ||
| Top speed (km/h) | 100km/h | Fuel | Electric | ||
| Curb weight (kg) | 4200 | Emission | -- | ||
| Gross weight (kg) | 6300 | ||||
| Battery | 89.7 kwh,LiFePo4 | ||||
| Cruising range | ≥150km | ||||
| Charging Time | Within 2 hours | ||||
| Item | Specs | Remarks | |||
| Chassis | Front axle | DANA | |||
| Rear axle | DANA | ||||
| Transmission | Auto transmission | ||||
| Suspension | Leaf spring | ||||
| Steering | Integral power steering | ||||
| Braking | Front disc and rear drum ; dual circuit air brake, WABCO ABS, slack adjuster | ||||
| Tyre | 215/75R17.5 steel rim Tubeless radial tire | ||||
| Battery | Maintenance-free type | ||||
| electronics | AC | 12000kcal/h | |||
| Defroster | yes | ||||
| Instrument | Bus instrument, English system | ||||
| Audio-system | MP5 TV | ||||
| Lights | Front and rear combination light. Fog light. | ||||
| Monitoring system | CCTV system with 5 cameras | ||||
| Bus facilities | Body | Semi-loaded | |||
| Passenger door | Front aluminum door | ||||
| Window | Sliding side window, laminated front windscreen and tempered rear-shield | ||||
| Passenger seat | 18 artificial leather passenger seats | ||||
| Interior | PVC duct, PVC composite side plate. | ||||
| Floor and floor cover | PVC floor, anti-slippery, flame retardant leather | ||||
| Paint | Solid paint | ||||
| Others | Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in engine cabin,USB connector at driver area,travel record with GPS | ||||
FAQ:
Q: Who we are?
A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.
Q: What can we offer?
A: 1. As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.
2. Buses and coaches CBU, KD kit, Chassis and Body frames
3. Spare parts including various charger for EV
Q: Do you accept customized service?
A: Yes. We can offer customized service according to your
requirements .
Q: What’s the delivery time?
A: Normally 20-35 workdays.
Q: Why choose us?
A: We guarantee professional service, competitive price with high quality vehicles.
|
