Black Soil Stabilization HDPE Geocell Tree Root Protection High Density Polyethylene

Categories HDPE Geocell
Brand Name: Geomax
Model Number: 100-330
Certification: CE
Place of Origin: ANHUI CHINA
MOQ: 1000 ㎡
Price: Negotiation
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day
Delivery Time: 10-20 days
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Material: High-density polyethylene (HDPE)
Type: 150-330
Color: Black
Welding space: 712mm
Thickness: 1.5mm
Height: 150

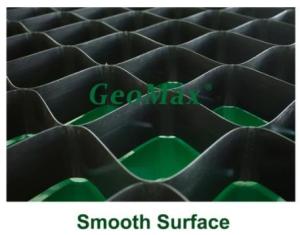

Surface: Smooth textured perforated
Standard: ASTM
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Black Soil Stabilization HDPE Geocell Tree Root Protection High Density Polyethylene


PRODUCT DESCRIPTION

Soil Stabilization HDPE Geocell With Ce


Product Introduction

Applications:
1. Used for the stability of railway roadbed.
2. To stabilize the desert highway roadbed.
3. Used in the governace of shallow water channel.
4. Used for the foundation reinforcement of retaining wall.wharf,and levee.
5. For the management of desert,beaches and river banks.

Specifications


Index PropertiesTest MethodUnitsValues
Material--100% Virgin HDPE
Carbon Black contentASTM D 1603%≥1.5
DensityASTM D 1603g/cm30.935-0.965
Sheet Thickness ± 3%ASTM D 5199mm1.5
Seam Peel StrengthUSACE GL-86-19KN/m≥14.2
Tensile strength at YieldASTM D 1603KN/m≥22
Environmental stress crack resistanceASTM D 1603hrs≥5000
OIT oxidation induction timeASTM D 1603min≥150
TypeGM330GM356GM400GM432GM445GM500GM660GM712
Welding Distance(mm) ± 3%330356400432445500660712
Cell Depth(mm) ± 3%50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%250 x 210260 x 225290 x 260320 x 275315 x 300360 x 300470 x 450510 x 475
Expanded Cell numbers(width×length)10 x 349 x 348 x 348 x 348 x 347 x 345 x 345 x 34
Expanded Section size (width×length) (m) ± 3%2.50 x 7.142.34 x 7.652.32 x 8.842.56 x 9.352.52 x 10.22.52 x 11.222.35 x 15.32.55 x 16.15
Expanded Section Area (m2) ± 5%17.8517.920.523.9425.728.7435.9541.18

Application


SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.


SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.


CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.


RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

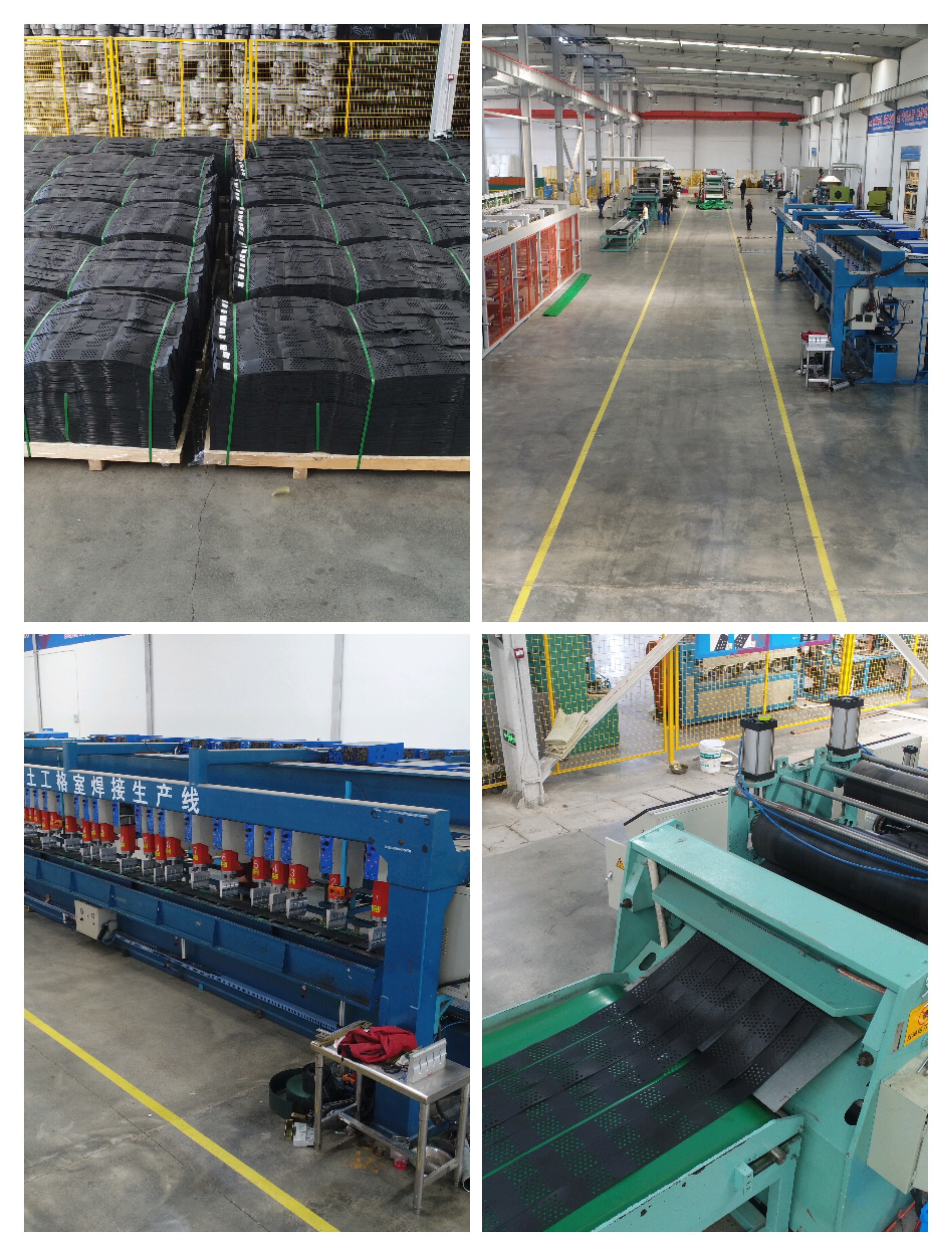

HCNS Manufacture


Our Certificates and HDPE Geocell Testing reports
