Motion Sensor Lumileds Luxeon 3030 Chip Solar Led Garden Light With Ip66

Categories LED Garden Light
Brand Name: Leyond
Model Number: LY-GL10020XX
Certification: CE,ROHS,ISO9001:2008
Place of Origin: China
MOQ: 1pcs
Price: Negotiate
Payment Terms: T/T, Western Union or Paypal
Delivery Time: 7-15 working days
Packaging Details: Carton box package
Power: 20W
Housing material: Die-casting aluminum
Input voltage: AC 100-240V 50/60HZ
Power efficiency: >=130lm/w
Beamangle: 100*100
Installation height: 3-5M
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Motion Sensor Lumileds Luxeon 3030 Chip Solar Led Garden Light With Ip66

Motion Sensor Lumileds Luxeon 3030 Chip Solar Led Garden Light With Ip66


Features:

  • The integration of design, no cable, the installation is very convenient.
  • The Mono-crystalline solar panel, LED lights, lithium battery, intelligent controller integrated Aluminum Alloy shell.
  • It used of 18650 lithium battery (lithium iron phosphate battery) fight the high temperature, keep long life.
  • When the products with optically controlled microwave induction infrared sensor, automatic adjustment of intelligent power on rainy days, extend rainy days.
  • It used of alloy material as the main structure, with good rust prevention, corrosion protection.
  • The wireless remote control setting device, adjustable lighting time, lighting power, automatic detection of battery voltage, read light power parameters, a human body induction function,as long as people go through when full power lighting, no automatic power down alf, restore energy saving mode.
  • Time control + light sensor control + motion sensor control 8> Motion and light sensor built in: solar street light goes on at dusk at 20% brightness
  • (Brightness adjustable). Can go from 20% power to full brightness when motion isdetected. Three Intelligent Modes: Bright / DIM / Recharge. 1,Bright: motion activates for lighting when motion is detected for security light and to save battery; 2,DIM: 20% lighting for
  • saving power when no motion(Brightness adjustable); 3,Off/Recharge: automatically turns off in daylight and goes into recharge mode. (working mode can be adjusted according toclient's demands)

Specification:

Par NO.

Parameter

LY-GL10020PWLY- GL10020NWLY- GL10020WW
Battery18650 lithium battery 12V 20 Ah
Beam angle100*100°
Pole diameter60*76*83MM
Light output20W
Luminous flux(lm)3000
LED Quantity(pcs)64
Color TemperaturePure white:5000-6500KWarm white:4000-4500KNeutral white:2700-3200K
Solar panel30W /18V monocrystalline silicon
CRI>80
Chip BrandLUXEON 3030
Operating timeFull power >12 hours ,Intelligent mode 4-5 days
Control ModeLight Control +Time Control
MaterialDie Casting Aluminum
Luminous efficiency(lm/w)>150
Lifespan(h)>50000
IP RatingIP66
Installation height

4~8M

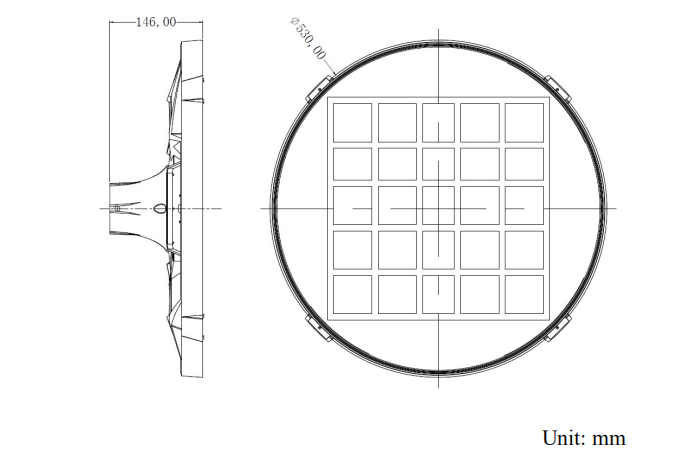

Size:

Distribution Curve:

Applications:

Suitable for the Sidewalk lighting,Square lighting,Lighting in public areas such as parks,
communities, industrial parks, etc.
Package:

warming:

  • Do Not Open the Light Engine;
  • Do Not Soak the LED Street Light into Water;
  • When open the package please assure that the light is perfect without any damage. If any damage is found, do not install the product;
  • There are pc fittings for the light. It should be handled with care.
Operation and Storage Condition:
  • Operation Ambient Temperature -15 to +45°C, Relative Humidity 20~90%
  • Storage Ambient Temperature -5 to +35°C, Relative Humidity 5~95%
  • The battery is charged every 3 months during the storage process. The storage period is 12 months. Products that exceed the storage period
  • must be re-inspected.
  • Mounting Height: Suitable for 3~5m height
