| Categories | Weld Neck Flange |
|---|---|
| Brand Name: | ST |
| Model Number: | flange 050 |
| Certification: | API、ISO |
| Place of Origin: | China |
| MOQ: | 1 Piece |
| Price: | 1-10 Pieces US $1.74/piece; >10 Pieces US $1.53/piece |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2 Million Ton/Year |
| Delivery Time: | 7-14 work days |
| Packaging Details: | Export Packing |
| Material: | Stainless Steel 304L |
| Specification: | 1/2" - 24" |
| Sealing Surface: | RF, FF |
| Standard: | ANSI, DIN, GB, JIS, ASME |
| Type: | Welding Flange |
| Product Name: | ANSI RF 304L Stainless Steel CL600 Forged Weld Neck Flange |
| Structure: | Flanges |
| Manufacturing Way: | Forging |

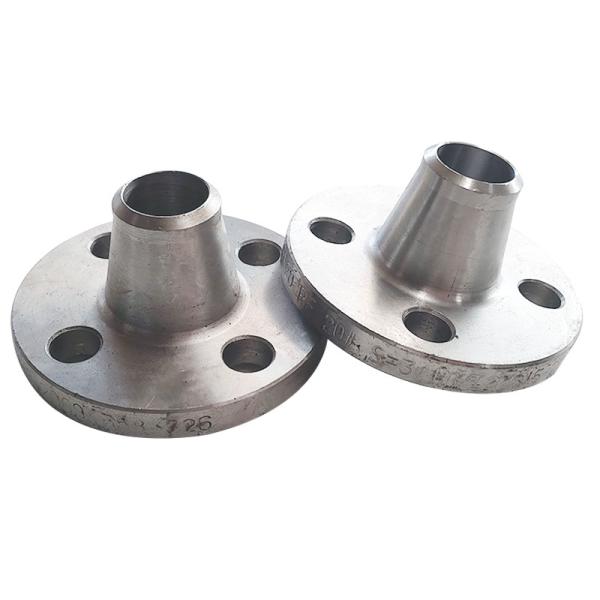

ANSI RF 304L Stainless Steel CL600 Forged Weld Neck Flange
Product Description
| Size | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Plate Fabricated Flanges |
| Flanges Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Welding Plate Flanges |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar Plate Blank Flanges |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar Square Plate Flange |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Types | Forged / Threaded / Screwed / Plate |
| Test Certificates | EN 10204/3.1B |
| Raw Materials Certificate | |
| 100% Radiography Test Report | |
| Third Party Inspection Report, etc | |
| Plate Flange Technique | Forged, Heat treated and machined |
| Connect Type | FF,RF,RTJ |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |

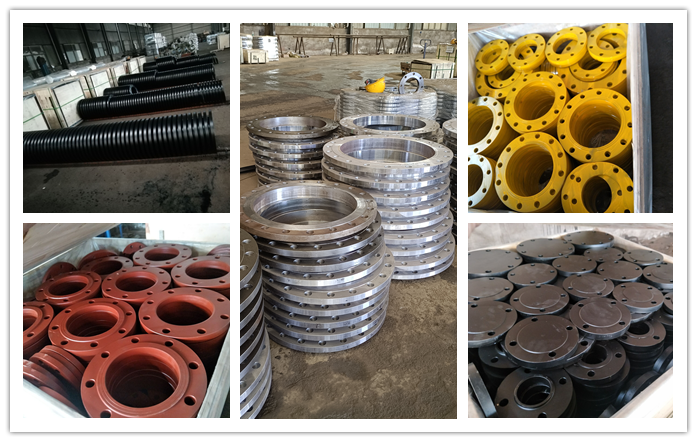

Detailed Photos

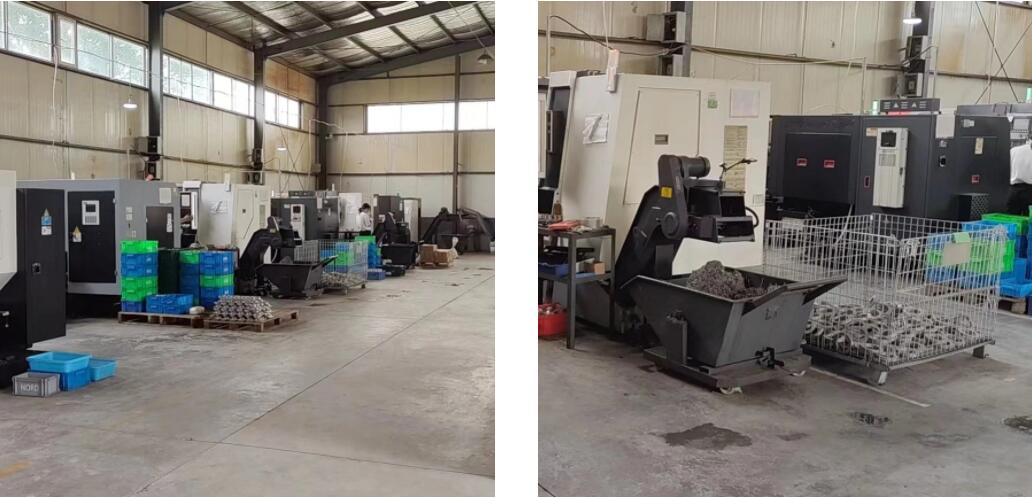

Workshop
Exhibition
|
