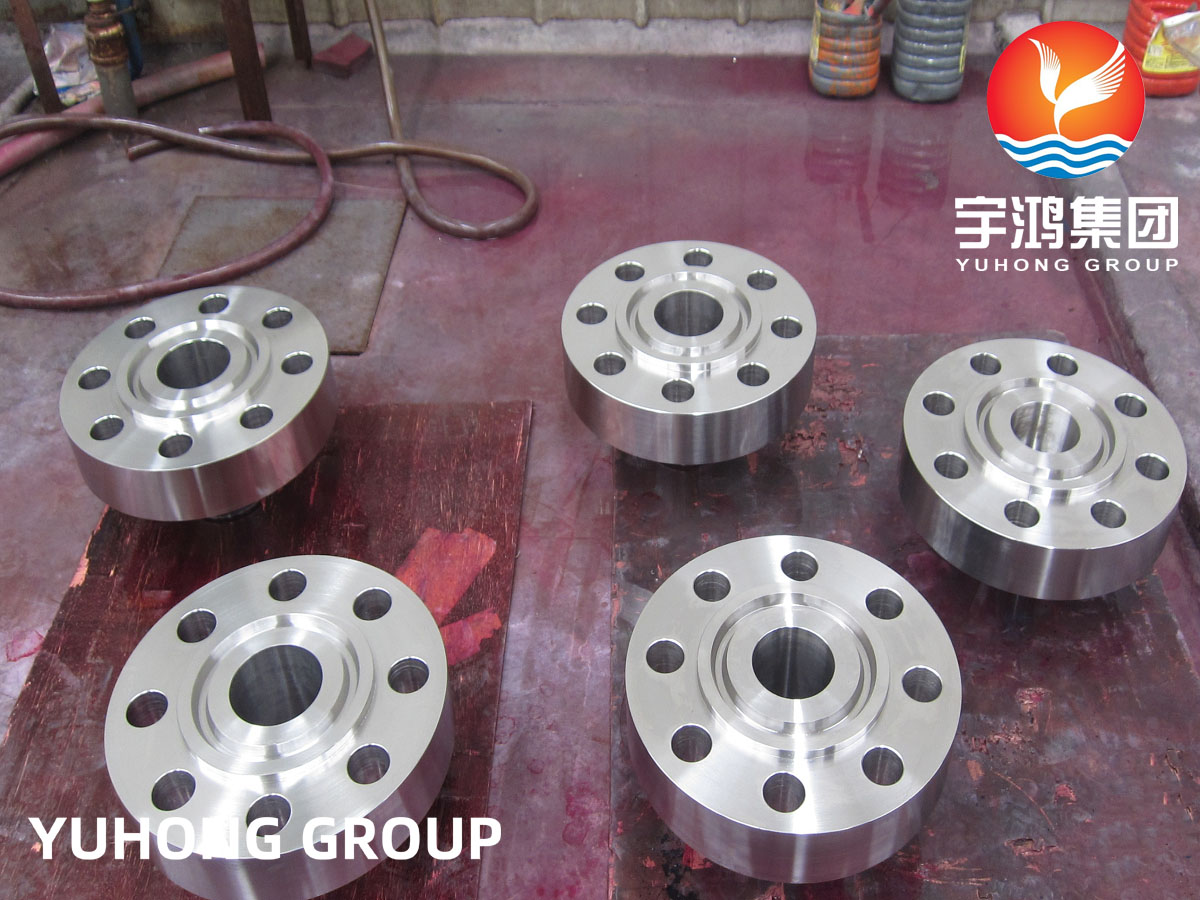

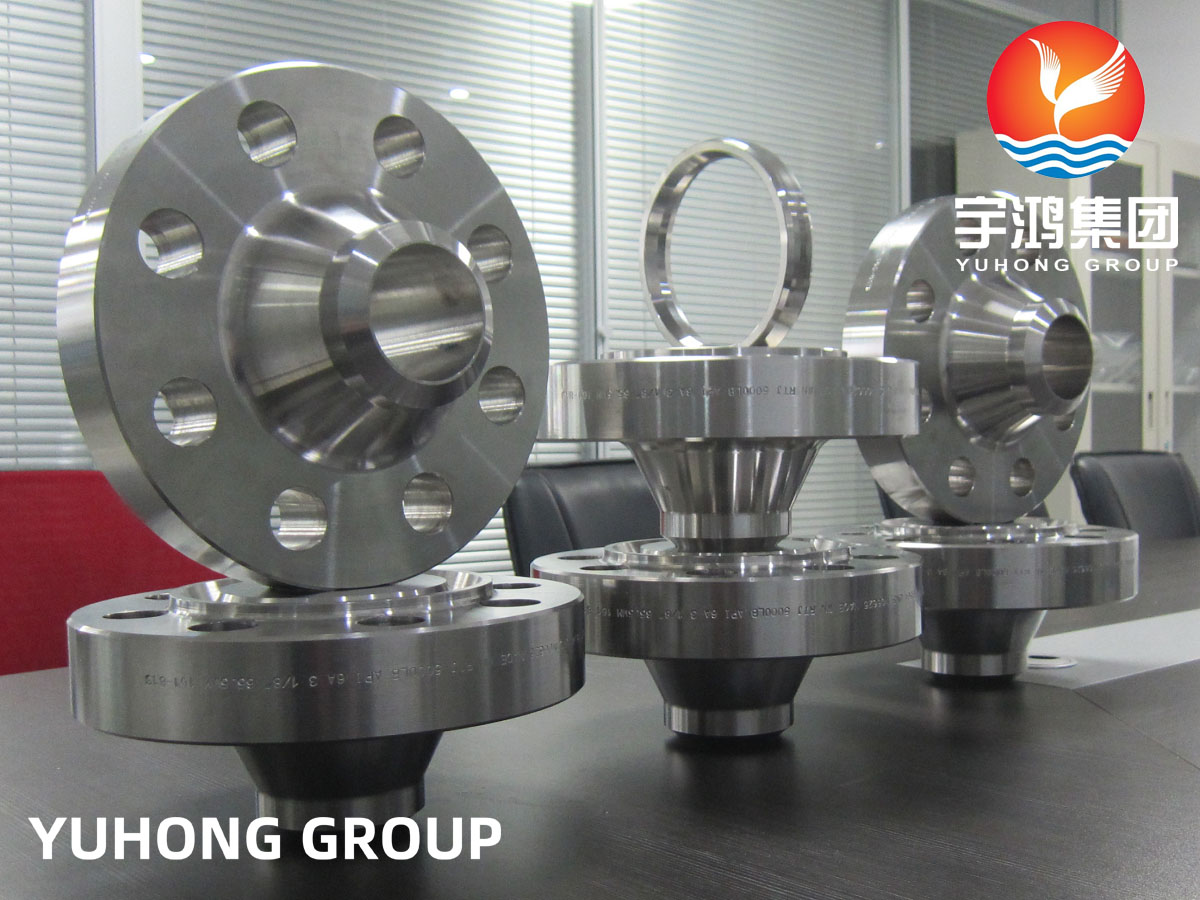

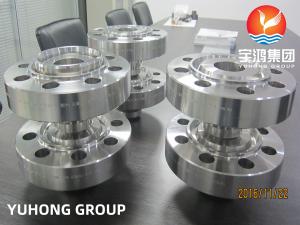

ASTM B564 NO6625 Nickel Alloy Steel Flanges Bridas

ASTM B564 NO6625 Nickel Alloy Steel Flanges Bridas


YUHONG supplies ASTM B564 NO6625 Nickel Alloy Steel Flanges, this flange has many features:


Corrosion resistant

Accurate dimensions

Can sustain high pressure & temperature load

Rust proof finish

Smooth transition from flange thickness to pipe

Ensure excellent stress distribution


Inconel 625 is a corrosion and oxidation resistant nickel alloy that is used both for its high strength and outstanding aqueous corrosion resistance. Its outstanding strength and toughness is due to the addition of niobium which acts with the molybdenum to stiffen the alloy’s matrix.

Alloy 625 has excellent fatigue strength and stress-corrosion cracking resistance to chloride ions. This nickel alloy has excellent weldability and is frequently used to weld AL-6XN. This alloy resists a wide range of severely corrosive environments and is especially resistant to pitting and crevice corrosion.


Specification Of ASTM B564 NO6625


TypeWN Flange,SO Flange, SW Flange, Blind Flange,Threaded Flange,etc
StandardANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size1/2″ to 48″NB
Class / Pressure150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face TypeFlate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Flange Delivery ConditionAs Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T, Machined
Flange Dimension StandardStandard - ANSI - ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, and ANSI B16.48
Other TestingNACE MR0175, NACE TM0177, NACE TM0284, CHARPY V-NOTCH TEST, RADIOGRAPHIC EXAMINATION, XRAY, ULTRASONIC EXAMINATION, LIQUID PENETRANT, MAGNETIC PARTICLE, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc.
Flange Value Added ServiceDraw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment
Coating Flanges FaceZinc Plated, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized, Oil Black Paint
Flange PackagingLoose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector


Chemical Composition Of ASTM B564 NO6625


ELEMENTCOMPOSITION (%)
Carbon0.10 max
Manganese0.50 max
Sulfur0.015 max
Silicon0.50 max
Iron5 max
Nickel58 min
Chromium20-23

Mechanical Properties Of ASTM B564 NO6625


ElementDensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
Inconel 6258.4 g/cm31350 °C (2460 °F)Psi – 1,35,000 , MPa – 930Psi – 75,000 , MPa – 5170.425

Applications


Fabrication Industry

Water Pipeline Industry

Chemical Industry

Natural Gas Industry

Oil And Gas Industry

Nuclear Power Plant

Waste Incineration Industry
