15 Bags/Min Small Volume 50L Talcum Powder Filling Machine

Categories Talcum Powder Filling Machine
Brand Name: Dession
Model Number: DS-Y-420DZ
Certification: CE,SGS,TUV
Place of Origin: foshan ,China
MOQ: 1 SET
Price: USD 21200 PER SET
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 SET per month
Delivery Time: 20-30 working days
Packaging Details: wooden case
Material: 304# Stainless Steel & Carbon
Optional Devices: Date printer, Air-filling Device, Punching Device
Cutting Form: Tooth Cut/Flat Cut
Measuring Form: Cup Metering
Film Roll Diameter: 300mm
Packaging Rate: 30~80bags/min
Dimension(L*W*H): (L)640*(W)700*(H)1580mm
Volume: 50L
Auto Grade: semi automatic
Use: auger powder / coffee powder / talcum powder
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

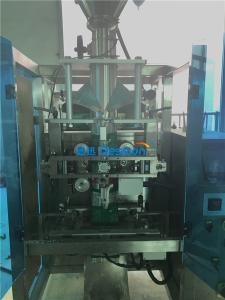

15 Bags/Min Small Volume 50L Talcum Powder Filling Machine

15 Bags/Min Small Volume 50L Talcum Powder Filling Machine


Best Quality China Manufacturer Talcum Small Volume Powder Detergent Filling Machine


1) Imported PLC full computer control system, color touch screen, easy to operate, intuitive and efficient.
2) Impoted servo film transport system, imported color code sensor, accurate positioning,
excellent overall performance and beautiful packaging.
3) A variety of automatic alarm protection functions to minimize losser.
4) Flat cutting, pattern cutting, linking cutting can be realized by changing the tools;easy operation with smooth bags.
5) Bag-making equipment can be changed according to specific requirement of customers and products.
6) Optional English or other languages screen display, easy and simple operation. Both packaging speed and bag length can be set with one click.

7) All machines have CE certification and ROSH certificate.


Main Specification:

Model200C320C320C plus
Film Width30-220mmMax.320mmmax.420mm
Film Thickness0.04-0.080.04-0.080.04-0.12
Bag Length30-180mm30-200mm80-300mm
Bag Width15-100mm50-150mm60-200mm
Film Roll diameterMax.300mmMax.300mmmax.320mm
Packaging Rate30-80bag/min30-80bag/min5-60bags/min
Measurement Range1-100ml50-500ml150-1500ml
Power220V,50HZ,1.2KW220V,50/60HZ,1.2KW220V,50/60HZ, 2.2kw
Machine SizeL640*W700*H1580mmL1100*W755*H1540mmL1217*W1015*H1343mm
Machine Weight300kg350kg650kg
Air consumptionnonenone0.6-0.8mpa
Style of bag-makingback sealed bag,3/4 sides sealed bagback sealed bag,3/4 sides sealed bagback sealed bag
The range of measuring1-100ml50-500ml150-1500ml
Hopper Volume10L20L50L
Packing Weight1-80g(as per bag shape and material)50-500g(as per bag shape and material)150-1000g(as per bag shape and material)
Packing Accuracy+-1%,depends on the materials+-1%,depends on the materials+-1%,depends on the materials
Filling Speed30-80bag/min30-80bag/min30-40bags/min

ModelDS-420DZDS-520DZDS-620DZDS-720DZDS-820DZ
Film WidthMax.420mmMax.520mmMax.620mmMax.720mmMax.820mm
Film Thickness0.04-0.12mm0.04-0.12mm0.04-0.12mm0.04-0.12mm0.04-0.12mm
Bag Length80-300mm80-350mm150-350mm100-450mm100-550mm
Bag Width50-200mm80-250mm200-300mm200-350mm180-400mm
Film Roll diameterMax.320mmMax.320mmMax.320mmMax.320mmMax.320mm
Packaging Rate30-40bags/min20-30bags/min15-20bags/min10-15bags/min8-10bags/min
Measurement Range150-1500ml150-2000ml150-3000ml150-4000mlMax.6000ml
Power220V,50/60HZ,single phase 20A220V,50/60HZ,3KW220V,50/60HZ,3KW220V,50/60HZ,3.6KW220V,50/60HZ,3.6KW
Machine SizeL1650*W510*H1635mmL3600*W2230*H2660mmL1700*W1250*H1780mmL1716*w1260*h1820mmL1780*W1350*H1950mm
Machine Weight450kg550kg650kg750kg850kg
Air consumption0.6-0.8mpa0.6-0.8mpa0.6-0.8mpa0.6-0.8mpa0.6-0.8mpa
Style of bag-makingpillow bag,standup bag, quad seal bagpillow bag,standup bag, quad seal bagpillow bag,standup bag, quad seal bagpillow bag,standup bag, quad seal bagpillow bag,standup bag, quad seal bag
The range of measuring150-1500ml150-2000ml150-3000ml150-4000mlMax.6000ml
Hopper Volume30L/50L/80L/100L50L/80L/100L50L/80L/100L50L/80L/100L50L/80L/100L
Packing Weight150-1500ml150-2000ml150-3000ml150-4000mlMax.6000ml
Packing Accuracyapprox.+-1% it depends on the materialapprox.+-1% it depends on the materialapprox.+-1% it depends on the materialapprox.+-1% it depends on the materialapprox.+-1% it depends on the material
Filling Speed30-40bags/min20-30bags/min15-20bags/min10-15bags/min8-10bags/min



Main Features

1. The section where the material contact is stainless steel as the body of machine is optional for complete orpartial stainless steel and all out equipments have passed the CE Standard.
2. Computer controller is the first patent of China; inverter and power switch are all imported with advanced technology.
3. Optional English or Chinese screen display, easy and simple operation.
4. High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.
5. Embedded sealing , enhanced structure of heat sealing intelligent temperature controller and excellent heat balance make all kinds of packaging materials possible with good performance, low noise, clear cutting pattern and strong sealability.
6. Packaging speed and length of bags can be set to some extent without further adjustment and parts changing. Packaging speed and length of bags can be set to some extent without further adjustment and parts changing.



Company information

FAQ

Q1: Do you have manual or operation video for us to know more about the machine?

Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.

Q2: How can I trust you for the first time business ?

Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.

Q3: Is engineer available to serve oversea?

Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q4: How can we make sure about the machine quality after we put the order?

Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.

Q5: Will you provides the door to door service?

Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
