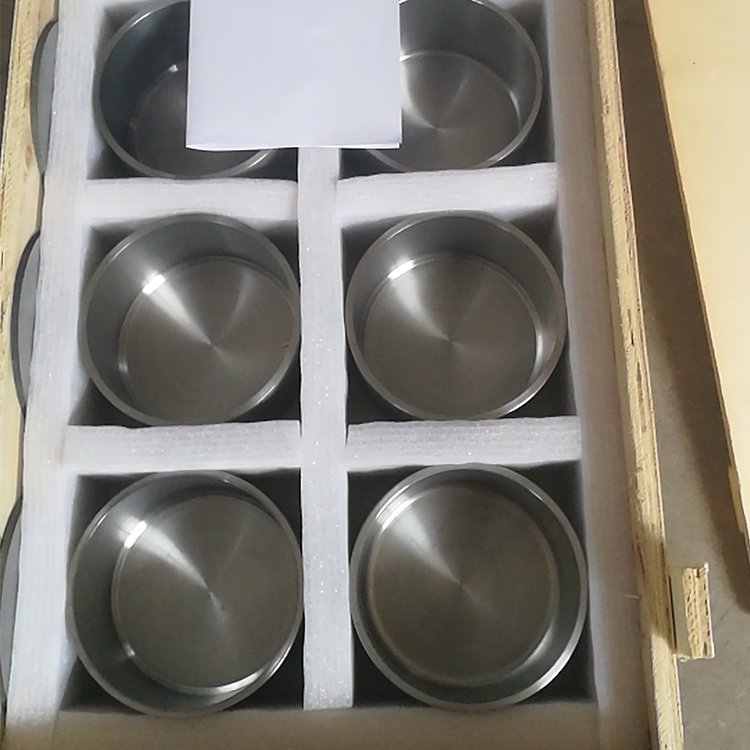

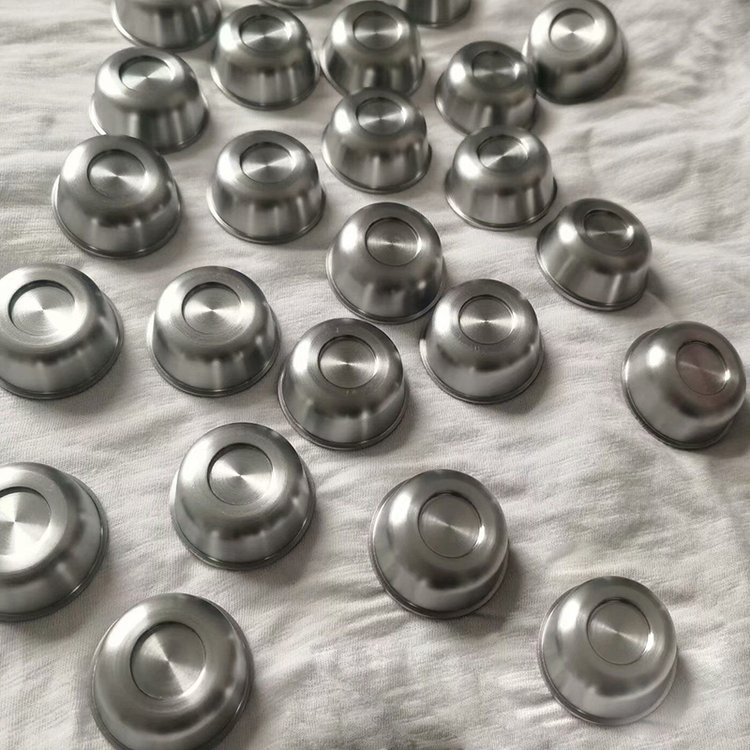

2610C Mo1 Molybdenum Evaporation Crucible Annealed For Vacuum Coating

Φ35x17mm Mo1 Molybdenum Evaporation Crucible for Vacuum Coating

Product name: Pure molybdenum crucible/liner

Purity: ≥99.95%

Density: 10.2g/cm3

Surface finish: polished

Quality standard: ISO 9001 mo1 molybdenum evaporation crucible for vacuum coating

Molybdenum Crucible Applications:

Since molybdenum has melting point up to 2610 ℃, so molybdenum crucible is usually applied as containers in quartz glass melting furnace, sapphire single crystal growth furnace, rare earth smelting furnace and other industrial furnace whose working temperature environment is generally above 2000 ℃. Molybdenum curcible is widely used as furnace crucible. Molybdenum crucibles with different sizes are used in rare earth industry, metallurgical industry, monocrystalline silicon, solar energy, artificial crystal and mechanical processing industries.

Because of high purity, high density, no internal cracks, the size of precision, inside and outside the wall smooth, and other characteristics of the molybdenum crucible on the sapphire crystal growth process of seed crystal success rate, pull crystal quality control, Desalination pot and service life. So Molybdenum crucible plays a very important role especially for the sapphire single crystal growth furnace.

Fabricated Molybdenum Crucible According to Drawing:

Molybdenum crucible belongs to molybdenum machining parts. Molybdenum crucible is made from molybdenum rod by using corresponding technology. We can also provide forged molybdenum crucible and sintered molybdenum crucible.

Molybdenum crucible is mainly divided into sintered molybdenum crucible, punching molybdenum crucible and spinning molybdenum crucible.

Properties and specifications of molybdenum crucible:

Molybdenum crucible has such properties as high purity, high density, no crack, precise size, smooth inside wall and outside wall.
