| Categories | VGA Fiber Extender |
|---|---|
| Brand Name: | HD |
| Model Number: | HD-VGA |
| Certification: | CE/ROHS/FCC/ISO 9001 |
| Place of Origin: | China |
| MOQ: | 1pc |
| Price: | negotiation |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 50000 pcs per month |
| Delivery Time: | 3-7working days after received deposit |
| Packaging Details: | Packed in carton |
| video resolution: | max 1920*1080@60hz |
| transport Port: | Fiber Optical |
| Output Connect: | VGA(Female 15pin) |
| Input connector: | VGA(Female 15pin) |
| Support: | 100M |
| warranty: | 1 year |
| Function: | HDMI to fiber converter |

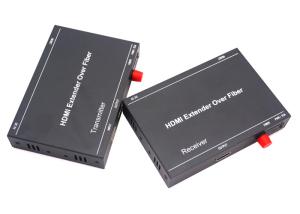

Fiber extender 4K2K , 2KM Fiber Optical HDMI DVI VGA Extender with RS232
The VGA Fiber optic extender provides extension of VGA signals long distances over one fiber optic cable, it supports high resolution up to 1080P, transmitter local output, RS232 signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
| Parameter | Description | ||
| Video | Standards | VGA | |
| Maximum pixel clock | 380MHz | ||
| Resolution | 1920x1200@60Hz / 1920x1080@60Hz 1600x1200@60Hz / 1680x1050@60Hz 1280x1024@60Hz / 1280x1024@75Hz 1280x800@60Hz / 1280x768@60Hz 1280x720@60Hz / 1024x768@60Hz / 1024x768@75Hz 800x600@60Hz / 800x600@75Hz | ||
| Impedance | 75Ω | ||
| Audio | Interface | 3.5mm earphone seat | |
| Format | 44.1K,48K,96K,176K,192K | ||
| Signal type | Stereo | ||
| RS232 | Interface | Industrial terminal | |
| Signal direction | Unidirectional | ||
| Baud rate | Self-adaptive, Max:115200bps | ||
| Data bits | 8 | ||
| Optical fiber | Interface | LC connector | |
| Fiber type | Single-mode single fiber | ||
| Wavelength | Single-mode 1310nm | ||
| Interface bandwidth | 2.97Gbps | ||
| Transmission distance | standard 10km | ||
| Other | Power supply | The power adapter: DC 5V/2A | |
| Power dissipation | MAX 6W | ||
| Temperature | Operating: -5℃ ~ +70℃ | ||
| Humidity | Operating: 5% ~ 90% | ||
| Dimension | 155*115*30mm | ||
| The warranty | 1 year free warranty | ||
2009 HANDAR OPTICS Established in Nov 2009 , with professional R&D and sales team who had been working in fiber optical telecommunication field since 2004 .
2010 HANDAR OPTICS started to produce full range of multi-functional video/audio/data/Ethernet/Telephone/Alarm to fiber converters and became to one of the leading manufacturers in this field
2011 HANDAP OTPCIS founded our engineers team to develop the SFP transceivers , and start to produce 155M and 1.25G SFP transceivers at Aug 2011
2012 HANDAR OPTICS started the project for 10G SFP+
2013 HANDAR OPTICS founded our engineers team to develop the Industrial level Ethernet Switch and POE switch . and stated to produce at the end of 2013 .
2014 HANDAR OPTICS started the project for 40G QSFP/CFP/CFP2
2015 HANDAR OPTICS improved our products for analog video/audio/data multiplexer to High-Definition series , include Analog high-definition TVI/CVI/AHD and Digital high-definition SDI/HDMI . We became to the leading manufacturer of such products in Shenzhen China .
2016 HANDAR OPTICS moved to new office with better workshop which allow us to offer better products and services to our partners .
2017 HANDAR OPTICS will keep focusing on fiber optical telecommunications field and offer to all our partners higher quality and better services .
|
