28BL03 Series Bldc Motor With 1:64 Reduction Ratio Gearbox 2N.M 48v 110rpm

28BL03 series bldc motor with 1:64 reduction ratio gearbox 2N.m 48v 110rpm

1. The DC brushless motor is composed of a motor body and a driver. The stator windings of the motor are mostly made into a three-phase symmetrical star connection, which is very similar to the three-phase asynchronous motor. The magnetized permanent magnet is glued to the rotor of the motor, and a position sensor is installed in the motor to detect the polarity of the motor rotor;

2. The driver is composed of power electronic devices and integrated circuits, etc., and can receive the start, stop and brake signals of the motor to control the start, stop and brake of the motor;

3. Accept the position sensor signal and the forward and reverse signal to control the on-off of each power tube of the inverter bridge to generate continuous torque;

4. Accept speed command and speed feedback signal to control and adjust the speed; provide protection and display, etc.;

5. It has fast response, large starting torque, and the performance of providing rated torque from zero speed to rated speed. The switching frequency of power components is much faster, which improves the performance of the drive motor;

6. There are already many microprocessors that have built the functions necessary to control the motor into the chip, and the volume is getting smaller and smaller; like analog/digital converters, pulse width modulation, etc.

Electrical Specification:

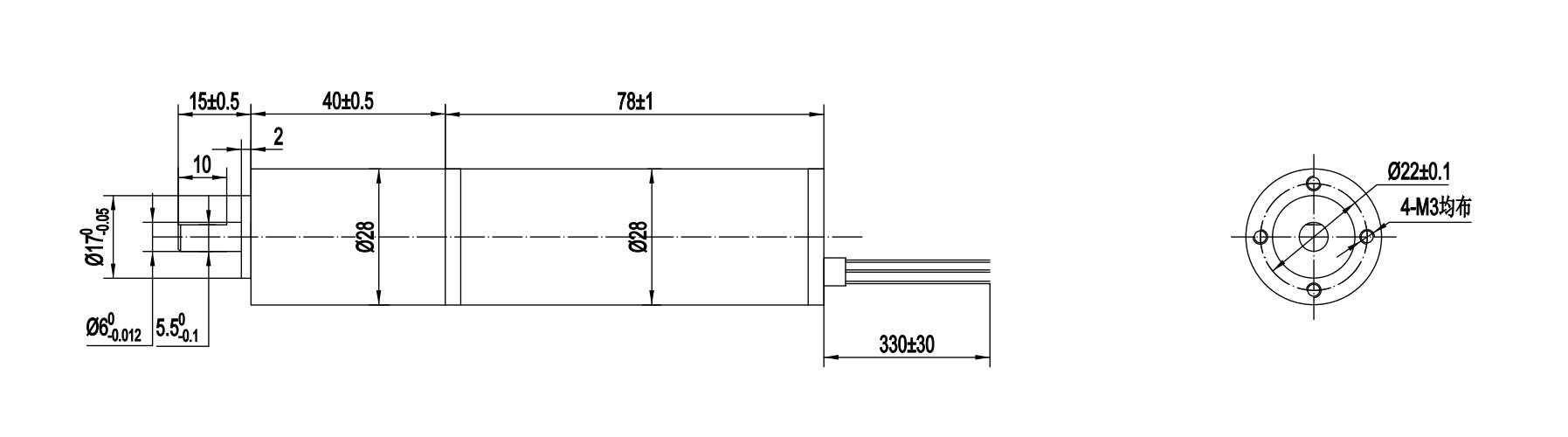

Mechanical Dimension

Product Range

Stepping Motor & Planetary Gearbox Motor & DC Brushless Motor & Servo Motor

Hetai Motor Production Process


High-quality Raw Materials

​Brushless Motor Final Inspection

Measure the Motor Length	Measure the Shaft Length	Measure the Ouler Circle
Measure the Screw Hole Distance	Measure the Length of Wire	Measure the Length of PVC

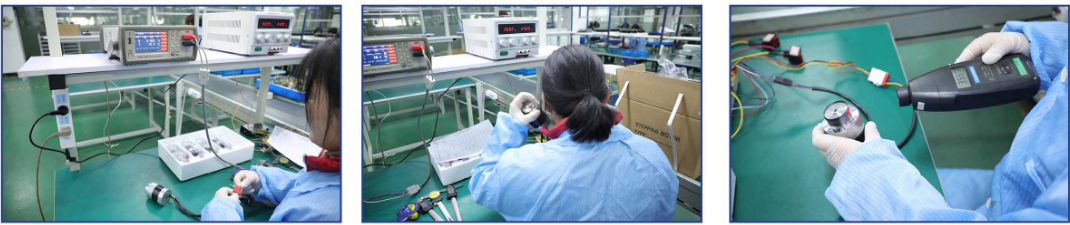

Test the Resistance	Listening	Test the speed

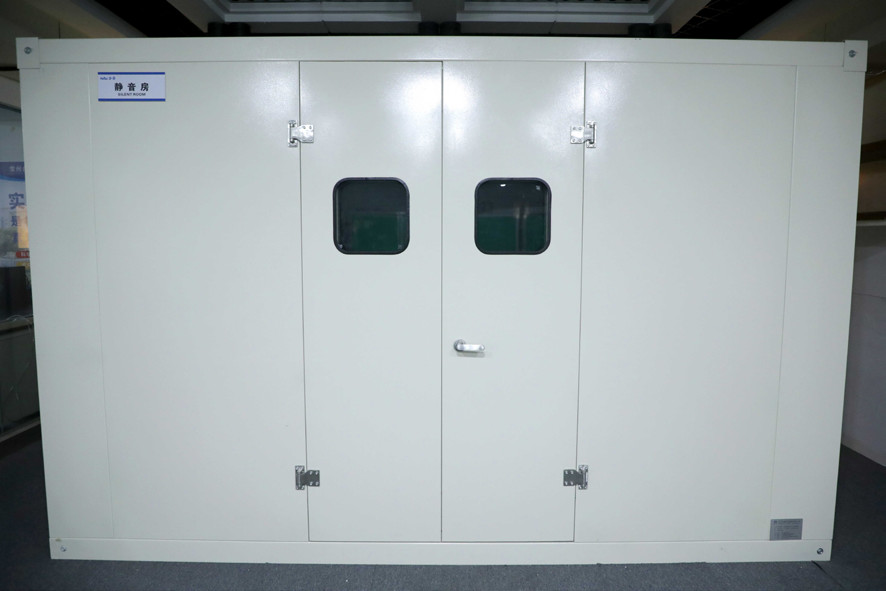

Professional motor testing equipment

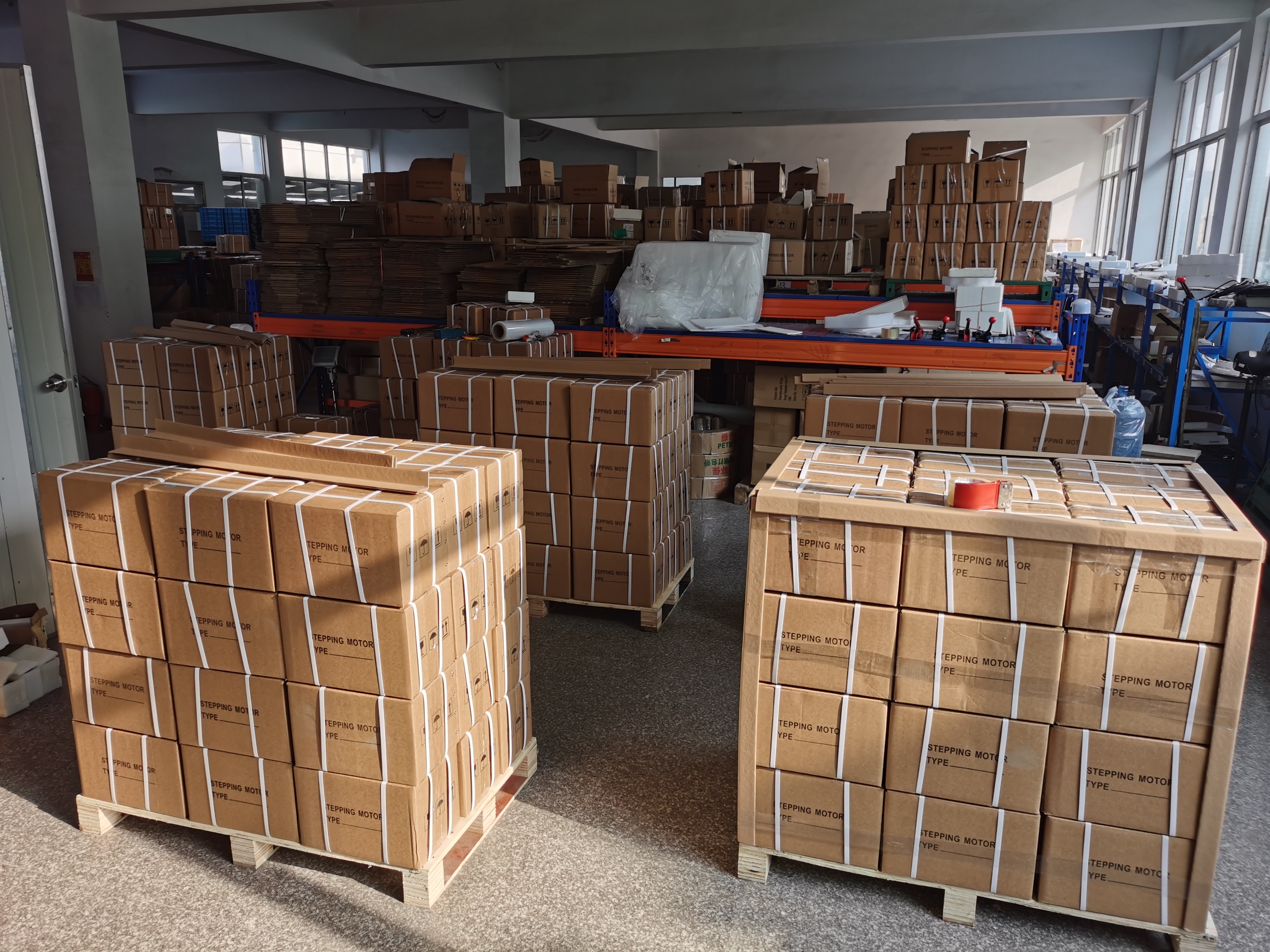

Package&Delivery

Changzhou Hetai Motors

Hetai is located in Changzhou, Jiangsu province. Our workshop area is over 15,000㎡. Since Hetai was founded in 1999, the specialization and scale of production have ensured to manufacture of five million motors every year.

Factory Scale Of Hetai

Since the reorganization in 1998, it has formed a certain scale of production and sales, with an annual production of more than 3 million motors.

Changzhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to providing professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as an assembly line, Automatic cylindrical grinder, and CNC machining centers as well.

Products Range Of Hetai

Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Changzhou Hetai Electric Appliance Co., Ltd. is a micro-motor manufacturing enterprise with strong technical strength. Specializing in the production of various stepper motors, stepper motor drivers, brushless DC motors, etc., with an annual output of 3 million units! Products are mainly used in printers, ticket printing machines, engraving machines, medical instruments, stage lighting, the textile industry, and other industries of automation equipment and instruments.

Market Range of Hetai

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

Certificate Of Hetai

When it comes to the quality aspect, Hetai was qualified by ISO Certificate, CE, Reach and  Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and development strength. With the support of a professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Awards as well as other awards during the years.

Overall, Hetai always puts customer needs a first place. Not only supplying a quality products, we believe to help customers make better product is the most important mission.
