| Categories | Vector Frequency Inverter |
|---|---|
| Place of Origin: | China |
| Brand Name: | Kinda |
| Model Number: | KD330 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 3~8 Day |
| Payment Terms: | TT |
| Supply Ability: | Adequate inventory |
| Starting torque: | 0.5Hz/150% torque, speed ratio 1:100, dynamic response <20ms, steady speed accuracy ±0.2% |
| start up: | High starting torque, ensuring smooth start, low frequency torque, no stalling for parking |
| intelligent control: | Speed sensorless open loop vector control |
| Energy saving: | Energy saving effect is obvious |
| design: | Modular design, compact structure, easy maintenance and enhanced product interchangeability |
| PCB protection: | Spray three anti-paint to protect the circuit board intelligently and efficiently |

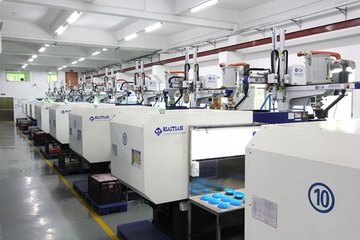

Injection molding machine Vector Frequency Inverter 3AC 18.5KW 380V~460V
The KD330 series inverter is a universal high-performance drive
vector control function inverter.
High-performance current control technology, low frequency and high
torque output, strong overload capability, superior stability and
dynamic performance.
Can be widely used in textile, paper, wire drawing, machine tools,
packaging, food, fans, pumps and various automated production
equipment drive changes.
| Item | Technical Index | Specification |
| Input | Input voltage | 3AC 380~460V±15% |
| Input frequency | 50/60Hz±5% | |
| Output | Output voltage | 0~rated input voltage |
| Output frequency | 0~6000Hz | |
| Operation command mode | Terminal control | |
| Keypad control | ||
| Serial communication control (Modbus) | ||
| Overload capacity | 150% / 120s, 160% / 60s, 180% / 10s, 200% / 1s. | |
| Starting torque | 0.5Hz/180% (SVC); 1Hz/150% (V/f) | |
| Speed control precision | ±0.5% (SVC) | |
| Carrier frequency | temperature and load characteristics 0.5~16.0kHz, automatically adjusted according to | |
| Frequency accuracy | Digital setting: 0.01Hz | |
| Analog setting: maximum frequency ×0.05% | ||
| Torque boost | Automatically torque boost; manually torque boost: 0.1%~30.0 | |
| Acceleration/deceleration mode | Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.0s~65000s | |
| Braking unit | build-in standard. | |
| DC braking | DC braking when starting and stopping | |
| DC braking frequency: 0.0Hz~maximum frequency | ||
| Braking time: 0.0s~25.0s | ||
| Jog operation | Jog acceleration/deceleration time: 0.1s~3600.0s Jog operation frequency: 0.0Hz~maximum frequency | |
| Simple PLC & multi-step speed operation | It can realize a maximum of 16 multi-step speeds running via the built-in PLC or control terminal. | |
| Built-in PID | Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.) | |
| Automatic voltage regulation | Keep output voltage constant automatically when input voltage fluctuating | |
| Control Function | Torque control | Torque control without PG |
| Wobble frequency control | Multiple triangular-wave frequency control, special for textile | |
| Timing/length/counting control | Timing/length/counting control function | |
| Fault protection function | Comprehensive protections include over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running data while failures happen. | |
| Input/output terminals | Input terminals | Programmable digital input: 7 multifunctional inputs, one can be work as high speed pulse input.3 programmable analog input:AI1, AI2, AI3: 0~10V / 4~20mA |
| Communication terminals | Build-in standard RS485 communication interface, support MODBUS-RTU communication protocol | |
| Output terminals | 2 relay outputs, | |
| 2 open collector outputs, | ||
| 2 anaalog outputs, 0~10V / 4~20mA | ||
| Human machine interface | LED display | Display frequency setting, output frequency, output voltage,output current, etc. Two lines display |
| Environment | Ambient temperature | -10~50°C, without direct sunshine. |
| Humidity | 90%RH or less (non-condensing) | |
| Altitude | ≤1000M: output rated power, >1000M: output derated | |
| Storage temperature | -20~60°C | |
|
