Multifunctional Air Cooled Hydraulic Crawler Skid Steer Loader With Attachments

Categories Mini Skid Steer Loader
Brand Name: Hightop
Model Number: HT430
Certification: CE,EPA,ISO,TUV
Place of Origin: China
MOQ: 1 Set
Price: Negotiation
Payment Terms: Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability: 20 set per month
Delivery Time: 5-14 work days
Packaging Details: Wooden case
Product Name: Mini Skid Steer Loader
Machine Weight: 830 kg
Engine Brand: Briggs & Stratton
Bucket capacity: 0.12CBM
Dimension(Long * Breadth * High): 1485*1150*1300mm
Warranty of core components: 1 Year
Company Info.
Shandong Hightop Group
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Multifunctional Air Cooled Hydraulic Crawler Skid Steer Loader With Attachments

China Multifunctional Hydraulic Mini Skid Steer Loader With Attachments


Small Skid steer loader, multifunctional engineering vehicle, multifunctional engineering machine. Realized dedicated chassis vehicle steering wheel equipment, wheel train, all-wheel drive, slip steering. No matter from product appearance, lifting height, weight lifting, and operation comfort, it is the best in the country. The machine is simple to operate, easy to replace auxiliary equipment and easy to maintain. It is widely used in different fields, especially in municipal engineering. There are dozens of matching assistants, which can be selected according to different working environments and construction requirements to complete construction projects, making your work easier and simpler.


Technical parameters:


Lifting Capacity KG
430
Engine Type
Briggs Stratton 3864
Engine Capacity(kw/Hp)
18.2/23
Rotation speed per minute(rpm)
3600
Maximum torque NM/rpm
50/3000
Cooling method
Air-cooled
Fuel/Fuel tank capacity
Gasoline 95#/20L
Drive System
Hydraulic four-wheel drive
Speed(km/h)
0-6(By Scale)
Enhancement of capabilities(kg)
300
Hydraulic drive system(L/bar)
50/180
Hydraulic oil tank capacity(L)
35
Standard Tires
18*8.5-8
Electrical system(V)
12
Battery Capacity(Ah)
36
Braking System
Hydraulic enclosed brake
Drive
Skid steering
Overall Dimensions(MM)
1485*1150*1300
Weight(KG)
830

Features:

1. Folding pedal design, the driver can stand up or walk behind to operate the machine.

2. The instrument panel is clearly marked and easy to operate.
3. The joystick handle is optional, and the operation is more comfortable.
4. It is a machine that is easier to maintain, the upper cover and rear guard can be easily opened and disassembled, and the waste oil can also be easily discharged to the body, and parts such as filters, engine oil, etc. can be easily replaced. Oil filters, spark plugs, etc.

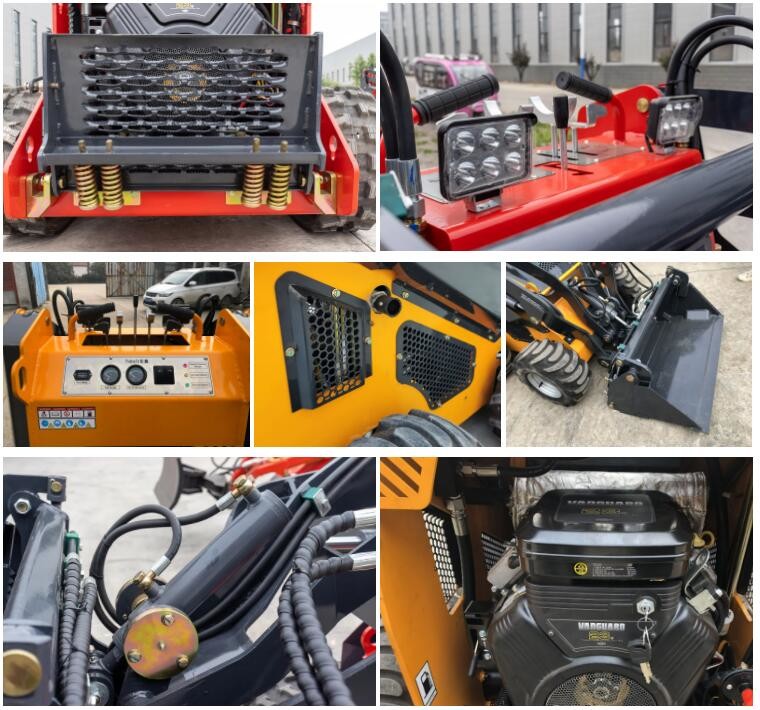

Product Details:
Cheap Multifunctional Air Cooled Hydraulic Crawler Skid Steer Loader With Attachments for sale
