130°C Humidity Test Chamber Environmental Temperature Chamber Battery

Categories Humidity Test Chamber
Brand Name: LIB
Model Number: TH-225
Certification: CE,RoHS
Place of Origin: China
MOQ: 1 Set
Payment Terms: L/C, D/A, D/P, T/T, Western Union, paypal,MoneyGram,
Supply Ability: 180 sets / quarter
Delivery Time: 3-14 days
Packaging Details: Wooden Box standard export package
Name: Battery Environmental Chamber
Low Type: -20℃/-40℃/-60℃/-70℃/-86℃
Controller: PLC,PC Link, R-232 interface,USB,APP
Humidity Range: 10% - 98% RH
Temperature range: -20℃ ~+150 ℃
Exterior material: A3 Steel Plate
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

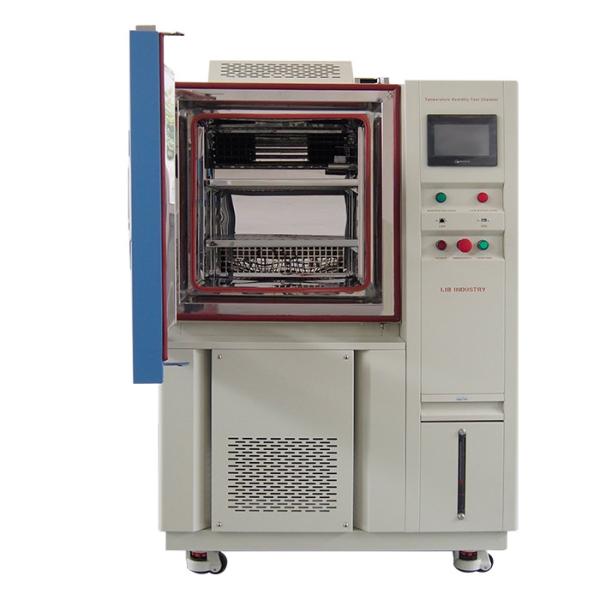

130°C Humidity Test Chamber Environmental Temperature Chamber Battery

130°C Temperature Test Battery Environmental Chamber

Description


130°C Temperature Test Battery Environmental Chamber,The standards for assessing the safety of lithium-ion batteries mainly include international standards (such as IEC standards), national or regional standards (such as JIS, CB, EN standards, etc.) and industry standards (such as UL, IEEE, SJ, QB standards, etc.).


In these existing standards, the specified test methods at high temperatures mainly include thermal abuse tests, temperature cycle tests, high temperature placement tests, etc.


Main Technical Parameter



Name

130°C Temperature Test Battery Environmental Chamber

Model

TH-225

Internal Dimension (mm)

500*600*750

Overall Dimension (mm)

960*1150*1860

Temperature Range (℃)

A: -20℃ ~+150 ℃ B:-40℃ ~+150 ℃ C:-70℃ ~+150 ℃

Humidity Range (R.H)

20% ~ 98% RH

Temperature fluctuations

± 0.5 ℃

Temperature deviation

± 2.0 ℃

Humidity Deviation

± 2.5% RH

Heating Rate

3 ℃ / min

Cooling Rate

1 ℃ / min

Interior Volume

500 liters

Controller

Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB

Cooling System

Mechanical compression refrigeration system

Interior Material

SUS304 stainless steel

Maximum Noise

65 dBA

Power Supply

380V


Relative Humidity Climate Environmental Chamber


Thermal Abuse Test

●Battery thermal chamber,The thermal abuse test method specified in IEC 62133:2002 is to place a fully charged battery in a natural or circulating air convection incubator after being stabilized at room temperature.
●The environmental test chamber is heated to 130°C±2°C at a rate of 5°C/min ±2°C/min.
●Maintain this temperature and stop the test after 10min to check if the battery catches fire or explodes.
●The thermal abuse test of IEC 62133 is used by national and foreign standards such as JIS C8712, YD 1268, UL 1642 and so on.

●Battery environmental test chamber,The thermal abuse test is generally used to assess the safety of the battery cell when placed under high-temperature conditions, and the battery sample is in a fully charged state during the test, and the sample is not charged and discharged during the test.
