Categories | Amplifier IC Chips |
---|---|
Brand Name: | Analog Devices |
Model Number: | HMC1086F10 |
Certification: | ROHS |
MOQ: | 1pcs |
Price: | Negotiated |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1000pcs |
Delivery Time: | 3-15days |
Packaging Details: | Tray/REEL |
Stock: | 8000 |
Manufacturer Product Number: | HMC1086F10 |
Supply Voltage Range: | 3V to 5V |
Frequency Range: | DC to 31GHz |
Insertion Loss: | 1.4dB typical |
Isolation: | 40dB typical |
Package Type: | SMT QFN-16 |

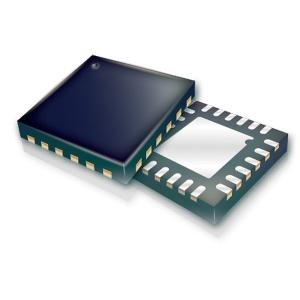

HMC1086F10 - Wideband Non-Reflective SPDT Switch
Find information here in stock.xlsx
Introduction:
The HMC1086F10 is a wideband non-reflective SPDT switch designed for use in a variety of RF and microwave applications. It features a high isolation, low insertion loss, and fast switching speed, making it an ideal solution for high-performance signal routing. The HMC1086F10 also provides a high level of reliability and durability, making it suitable for use in harsh environments.
Applications:
Wireless Infrastructure, Radar Systems, Test and Measurement
Product Attributes:
Brand | Analog Devices |
---|---|
Supply Voltage Range | 3V to 5V |
Frequency Range | DC to 31GHz |
Insertion Loss | 1.4dB typical |
Isolation | 40dB typical |
Switching Speed | 10ns typical |
Package Type | SMT QFN-16 |
More Products:
FAQ:
Q1: What is the supply voltage range of the HMC1086F10?
A: The HMC1086F10 operates on a supply voltage range of 3V to 5V.
Q2: What is the frequency range of the HMC1086F10?
A: The HMC1086F10 has a frequency range of DC to 31GHz.
Q3: What is the insertion loss of the HMC1086F10?
A: The HMC1086F10 has a typical insertion loss of 1.4dB.
Q4: What is the isolation of the HMC1086F10?
A: The HMC1086F10 has a typical isolation of 40dB.
Q5: What is the switching speed of the HMC1086F10?
A: The HMC1086F10 has a typical switching speed of 10ns.
Q6: What is the package type of the HMC1086F10?
A: The HMC1086F10 comes in a SMT QFN-16 package.
![]() |
