CE V Groove Cutting Machine Metal Curtain Wall Panel Horizontal V Cutting Machine

Categories V Groove Cutting Machine
Brand Name: JM
Model Number: GSVM
Certification: ISO9001,CE
Place of Origin: Wuxi,China
MOQ: 1 set
Price: Negotiate
Payment Terms: T/T
Supply Ability: 30 sets per mouth
Delivery Time: 10-30days
Packaging Details: Waterproof packaging
Colour: Blue and white; Customizable
Presser foot power: Hydraulic
Input voltage: 380V; Customizable
Machinable length: 4000mm;Customizable
Machinable width: 1500mm;Customizable
Number of Cutterbars: 4 pcs
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

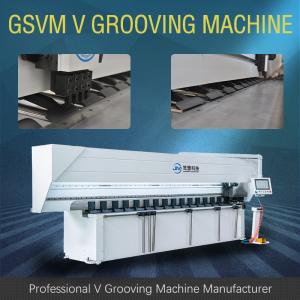

CE V Groove Cutting Machine Metal Curtain Wall Panel Horizontal V Cutting Machine

Hydraulic V Groove Cutting Machine for Metal Curtain Wall Panel


Mirror like groove surface
The lengthened heavy slider guide rail group, combined with the more than ten years of experience of the assembly master, realizes the ultra stable grooving of the tool rest on the board surface. As a result, SUBIERUI v grooving machine can obtain a very high quality groove surface - the groove surface is as smooth as a mirror.

Multiple auxiliary presser feet
The number of auxiliary presser feet is large and the distribution is scientific. Multiple auxiliary presser feet in two directions are hydraulically controlled, and the workpiece clamping is more stable and reliable.
Automatic Cycle Programming
The system can automatically cycle the workpiece according to the amount of cycle input without input one by one, which greatly reduces programming time and improves productivity.
No.NameParameterUnit
1Max. Width of metal sheet1500mm
2Max. Length of metal sheet4000mm
3Max. thickness(Stainless steel)6mm
4Min. Thickness of metal sheet0.4mm
5Min.distance of the V from edge10mm
6Max. cutting speed of X axis120m/min
7Max .return speed of X axis120m/min
8Max.distance of Y axis1250mm
9Resolution in Y axis0.001mm
10Repeated positioning accuracy±0.01mm
11Resolution in z axis0.001mm
12Repeated positioning accuracy±0.01mm
13Motor powerX axis5.5kW
Y,Z axis1.0
14Overall dimensionLength5700mm
Width2600
Height2000
