Water Floating Sediment Curtain Baffle Permeable Silt Curtain Turbidity Control In Water

Categories Silt Curtain
Brand Name: JiuBei
Certification: ISO
Place of Origin: Shandong, China
MOQ: 1unit
Price: usd50/m
Payment Terms: L/C, T/T
Supply Ability: 3000m/month
Delivery Time: 7working days
Packaging Details: Standard sea worthy packaging
BOOM material: Rubber AND foam filled
Skirt material: PVC
Boom Diameter: 600`1500mm
Unit length: 20m/length
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Water Floating Sediment Curtain Baffle Permeable Silt Curtain Turbidity Control In Water

Permeable Floating Silt Curtain for Turbidity Control in Water


PVC Silt Curtain is the main product to protect the environment in the sea and large river. It can prevent the silt when reclamation, port construction and other project.The main purpose to protect the environment is to stop the suit from being widely diffused. The application of using silt curtain is an useful and popular way at the moment.

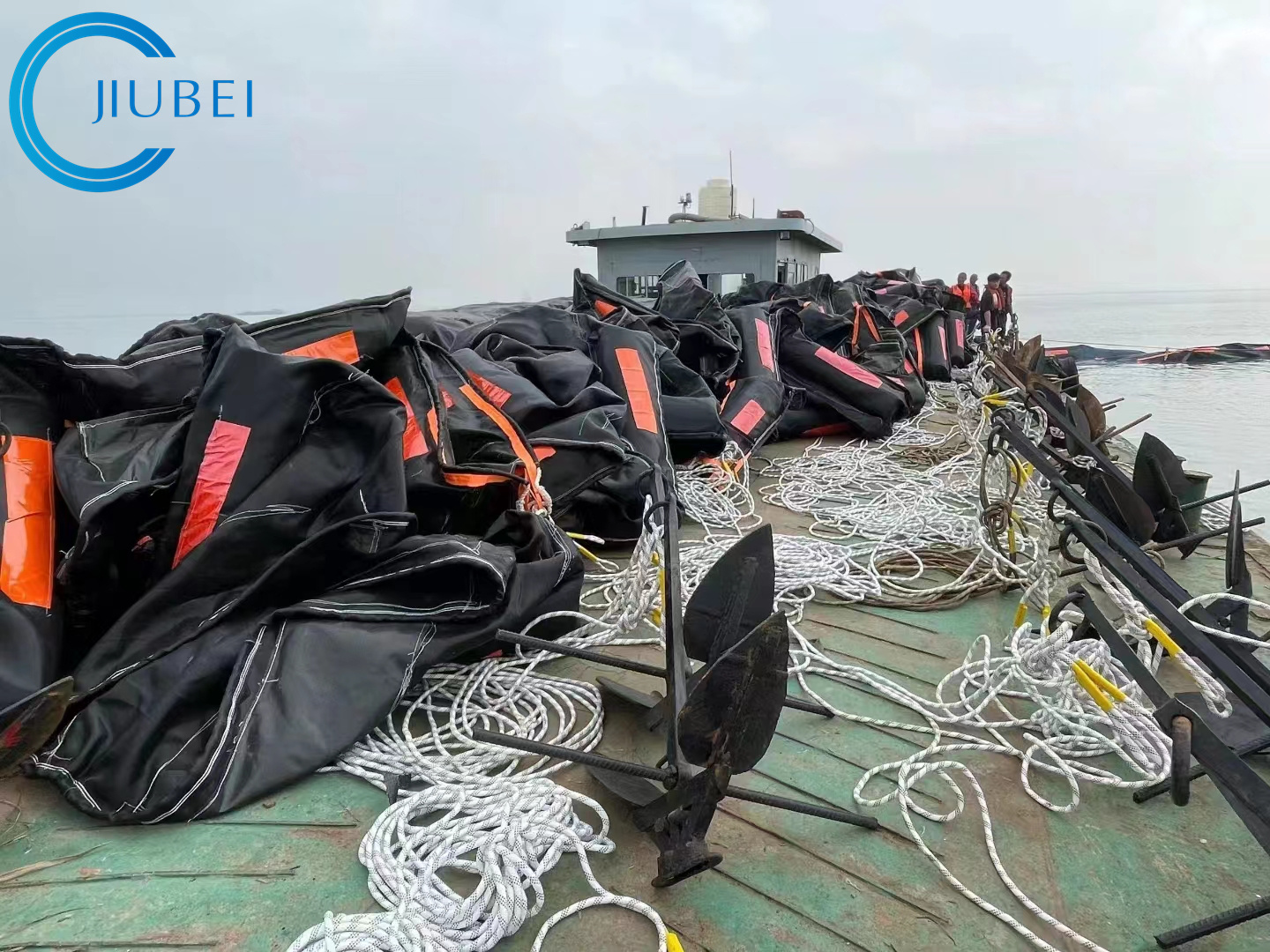

The Silt Curtain includes the floating and skirt. The floating pocked is PVC material. It's UV restraint. The floating is EPS, and sealed with plastic film. The floating is very soft, it can be folded one by one. The chain is at the bottom of the skirt to make sure of its stability.The rope and reinforcing belt as well as chain are stressed in longitudinal. There is anchor socket on both sides of silt curtain in order to connect each piece easily.


Technical Parameters:

Technical Date
ModelWGJ600WGJ800WGJ900WGJ1000WGJ1100WGJ1500
Freeboard(mm)210
Draught(mm)280
Section’s length(m)20
Working conditionTention strength(kn)60658090100130
Wave height(m)0.60.751.01.51.52.0
Wind speed(m/s)101515152020
Current speed(knot)1.21.52.03.03.03.0

Note: We pursue perfect products quality, if any change, subject to confirmation from both parties.
