SNTP SFP Ethernet Switch 8 Port 10/100/1000T + 4 Port 1G 2-Port 10G SFP+

Industrial L2+ 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch

Industrial Managed SFP+ Ethernet Switch Advantages

Support 8x10/100/1000Base-T + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP
10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
Support connecting USB-C port for easy management, without the need of RS232 serial port at all
9K Bytes Jumbo Frame

Overview

ETH-IMC2408M Series is the managed 8-port 10/100/1000Base-T + 4-port 1000Base-X SFP + 2-port

10G Base-SR/LR SFP+ hardened Ethernet switch. The Switch has 8 TP ports and 6 fiber ports. TP (RJ45)

supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X

SFP and 10G SFP+ support 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease

of use, the product is a great choice for integrating networks consisting of network devices such as IP

cameras and wireless access points between remote locations.

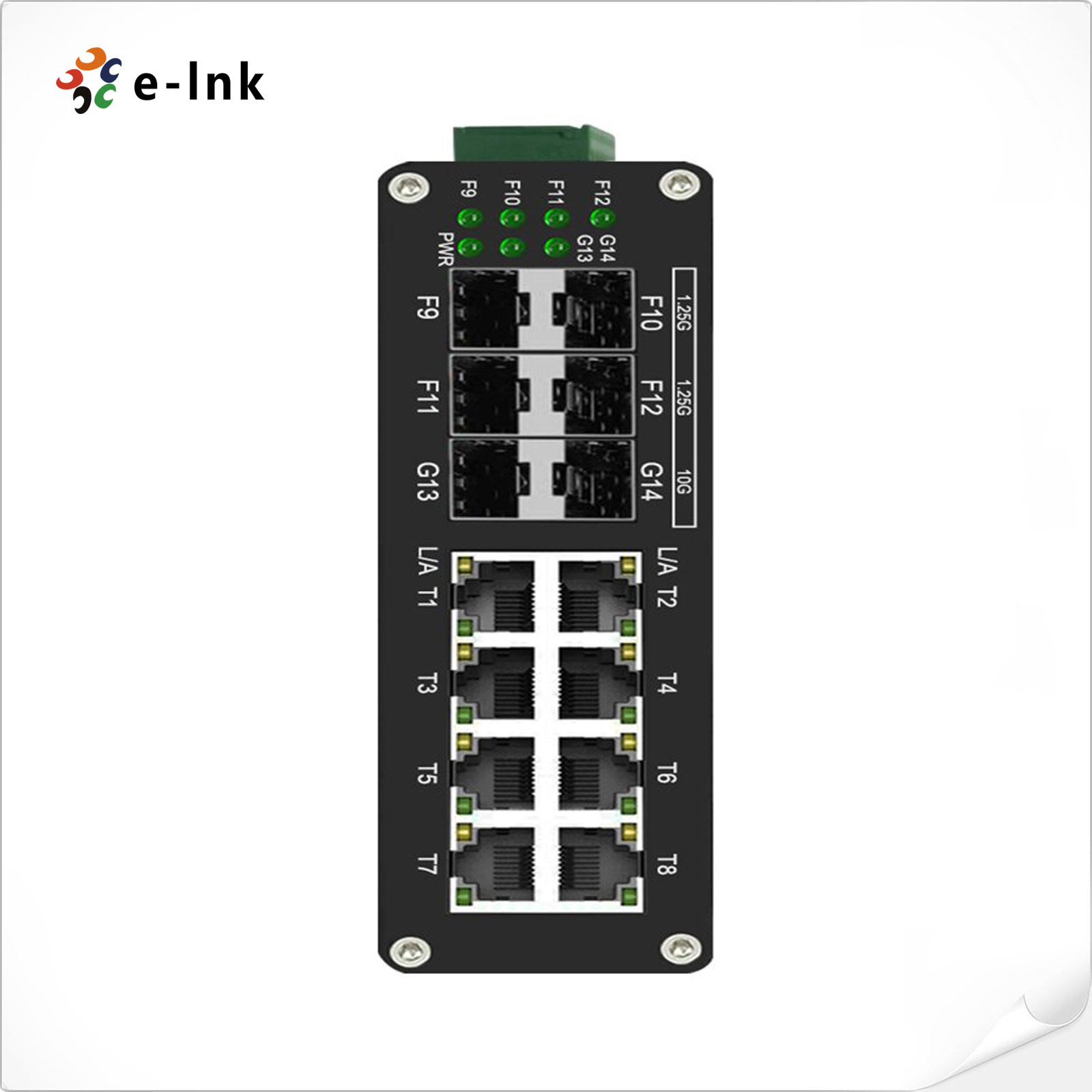

Industrial Managed SFP+ Ethernet Switch Picture

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE802.3ae 10GBase-R
	IEEE802.3p QoS
	IEEE802.1d Spanning Tree
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
	1,488,000,000pps (10000Mbps)
Packet Buffer Memory:	12M bits
Processing Type:	Store-and-Forward
Backplane bandwidth	110Gbps
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	8K MAC Addresses
Interface
Connector:	8 x RJ45
RS485:	1 x RS485 (Optional)
Optical Port:	4 x 1000Base-X SFP 2 x 10G Base-SR/LR SFP+
USB-C:	1 x USB-C (for Management)
RS485 Serial Interface (Optional)
Physical interface	Industrial standard 3-pin screw terminal
Data type	1Ch RS485 Bi-Direction
RS-485 signals	Data+, Data-, GND
Serial port line distance (copper)	1000 meters
Baud rate	0 ~ 800kbps

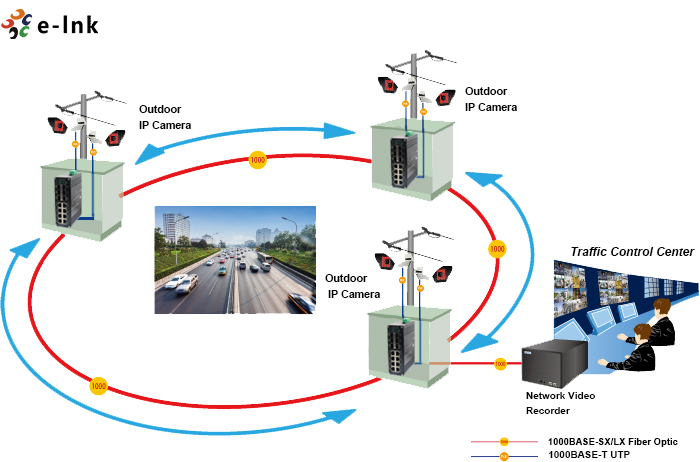

Application

Ordering Information

Model	Description
ETH-IMC2408M	Industrial L2+ 8-Port 10/100/1000T + 1-Port RS485 + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed
Power Options	► DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
