Non Contact Water Flow Velocity Meter Portable Radio Wave

Categories Intrinsically Safe Instrument
Brand Name: TOPSKY
Model Number: LT-SVR1.0
Place of Origin: China
MOQ: 1 set
Price: USD1200-USD1600
Payment Terms: T/T
Supply Ability: 200 Sets/Month
Delivery Time: 15 working days
Packaging Details: Export package
Name: Non-Contact Portable Radio Wave Water Flow Velocity Meter
Measurement range:: 0.03 ~ 18.0m/s
Battery:: 2800 mAh lithium ion battery
Radio radial angle:: 12 °
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

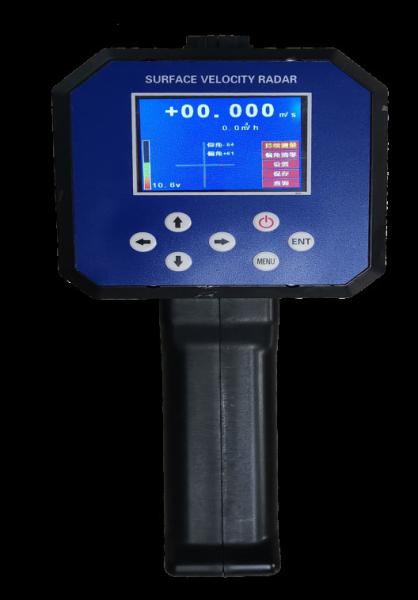

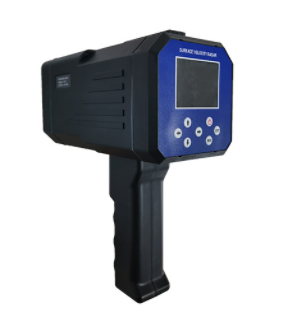

Non Contact Water Flow Velocity Meter Portable Radio Wave

Non-Contact Portable Radio Wave Water Flow Velocity Meter


1. Product overview
Radio -wave flow velocity instrument is an advanced flow rate measurement instrument, which uses radar technology to achieve simple and fast non -contact surface flow measurement. The instrument is small and light, easy to carry, and it is very suitable for on -site detection of instruments such as floods or rapids such as floods or rapids.It has integrated many leading technologies. For example, the use of precision plane narrow -band array radar sensors, FFT digital signal processing, flow rate recognition, vertical and horizontal angle of automatic correction, etc.; The maximum flow velocity that can measure is 20m/s, and the detection sensitivity is high. The flow velocity instrument has a large color screen LCD LCD. The embedded guideline -style menu is very convenient for users to operate.
2. Scope of application
Firefighting , emergency and other safety fields
3.Product characteristics

For single use, the weight is less than 1kg, it can be measured or placed on the triangle (option);

Non -contact operation is not affected by sediment or corrosion of the water body;

The horizontal and vertical direction angle automatic correction;

A variety of measurement modes can be measured quickly or continuously;

Built -in large -capacity lithium -ion batteries can be used for more than 10 hours continuously;

A variety of charging methods are available, and can be charged using AC, vehicle and mobile power.

4.Main technical specification

1. Measurement range: ≥ 0.03 ~ 18.0m/s;

2. Temperature range: -30 ~+70 ° C;

3. Battery: 2800 mAh lithium ion battery

4. Weight: ≤1kg;

5. Measurement accuracy: ± 1%± 0.03m/s

6. Radio radial angle: 12 °

7. Standard power of radio wave emission: 10mW

8. Radio frequency: 24GHz

9. angle compensation: vertical angle automatic

10. Storage size: 100 measurement result

Cheap Non Contact Water Flow Velocity Meter Portable Radio Wave for sale
