Large Force Temperature Humidity Vibration Testing Machine 3 Axis

What is vibration testing?

In the environmental laboratory, vibration testing is per· formed as part of a company's quality assurance pro- gramme together with for example temperature and hu- midity tests to ensure product reliability.

Vibration Test Systems are used to evaluate resonant frequencies of product and package designs and simulate the random vibration that occurs in the distribution or in-use environment.

Download document for storage -- click here ----→​vibration temperature test machine THV-Volume.pdf

Name	3 axis large force temperature humidity vibration testing machine -Environmental Chamber
Model	THV-408(A~F)	THV-1000(A~F)	THV-1500(A~F)
Internal Dimension WxHxD(mm)	600x850x800	1000x1000x1000	1500x1500x1500
External dimension WxHxD (mm)	850x1950x2100	1300x2200x2400	1800x2400x3000
Temperature Range	Low temperature: (A:25ºC; B:0ºC; C:-20ºC; D: -40ºC; E: -60ºC; F:-70ºC) High temperature:100ºC(150ºC)
Humidity Range	20%~98%R.H.(10%-98% R.H. / 5%-98% R.H. is a special optional condition, need Dehumidifier)
Control Accuracy of temperature and humidity	±0.5ºC; ±2.5% R.H.
Temperature Rising / Falling Velocity	Temperature rising approx. 0.1~3.0ºC/min ; temperature falling approx. 0.1~1.2ºC/min; (Falling velocity Min.1.5ºC/min is optional)
Protection Devices	Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Vibration Test Equipment	Choose proper vibration test bench according to customer's test condition, the technical parameters please take Electrodynamics Type Vibration Tester's parameters in this catalog for reference

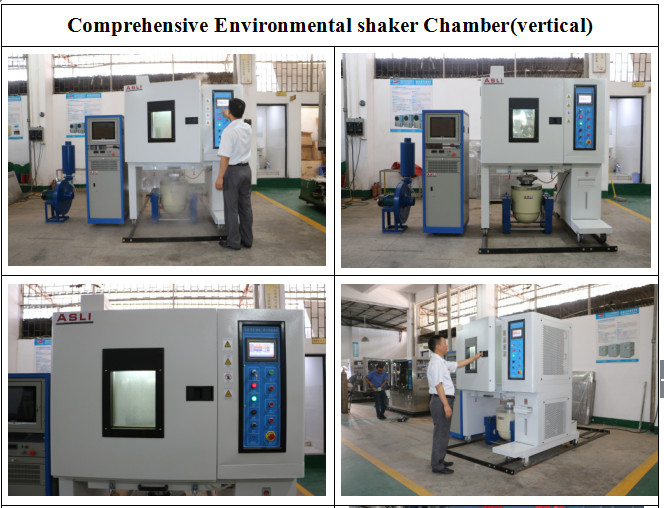

Detailed Electrodynamic Vibration Systems -Environmental Chamber Images
