No Coating Worldia Cutting Tools For Non Ferrous Materials Machining

No Coating Worldia Cutting Tools For Non Ferrous Materials Machining

No Coating Worldia Cutting Tools For Non Ferrous Materials Machining
No Coating Worldia Cutting Tools For Non Ferrous Materials Machining
Categories Worldia Cutting Tools
Brand Name: Worldia
Model Number: CC Type
Place of Origin: Beijing
Supply Ability: 20,000 (monthly)
Delivery Time: 15days
Material: Polycrystalline diamond（PCD）
Specification: CC type
Usage: non-ferrous metal
Application: for machining excellent surface with high roughness in high efficiency;
Service: ODM/OEM
Coating: no coating
Product name: PCD WIPER INSERT
Contact Now
Company Info.
Beijing Worldia Diamond Tools Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

No Coating Worldia Cutting Tools For Non Ferrous Materials Machining

Description of PCD Insert

The Worldia PCD insert is distinguished for high hardness, high compressive strength,

large thermal conductivity, and good wear resistance.

It operates with high processing accuracy and large efficiency at high speed.

We have standard PCD Insert, PCD Chip-breaker Insert, PCD Wiper Insert, PCD Full-length edge Chip-breaker,

PCD Full Length edge Insert, PCD Full Face Insert, and so on.

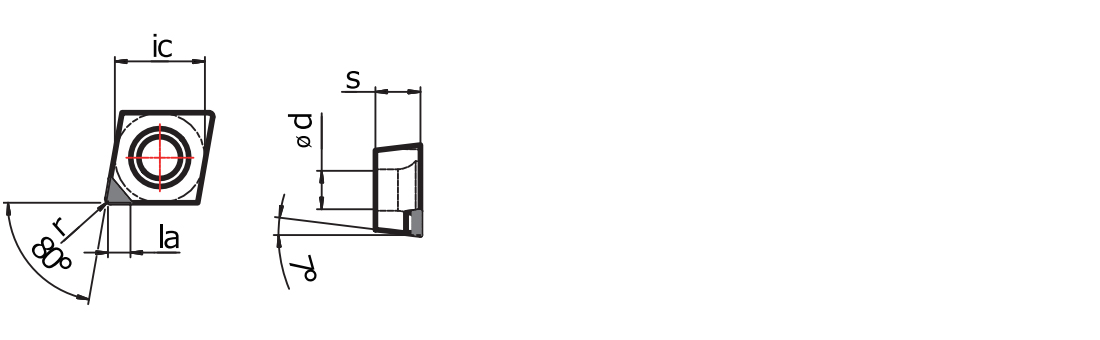

Specifications of PCD/CVDD Wiper Insert

Grade ic φd s r la
ISO catalog number ANSI catalog number Tip Shape PD01E PD10E PD32E CVDD mm mm mm mm mm
CCGW060202-1N P00P07 CCGW2(1.5)(0.5)-1N P00P07 CBWG25S ● ● ● 6.35 2.8 2.38 0.2 2.5
CCGW060204-1N P00P07 CCGW2(1.5)1-1N P00P07 CBWG25S ● ● ● 6.35 2.8 2.38 0.4 2.5
CCGW060202-1N P00P07 CCGW2(1.5)(0.5)-1N P00P07 SLWG25S ● 6.35 2.8 2.38 0.2 2.5
CCGW060204-1N P00P07 CCGW2(1.5)1-1N P00P07 SLWG25S ● 6.35 2.8 2.38 0.4 2.5
CCGW060202-2N P00P07 CCGW2(1.5)(0.5)-2N P00P07 CBWG25S ● ● ● 6.35 2.8 2.38 0.2 2.5
CCGW060204-2N P00P07 CCGW2(1.5)1-2N P00P07 CBWG25S ● ● ● 6.35 2.8 2.38 0.4 2.5
CCGW09T302-1N P00P07 CCGW3(2.5)(0.5)-1N P00P07 CBWG25S ● ● ● 9.525 4.4 3.97 0.2 2.5
CCGW09T304-1N P00P07 CCGW3(2.5)1-1N P00P07 CBWG25S ● ● ● 9.525 4.4 3.97 0.4 2.5
CCGW09T308-1N P00P07 CCGW3(2.5)2-1N P00P07 CBWG25S ● ● ● 9.525 4.4 3.97 0.8 2.5
CCGW09T302-1N P00P07 CCGW3(2.5)(0.5)-1N P00P07 SLWG25S ● 9.525 4.4 3.97 0.2 2.5
CCGW09T304-1N P00P07 CCGW3(2.5)1-1N P00P07 SLWG25S ● 9.525 4.4 3.97 0.4 2.5
CCGW09T308-1N P00P07 CCGW3(2.5)2-1N P00P07 SLWG25S ● 9.525 4.4 3.97 0.8 2.5
CCGW09T302-2N P00P07 CCGW3(2.5)(0.5)-2N P00P07 CBWG25S ● ● ● 9.525 4.4 3.97 0.2 2.5
CCGW09T304-2N P00P07 CCGW3(2.5)1-2N P00P07 CBWG25S ● ● ● 9.525 4.4 3.97 0.4 2.5
CCGW060208-2N P00P07 CCGW3(2.5)2-2N P10P07 CBWG25S ● ● ● 9.525 4.4 3.97 0.8 2.5
CCGW120402-1N P00P07 CCGW43(0.5)-1N P00P07 CBWG25S ● ● ● 12.7 5.5 4.76 0.2 2.5
CCGW120404-1N P00P07 CCGW43 1-1N P00P07 CBWG25S ● ● ● 12.7 5.5 4.76 0.4 2.5
CCGW120408-1N P00P07 CCGW43 2-1N P00P07 CBWG25S ● ● ● 12.7 5.5 4.76 0.8 2.5
CCGW120402-1N P00P07 CCGW43(0.5)-1N P00P07 SLWG25S ● 12.7 5.5 4.76 0.2 2.5
CCGW120404-1N P00P07 CCGW43 1-1N P00P07 SLWG25S ● 12.7 5.5 4.76 0.4 2.5
CCGW120408-1N P00P07 CCGW43 2-1N P00P07 SLWG25S ● 12.7 5.5 4.76 0.8 2.5
CCGW120402-2N P00P07 CCGW43(0.5)-2N P00P07 CBWG25S ● ● ● 12.7 5.5 4.76 0.2 2.5
CCGW120404-2N P00P07 CCGW43 1-2N P00P07 CBWG25S ● ● ● 12.7 5.5 4.76 0.4 2.5
CCGW120408-2N P00P07 CCGW43 2-2N P10P07 CBWG25S ● ● ● 12.7 5.5 4.76 0.8 2.5

Application of PCD Wiper Insert

WORLDIA PCD Wiper Turning Inserts are suitable for excellent surfaces

with high roughness and high-efficiency machining.

Improve the quality of the workpiece surface or processing efficiency.

Focus of PCD Wiper Insert

Company profile

Grade ic φd s r la
ISO catalog number ANSI catalog number Tip Shape PD01E PD10E PD32E CVDD mm mm mm mm mm
CCGW060202-1N P00P07 CCGW2(1.5)(0.5)-1N P00P07 CBWG25S ● ● ● 6.35 2.8 2.38 0.2 2.5
CCGW060204-1N P00P07 CCGW2(1.5)1-1N P00P07 CBWG25S ● ● ● 6.35 2.8 2.38 0.4 2.5
CCGW060202-1N P00P07 CCGW2(1.5)(0.5)-1N P00P07 SLWG25S ● 6.35 2.8 2.38 0.2 2.5
CCGW060204-1N P00P07 CCGW2(1.5)1-1N P00P07 SLWG25S ● 6.35 2.8 2.38 0.4 2.5
CCGW060202-2N P00P07 CCGW2(1.5)(0.5)-2N P00P07 CBWG25S ● ● ● 6.35 2.8 2.38 0.2 2.5
CCGW060204-2N P00P07 CCGW2(1.5)1-2N P00P07 CBWG25S ● ● ● 6.35 2.8 2.38 0.4 2.5
CCGW09T302-1N P00P07 CCGW3(2.5)(0.5)-1N P00P07 CBWG25S ● ● ● 9.525 4.4 3.97 0.2 2.5
CCGW09T304-1N P00P07 CCGW3(2.5)1-1N P00P07 CBWG25S ● ● ● 9.525 4.4 3.97 0.4 2.5
CCGW09T308-1N P00P07 CCGW3(2.5)2-1N P00P07 CBWG25S ● ● ● 9.525 4.4 3.97 0.8 2.5
CCGW09T302-1N P00P07 CCGW3(2.5)(0.5)-1N P00P07 SLWG25S ● 9.525 4.4 3.97 0.2 2.5
CCGW09T304-1N P00P07 CCGW3(2.5)1-1N P00P07 SLWG25S ● 9.525 4.4 3.97 0.4 2.5
CCGW09T308-1N P00P07 CCGW3(2.5)2-1N P00P07 SLWG25S ● 9.525 4.4 3.97 0.8 2.5
CCGW09T302-2N P00P07 CCGW3(2.5)(0.5)-2N P00P07 CBWG25S ● ● ● 9.525 4.4 3.97 0.2 2.5
CCGW09T304-2N P00P07 CCGW3(2.5)1-2N P00P07 CBWG25S ● ● ● 9.525 4.4 3.97 0.4 2.5
CCGW060208-2N P00P07 CCGW3(2.5)2-2N P10P07 CBWG25S ● ● ● 9.525 4.4 3.97 0.8 2.5
CCGW120402-1N P00P07 CCGW43(0.5)-1N P00P07 CBWG25S ● ● ● 12.7 5.5 4.76 0.2 2.5
CCGW120404-1N P00P07 CCGW43 1-1N P00P07 CBWG25S ● ● ● 12.7 5.5 4.76 0.4 2.5
CCGW120408-1N P00P07 CCGW43 2-1N P00P07 CBWG25S ● ● ● 12.7 5.5 4.76 0.8 2.5
CCGW120402-1N P00P07 CCGW43(0.5)-1N P00P07 SLWG25S ● 12.7 5.5 4.76 0.2 2.5
CCGW120404-1N P00P07 CCGW43 1-1N P00P07 SLWG25S ● 12.7 5.5 4.76 0.4 2.5
CCGW120408-1N P00P07 CCGW43 2-1N P00P07 SLWG25S ● 12.7 5.5 4.76 0.8 2.5
CCGW120402-2N P00P07 CCGW43(0.5)-2N P00P07 CBWG25S ● ● ● 12.7 5.5 4.76 0.2 2.5
CCGW120404-2N P00P07 CCGW43 1-2N P00P07 CBWG25S ● ● ● 12.7 5.5 4.76 0.4 2.5
CCGW120408-2N P00P07 CCGW43 2-2N P10P07 CBWG25S ● ● ● 12.7 5.5 4.76 0.8 2.5
