Triangle Polycrystalline Diamond Inserts Pcd Superb Hardness

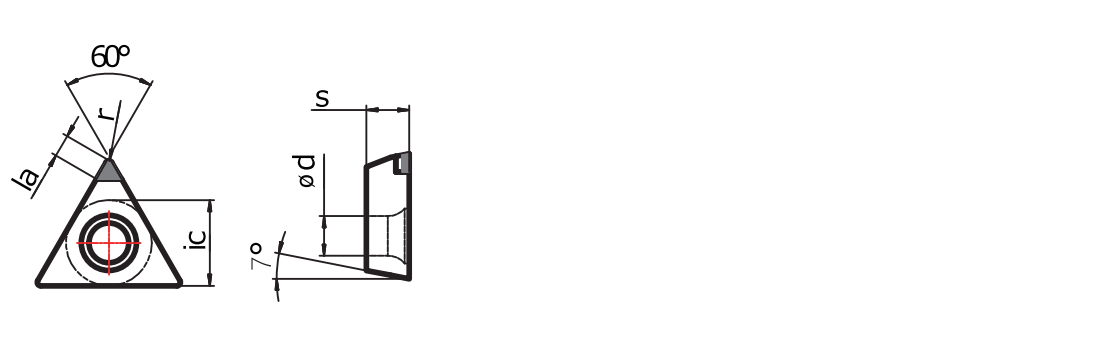

Specifications of PCD/CVDD Insert with Chip-breaker

			Grade				ic	φd	s	r	la
ISO catalog number	ANSI catalog number	Tip Shape	PD01E	PD10E	PD32E	CVDD	mm	mm	mm	mm	mm
TCGW080202-1N P00P07	TCGW(1.5)(1.5)(0.5)-1N P00P07	CBCBC125S	●	●	●		4.76	2.4	2.38	0.2	2.5
TCGW080204-1N P00P07	TCGW(1.5)(1.5)1-1N P00P07	CBCBC125S	●	●	●		4.76	2.4	2.38	0.4	2.5
TCGW080202-1N P00P07	TCGW(1.5)(1.5)(0.5)-1N P00P07	SLCBC125S				●	4.76	2.4	2.38	0.2	2.5
TCGW080204-1N P00P07	TCGW(1.5)(1.5)1-1N P00P07	SLCBC125S				●	4.76	2.4	2.38	0.4	2.5
TCGW080202-3N P00P07	TCGW(1.5)(1.5)(0.5)-3N P00P07	CBCBC125S	●	●	●		4.76	2.4	2.38	0.2	2.5
TCGW080204-3N P00P07	TCGW(1.5)(1.5)1-3N P00P07	CBCBC125S	●	●	●		4.76	2.4	2.38	0.4	2.5
TCGW110302-1N P00P07	TCGW22(0.5)-1N P00P07	CBCBC125S	●	●	●		6.35	2.8	3.18	0.2	2.5
TCGW110304-1N P00P07	TCGW22 1-1N P00P07	CBCBC125S	●	●	●		6.35	2.8	3.18	0.4	2.5
TCGW110302-1N P00P07	TCGW22(0.5)-1N P00P07	SLCBC125S				●	6.35	2.8	3.18	0.2	2.5
TCGW110304-1N P00P07	TCGW22 1-1N P00P07	SLCBC125S				●	6.35	2.8	3.18	0.4	2.5
TCGW110302-3N P00P07	TCGW22(0.5)-3N P00P07	CBCBC125S	●	●	●		6.35	2.8	3.18	0.2	2.5
TCGW110304-3N P00P07	TCGW22 1-3N P00P07	CBCBC125S	●	●	●		6.35	2.8	3.18	0.4	2.5
TCGW160402-1N P00P07	TCGW33(0.5)-1N P00P07	CBCBC125S	●	●	●		9.525	4.4	4.76	0.2	2.5
TCGW160404-1N P00P07	TCGW33 1-1N P00P07	CBCBC125S	●	●	●		9.525	4.4	4.76	0.4	2.5
TCGW160408-1N P00P07	TCGW33 2-1N P00P07	CBCBC125S	●	●	●		9.525	4.4	4.76	0.8	2.5
TCGW160402-1N P00P07	TCGW33(0.5)-1N P00P07	SLCBC125S				●	9.525	4.4	4.76	0.2	2.5
TCGW160404-1N P00P07	TCGW33 1-1N P00P07	SLCBC125S				●	9.525	4.4	4.76	0.4	2.5
TCGW160408-1N P00P07	TCGW33 2-1N P00P07	SLCBC125S				●	9.525	4.4	4.76	0.8	2.5
TCGW160402-3N P00P07	TCGW33(0.5)-3N P00P07	CBCBC125S	●	●	●		9.525	4.4	4.76	0.2	2.5
TCGW160404-3N P00P07	TCGW33 1-3N P00P07	CBCBC125S	●	●	●		9.525	4.4	4.76	0.4	2.5
TCGW160408-3N P00P07	TCGW33 2-3N P00P07	CBCBC125S	●	●	●		9.525	4.4	4.76	0.8	2.5

Application of PCD chip-breaker insert

PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC),

and carbon fiber-reinforced plastics (CFRP).
PCD with flood coolant can also be used in titanium super-finishing applications.

Aluminum and aluminum alloys
Copper, brass, and bronze alloys
Zinc and magnesium alloys
Carbon Fiber
Epoxy resins
Plastics
Fiberglass composites
Graphite composites

Functions and Features of PCD chip-breaker insert

1. Eliminate bird nest chips when turning aluminum or other workpiece materials;

2. Excellent chip control is available in finish machining and general machining with the same chip pocket form;

Special Focus of PCD chip-breaker insert

Material Introduction

PCD Chipbreaker Insert use premium PCD materials for the cutting tips and high quality tungsten carbide for the substrates.

Company profile

Product Tags:

triangle polycrystalline diamond inserts

superb hardness polycrystalline diamond inserts

superb hardness insert pcd

Triangle Polycrystalline Diamond Inserts Pcd Superb Hardness

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Beijing Worldia Diamond Tools Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Worldia Cutting Tools
Brand Name:	Worldia
Model Number:	TC Type
Place of Origin:	Beijing
Supply Ability:	20,000 (monthly)
Delivery Time:	15days
Feature:	the first PCD chip breaker tool maker in China
Material:	Polycrystalline diamond（PCD）
Specification:	TC type
Application:	suitable for high surface finish aluminum alloys
Machining:	Finishing
Service:	ODM/OEM
