Categories | Sheet Perforation Machine |
---|---|
Brand Name: | LVJOE |
Model Number: | LV-CK01 |
Certification: | ISO CE SGS |
Place of Origin: | China |
MOQ: | 1 set |
Price: | US $20000-80000 |
Supply Ability: | 50 sets per year |
Delivery Time: | 30 days |
Packaging Details: | PE film wrapped |
Pressure: | 80T, 160T, 200T |
Usage: | Gypsum Board, MDF, HPL, Fiber cement board perforation |
Holes: | Round, Square |
Automatic level: | high automatic |
thickness: | max. 20mm |
Company Info. |
Hebei Greens Building Material Technology Development Co.,Ltd |
Verified Supplier |
View Contact Details |
Product List |

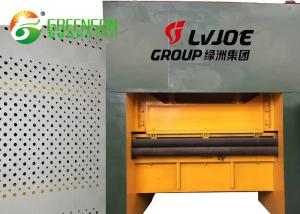

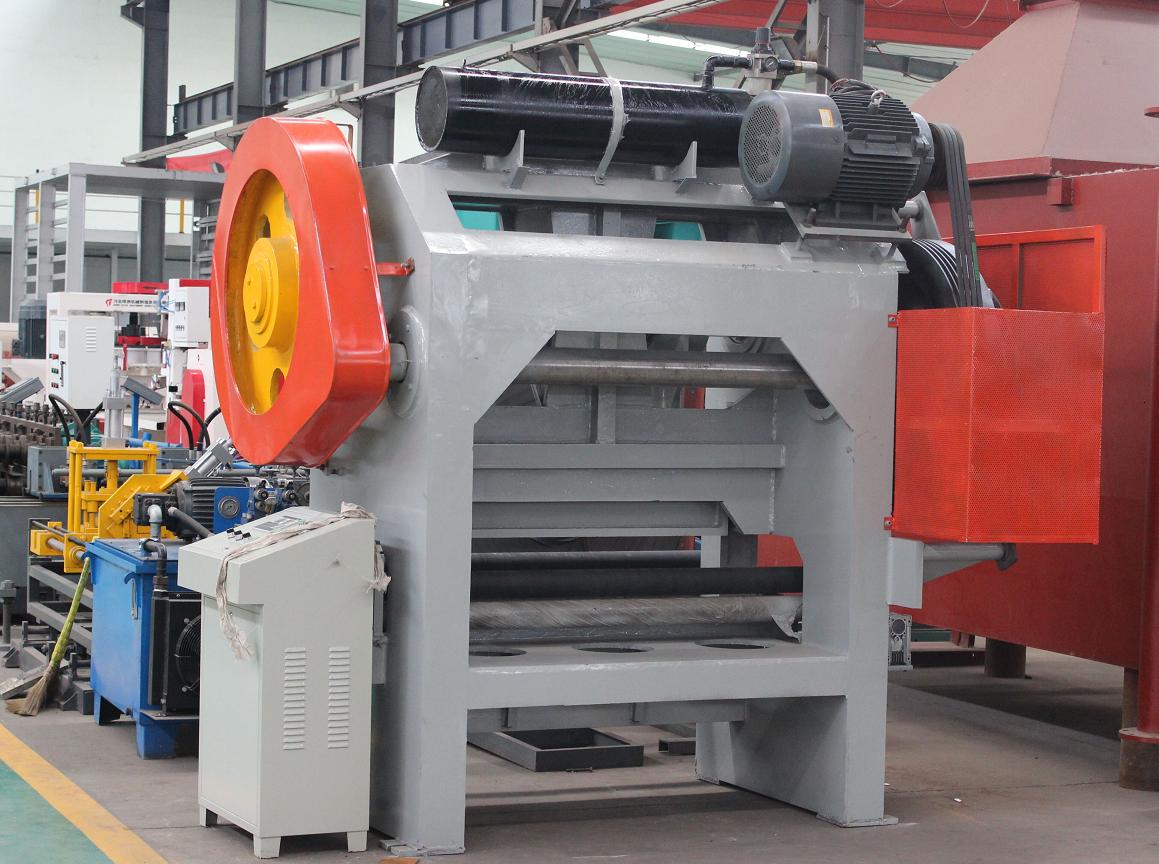

Soundproof Acoustical Gypsum Ceiling Panel Making Machinery Perforating Machine
Technical data:
1. Punching pressure: 200 ton 2. Stroke: 30 mm 3. Max mold height closed: 260mm. 4. Number of strokes: 50 times/minute 5. Slide surface: 210*1100mm 6. Working table: 300*1670mm 7. Spacing of both pole: 1350mm (load the max board width 1220mm) 8. Power of main motor: 22kw Power of servo motor:2.6kw(brand: Zhejiang yifeng) 9. Feeding accuracy: ±1mm 10. Maximum feeding rate: 100mm 11. Maximum feeding thickness: 20mm 12. Gross weight of machine: 11000kg 13. Overall dimension: 2300*1500*2300(H*L*W) |
Usage
This perforation machine is used to perforate holes in the gypsum
ceiling board, MgO board, MDF, HPL, Fiber cement board, metal
sheet.
You can choose the shape of the hole as your requirement, about the
operation, our worker can teach you how to use it.
Finished Products
Our products range:
PVC gypsum ceiling board production line,
Perforation machine
MgO board production line
Mineral fiber board production line
![]() |
