3p 7.5kw 1250mm Double Layer Forming Machine Corrugated Sheet Metal Roof Making

Categories Double Layer Forming Machine
Brand Name: DLY
Model Number: double layer machine
Certification: CE
Place of Origin: China
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T
Supply Ability: 30sets/month
Delivery Time: 40 days
Packaging Details: naked or wooden
name: double Layer Forming Machine
Weight: 10T
Warranty: 12 months
Tile type: double layer roll forming machine
Raw material: Galvanized Sheet,ppgi
After-sales service provided: Field installation,commissioning and training,Online support
Control system: Totally Automatic,Siemens PLC control with touch screen
Power(w): 5.5KW+5.5kw
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

3p 7.5kw 1250mm Double Layer Forming Machine Corrugated Sheet Metal Roof Making

3P Double Layer Forming Machine 7.5kw 1250mm Corrugated Sheet Metal Roof Making Machine


1. Brief introduction of Double Layer Forming Machine


For this roof press making machine, we have below advantage:
* More good application:We choose a innovative way that already solved the glazed tile press step distance problem.This method can ensure the each finished glazed tile will in a same distance step and can be well overlap one by one together.This can save you a lot of money and time for you about this problem.
*High quality,Machine longer service time: We are focus on machine detail design, will use many years experience to supplement the machine details and avoid some problems.Will improve the machine service life.


2. Specifications of Double Layer Forming Machine


1
Suitable to process
Color steel plate, galvanized sheet, aluminum coils and etc.
2
Width of the feeding material
914-1250mm
3
Roller station
11-18 rows or custom as customer's requirements
4
Thickness of feeding material
0.3-0.8mm
5
Productivity
8-12m/min
6
Rollers' material
45# steel
7
Diameter of shaft
70-80mm
8
Voltage
380V 50Hz 3phases
9
Wall thickness of main forming machine
12-18mm steel plate
10
Main forming machine body
300-400 mm H steel
11
Motor power
4-7.5 kw
13
Weight
About 5-15T
14
Custom
According to customer's requirements

3. Our service of Double Layer Forming Machine

Galvanized Corrugated Steel Sheets Machine after sales services :


1.Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your
workers/technician face to face.

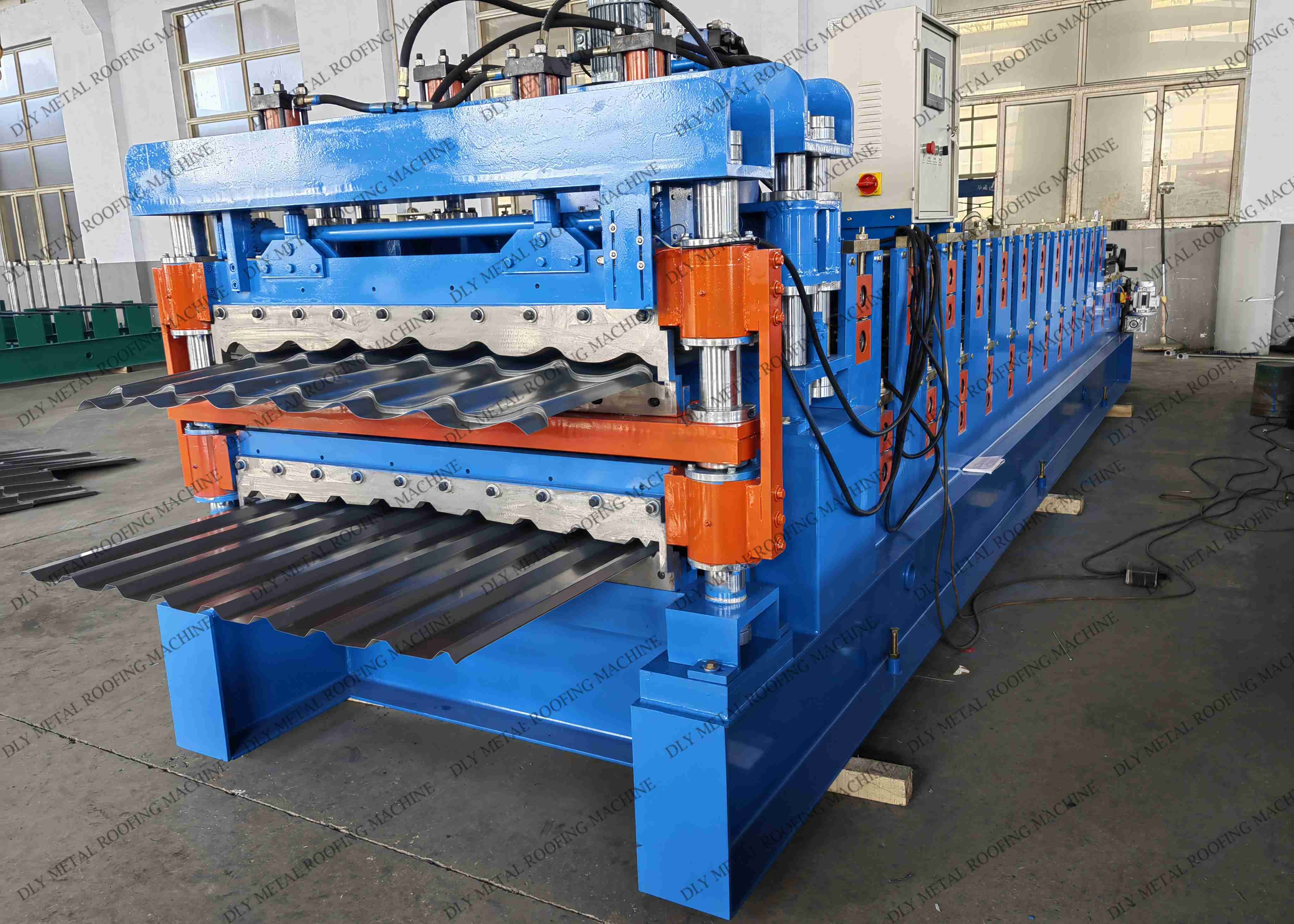

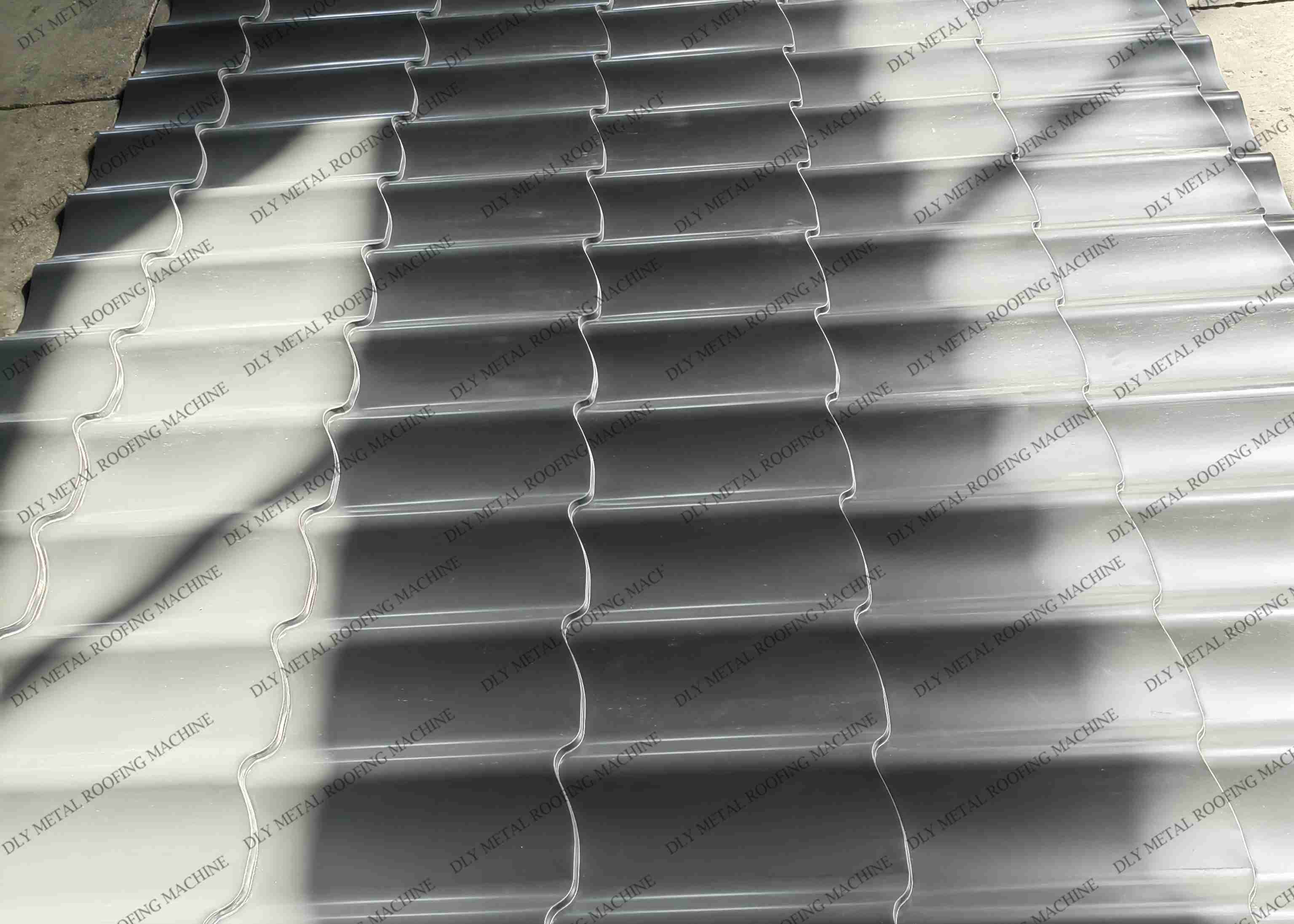

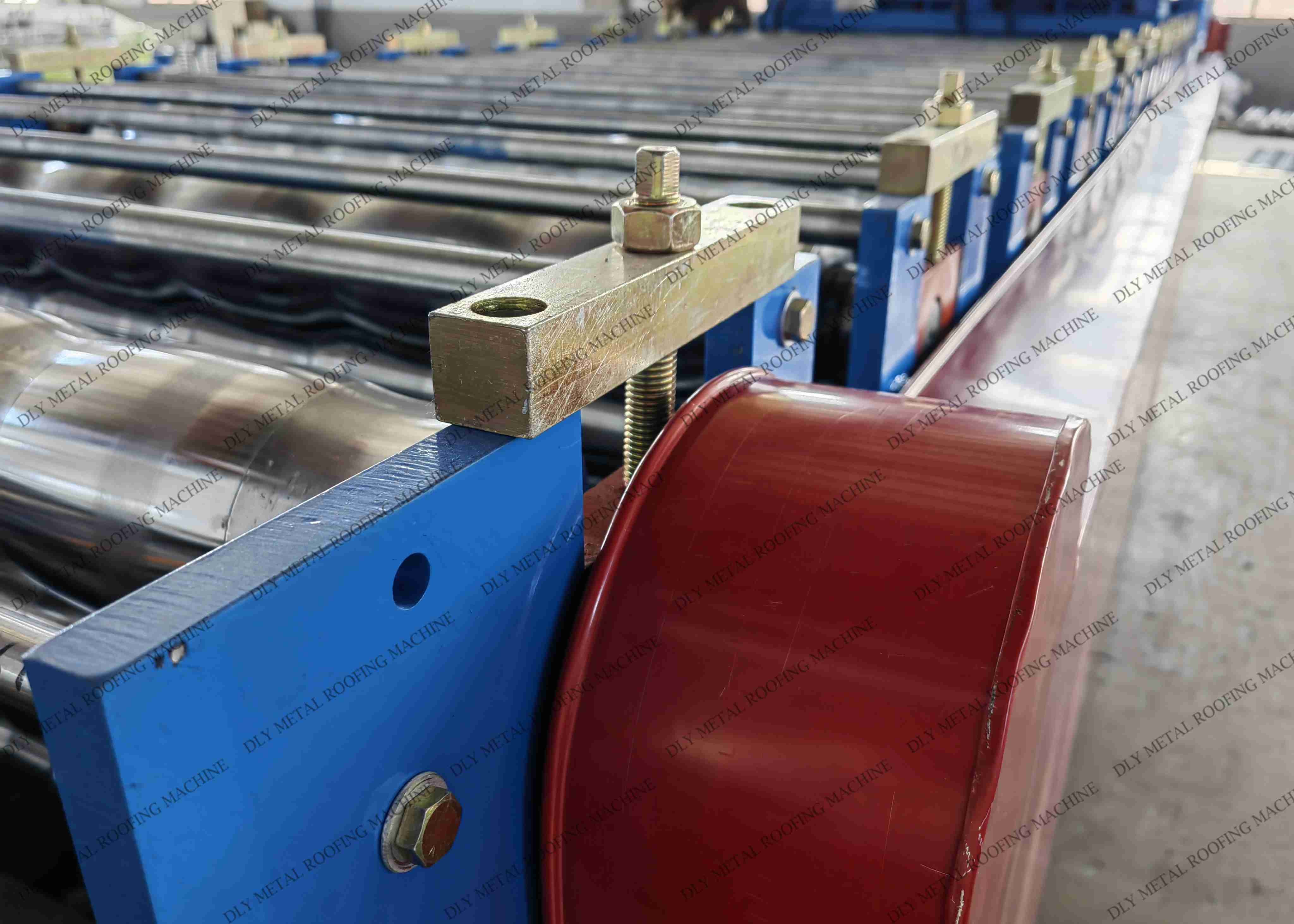

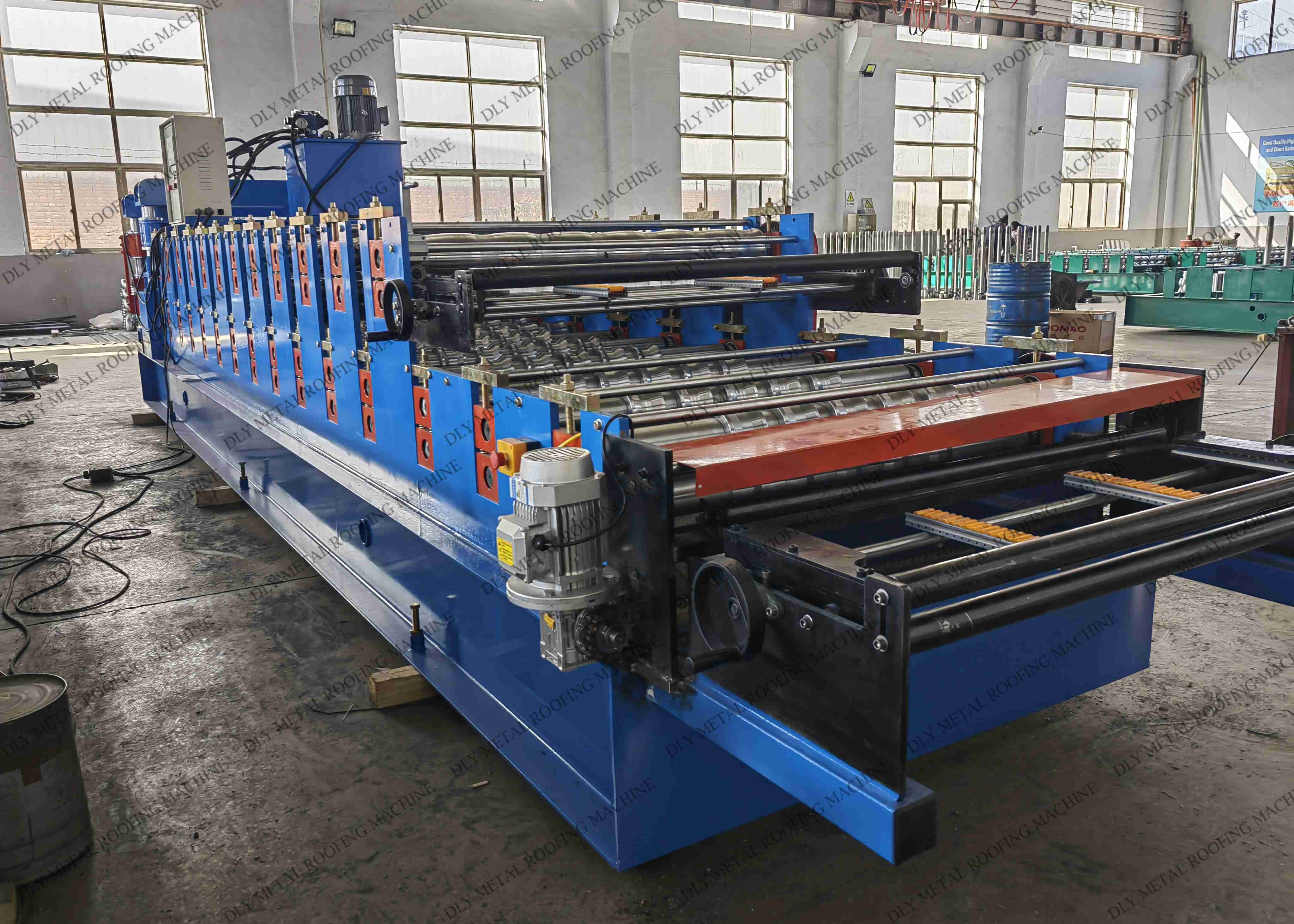

4. details photos of Double Layer Forming Machine


Cheap 3p 7.5kw 1250mm Double Layer Forming Machine Corrugated Sheet Metal Roof Making for sale
