Powerful WRG Relay With 4kV AC Dielectric Strength Ensuring Safety

Categories WRG Relay
Brand Name: WRG
Model Number: RC-112DM
Certification: TUV/CQC/UL/VDE
Place of Origin: China
MOQ: 100pcs
Price: negotiable
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 500k per month
Delivery Time: 5-8days
Packaging Details: standard or customization
Keyword: 12V SPST Relay
Coil input voltage: 12VDC
Enclosure type: flux resistance
Dimension LxWxH(mm): 20.4x7.0x15.1
Features: coil power 200mW
Weight(g): 3
Operating humidity: 20 ~ 85%
Operating temperature: -40 ~ 105℃(no condensation)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

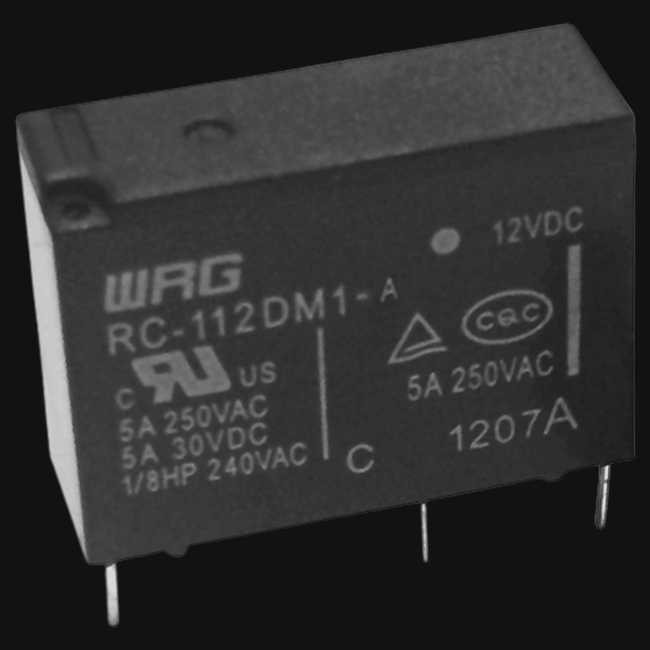

Powerful WRG Relay With 4kV AC Dielectric Strength Ensuring Safety

Powerful WRG Relay With 4kV AC Dielectric Strength Ensuring Safety


WRG Relay Powerful Relay With 4kV AC Dielectric Strength Ensuring Safety Performance


WRG Relay Description:

The Powerful Relay with 4kV AC Dielectric Strength offers outstanding safety performance. It is designed to prevent electrical breakdowns by providing a high dielectric strength. This ensures the safe operation of your systems, even under high-voltage conditions. It's especially suited for power-intensive applications, guaranteeing the safe control and regulation of power flows. With this relay, you can rest assured that your circuits are protected against potential overload or faults.


WRG Relay Features:

1. rated current 3A,4pin

2. coil power 200mW

3. lightweight, high sensitivity
4. ultra-slim,7mm width
5. Meet with IEC60079-15 anti-explosion standard


WRG Relay Specification:

General data
Rated withstand impulse voltagecoil contact4kV AC/1min
between contact750V AC/1min
Surge voltage10kV AC(1.2/50μs)
Insulation resistance1000MΩ(500VDC)
VibrationFault 10-55Hz(amplitude 1.5mm)
Endurance 10-55Hz(amplitude 1.5mm)
ShockFault 98m/S2 Endurance 980m/S2
Dimension LxWxH(mm)20.4x7.0x15.1
Enclosure typeFlux-resistance, sealed
CertificationscULus:E345228/TUV:R50220640/CQC:CQC12002067898/VDE:40034781

Cheap Powerful WRG Relay With 4kV AC Dielectric Strength Ensuring Safety for sale
