Hard Rock Drilling 10 Inch Dth Water Hammer TUV Approved

Categories DTH Drilling Hammer
Brand Name: GLORYTEK
Model Number: DHD, SD, Ql, Mission, Numa, Cop
Certification: SGS, TUV
Place of Origin: China
MOQ: 1pc
Price: Negotiable
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100sets/month
Delivery Time: 10-15 days
Packaging Details: standard exporting packing
Name: DHD/Ql/Cop/Misson/SD DTH Drilling Hammers for Water Well Drilling and Hard Rock Drilling
Keyword: DHD/Ql/Cop/Misson/SD DTH Drilling Hammers
Regular Sizes: 3"-12"
Shank: DHD, SD, Ql, Mission, Numa, Cop, etc.
Suitable Projects: Water Well Drilling and Hard Rock Drilling
MOQ: 1set
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

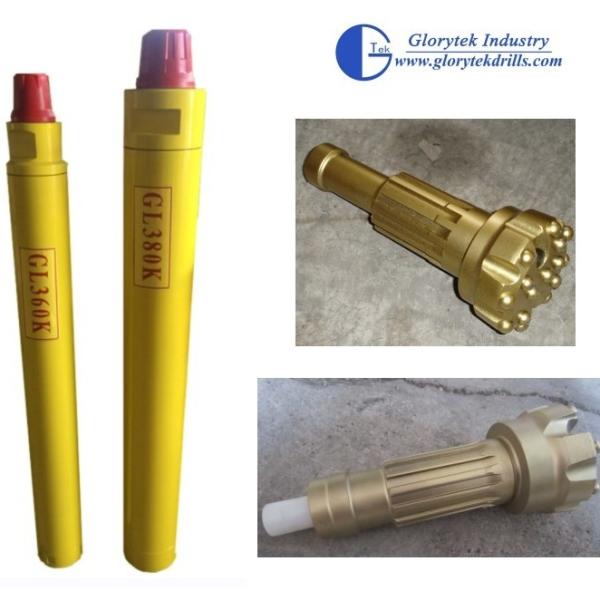

Hard Rock Drilling 10 Inch Dth Water Hammer TUV Approved

DHD/Ql/Cop/Misson/SD DTH Drilling Hammers for Water Well Drilling and Hard Rock Drilling


DTH (down-the-hole) drilling involves a drilling hammer at the bottom of a drill string, the hammer is powered by compressed air transmitted via drilling rod to drive piston and produce impact power, which is then delivered into rocks for drilling and crushing. DTH drilling can be applied in mining, quarrying, water well drilling, foundation piling, etc. DTH hammer uses compressed air to produce impact power, thus to drive drill bits to crush rocks.

DTH Hammer has a wide range of use in all kinds of hard and abrasive rocks.
follwing features:
1,DTH hammers are used for blast hole drilling and blasting, mainly applied in Mining,
2,Marble quarry or well drilling and other construction projects.
3,New products designed based on mining condition in china, improving by advanced technology from global market.
4,Superior materials, advanced process,guaranteed quality.
5,Faster drillinq rate.
6,Hardness can be enhaced to expand the lifespan of hammer, and lower the cost.
7,Huge impulse with low consumption of electricity.
8,The modern theory is adopted in the structural design, which makes the stress.
9,wave duration longer, the stress amplitudeis lower, and the piston life is long.

Technical Specifications:
TypeModelLengthWeightExternal Dia.(mm)Hole Range
(mm)(kg)(mm)
3.5 inchDHD3.593025∅82∅90-110
4 inchDHD340103039∅99∅110-135
SP480108440.5∅99
QL4109741∅99
Mission40100540∅99
5 inchDHD350121476.5∅125∅135-155
SP580117572.5∅125
QL5114773∅125
Mission50111068.5∅125
6 inchDHD3601248100∅142∅155-190
SP6801261100∅142
QL6121295∅146
Mission60116190∅146
8 inchD851492188∅180∅195-254
SP8821463192∅180
QL81465182∅180
Mission801338176∅180
10 inchSP10801502290∅226∅254-311
NUMA1001510288∅226
12 inchDHD1120others pls show me your request
Numa120
Numa 125
Packing of DTH Drilling Hammer

Packing: standard exporting packing.

Delivery: Normally 10 days after your advanced payment.


Company Profile


Glorytek Corporation located in China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades.

We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.


Our Services
1. OEM & ODM , as your request .
2. Best quality control : we have our own experienced QC team and the third party test .
3.Quick response .
4.Quick delivery .
5.Best after sevice
