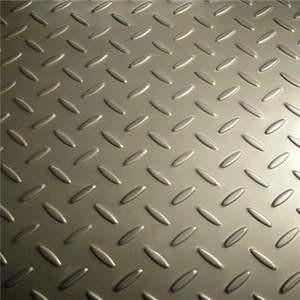

Tear Chequered Sheet 304 Stainless Steel Floor Plate Diamond Pattern 3000mm

Tear Chequered Sheet 304 Stainless Steel Floor Plate Diamond Pattern 3000mm

Tear Chequered Sheet 304 Stainless Steel Floor Plate Diamond Pattern 3000mm
Tear Chequered Sheet 304 Stainless Steel Floor Plate Diamond Pattern 3000mm
Categories Checkered Stainless Steel Plate
Brand Name: WOSHANG
Model Number: 201 202 304 316 317 321 310 309 410 420
Certification: SGS ISO ROHS
Place of Origin: China
MOQ: 500 Kgs
Price: Negotatable
Payment Terms: T/T, L/C, Western Union
Delivery Time: 1000TONS PER MONTH
Packaging Details: Standard Waterproof Package
Other Name: Stainless Steel Plate
Tolerance: ±1%
Width Range: 500-1500mm Or Customize
Thickness: 0.3mm-15mm
Length: 3000mm-6000mm Or Customize
Finishes: 2B BA Mirror HL
Payment: T/T
Price Term: CIF CFR FOB
Contact Now
Company Info.
Jiangsu Junxuan International Trade Co., Ltd.
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Tear Chequered Sheet 304 Stainless Steel Floor Plate Diamond Pattern 3000mm

Diamond Pattern Tear Standard Size Chequered Sheet 304 Stainless Steel Floor Plate

Product Description

Product
Stainless Steel Sheet, Stainless Steel Plate
Material Type
Ferrite stainless steel, magnetic; Austenitic stainless steel, Non-magnetic.
Material Origin
TISCO, BAOSTEEL, JISCO, LISCO, BAOSTEEL, DINGXIN
Grade
Mainly201, 202, 304, 304L, 304H, 316, 316L,316Ti,2205, 330, 630, 660, 409L, 321, 310S, 410, 416, 410S, 430, 347H, 2Cr13, 3Cr13 etc
300series:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347
200series:201,202,202cu,204
400series:409,409L,410,420,430,431,439,440,441,444
Others:2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S318039 904L,etc
Duplex stainless steel:S22053,S25073,S22253,S31803,S32205,S32304
Special Stainless Steel:904L,347/347H,317/317L,316Ti,254Mo
Technology
Cold Rolled Hot Rolled
Length
100~12000 mm
Width
100~2000 mm
Thickness
Cold Roll:0.1~3 mm
Hot Roll:3~100 mm
Surface
BA, 2B, 2D, 4K, 6K, 8K, NO.4, HL, SB, Embossed
Leveling: improve flatness, esp. for items with high flatness request.
Skin-Pass: improve flatness, higher brightness
Other Choices
Cutting:Laser cutting, help the customer to cut the required size
Protection
1. Inter paper available
2. PVC protecting film available
Price Item
FOB,CIF,DDU,FCA,EXW ,.etc
Advantage
We have stock, about 20000 tons.

Chemical Component


GradeCSiMnPSNiCrMo
201≤0.15≤0.755.5-7.5≤0.06≤0.033.5-5.516.0-18.0-
202≤0.15≤1.07.5-10.0≤0.06≤0.034.-6.017.0-19.0-
301≤0.15≤1.0≤2.0≤0.045≤0.036.0-8.016.0-18.0-
302≤0.15≤1.0≤2.0≤0.035≤0.038.0-10.017.0-19.0-
304≤0.08≤1.0≤2.0≤0.045≤0.038.0-10.518.0-20.0
304L≤0.03≤1.0≤2.0≤0.035≤0.039.0-13.018.0-20.0
309S≤0.08≤1.0≤2.0≤0.045≤0.0312.0-15.022.0-24.0
310S≤0.08≤1.5≤2.0≤0.035≤0.0319.0-22.024.0-26.0
316≤0.08≤1.0≤2.0≤0.045≤0.0310.0-14.016.0-18.02.0-3.0
316L≤0.03≤1.0≤2.0≤0.045≤0.0312.0-15.016.0-18.02.0-3.0
321≤0.08≤1.0≤2.0≤0.035≤0.039.0-13.017.0-19.0-
904L≤2.0≤0.045≤1.0≤0.035-23.0-28.019.0-23.04.0-5.0
2205≤0.03≤1.0≤2.0≤0.030≤0.024.5-6.522.0-23.03.0-3.5
2507≤0.03≤0.80≤1.2≤0.035≤0.026.0-8.024.0-26.03.0-5.0
2520≤0.08≤1.5≤2.0≤0.045≤0.030.19-0.220.24-0.26-
410≤0.15≤1.0≤1.0≤0.035≤0.03-11.5-13.5-
4300.12≤0.75≤1.0≤0.040≤0.03≤0.6016.0-18.0-

Surface FinishCharacteristics and application
2BThe surface brightness and flatness of no2B is better than no2D. then through a special surface treatment to improve its mechanical properties,No2B could nearly satisfy comprehensive uses.
No.1Polished with abrasive belt of grit#100-#200, have better brightness with discontinuous coarse stria, used as inner and external ornaments for building, electrical appliances and kitchen utensils etc.
No.4Polished with abrasive belt of grit #150-#180,have better brightness with discontinuous coarse stria, but thinner than No3, are used as bathtub buildings inner and external ornaments electrical appliances kitchen utensils and food processing equipment etc.
HLPolished with abrasive belt of grit #150-#320 on the NO.4 finish and has continuous streaks, mainly used as buildings ornaments elevators, door of building, frontal plate etc.
BACold rolled, bright annealed and skin-passed, the product have excellent brightness and good reflexivity like mirror, kitchen apparatus, ornament etc.
8KThe product have excellent brightness and prefer reflexivity can to be the mirror.

APPLICATION
Stainless steel has unique characteristics such as unique strength, high abrasion resistance, superior anti-corrosion performance and resistance to rust. Therefore, it is widely used in industry, food machinery, mechanical and electrical industry, household appliance industry, home decoration and finishing industry. The development prospect of stainless steel application will be more and more broad, but the development of stainless steel application largely depends on the development of its surface treatment technology.

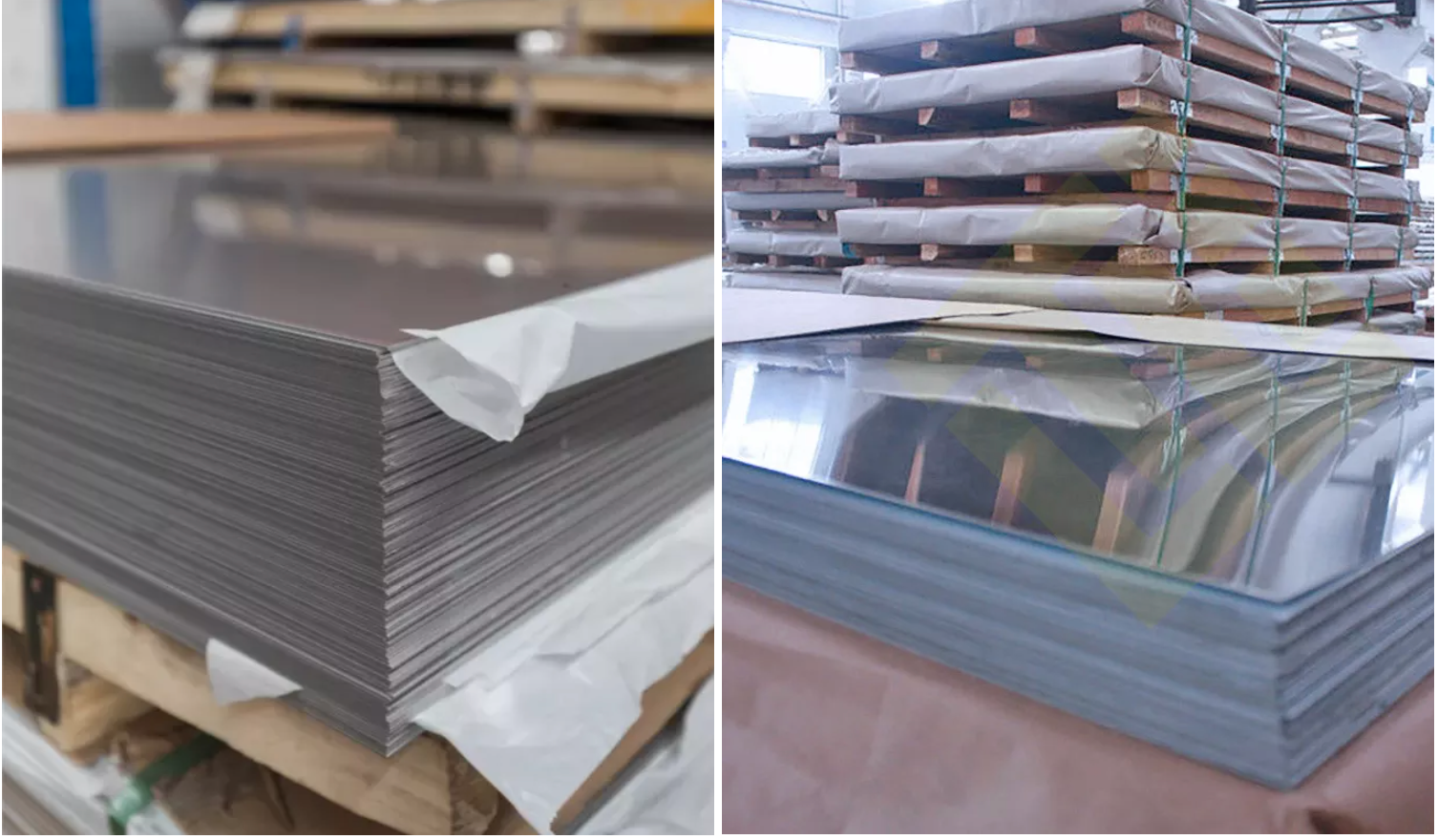

Packing & Delivery

Export standard package,bundled or be required. The inner size of container is below: 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) Delivery Details 7-15 dyas,or according to the order quantity or upon negotiation.
Package
Wooden pallets, standard export package or as required
Lead Time
7-10 days after get deposit
Payment Terms
T/T, L/C
Price Terms
FOB, CRF, CIF, EXW
MOQ
1 Ton
