Black Hands Free 2D Barcode Scanner Omnidirectional For Retail Store Supermarket

Categories Desktop Barcode Scanner
Brand Name: YHDAA
Model Number: YHD-9500D
Certification: CE,FCC,ROHS,IP54,SGS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details: YHD-9500D 2D Desktop Barcode Scanner Standard List : Desktop Scanner*1, Cable *1, Manual *1, Box *1
Type: 2D Desktop Barcode Scanner
Brand: YHDAA
Color: Black
Resolution: 4mil
Scanning speed: 2600 times/s
Sweeping barcode type: paper, thin film medium one-dimensional; mobile phone, flat screen, etc.
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

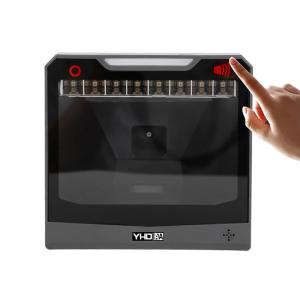

Black Hands Free 2D Barcode Scanner Omnidirectional For Retail Store Supermarket

2D Hands-Free Barcode Scanner Omnidirectional for Market Retail Store Supermarket Mobile Screen Payment YHD-9500D

USB Barcode Scanner Plug and Play, no drivers needed. Just plug it into a USB port and start scanning. Scans into an Outlook email, Excel spreadsheet, Notepad, Word . for book store, online store, sales shop, warehouse, etc place


Features

No need to install any software or app,Plug and play.

Touch screen volume control button, easily deal with noisy environment.

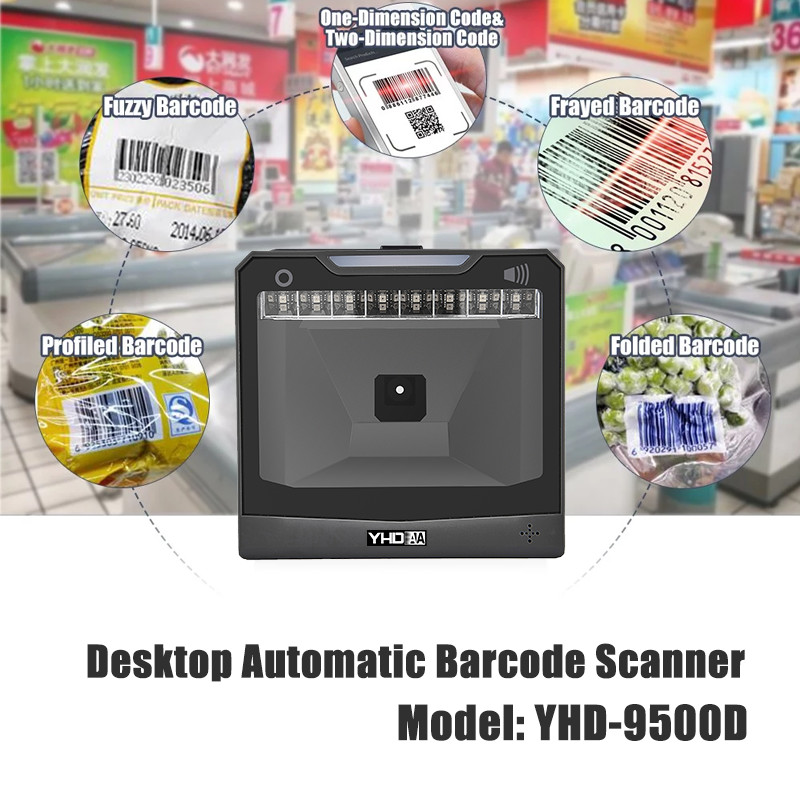

Super decoding ability,easily capture all common 2D 1D codes.

Handsfree and auto-sense scan design, can directly place on the desk, no need to hold the scanner, release your hands.

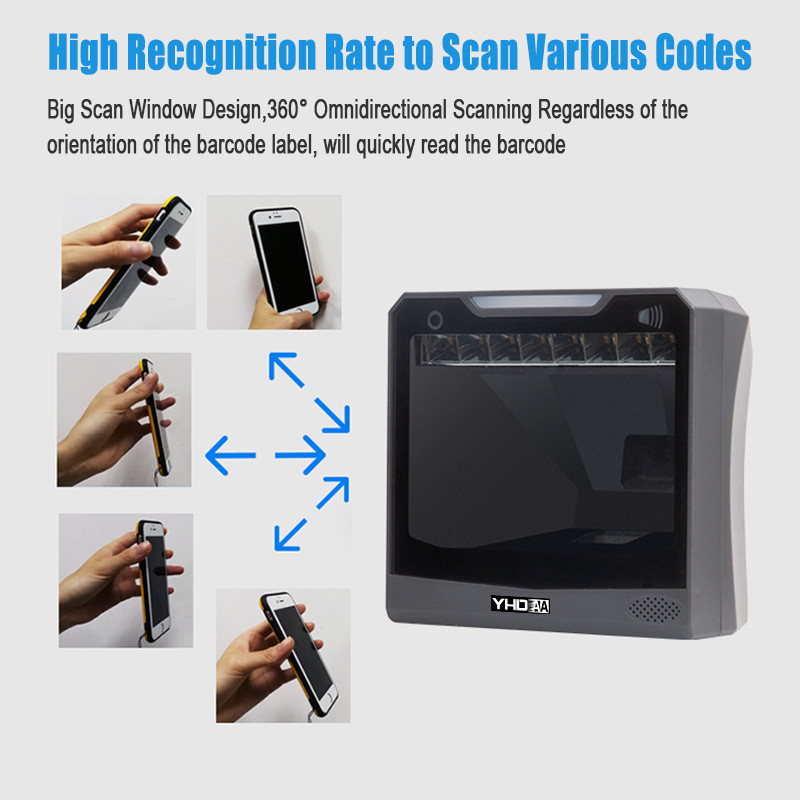

Big scan window design,360 degree omnidirectional scanning regardless of the orientation of the barcode label, will quickly read the barcode.

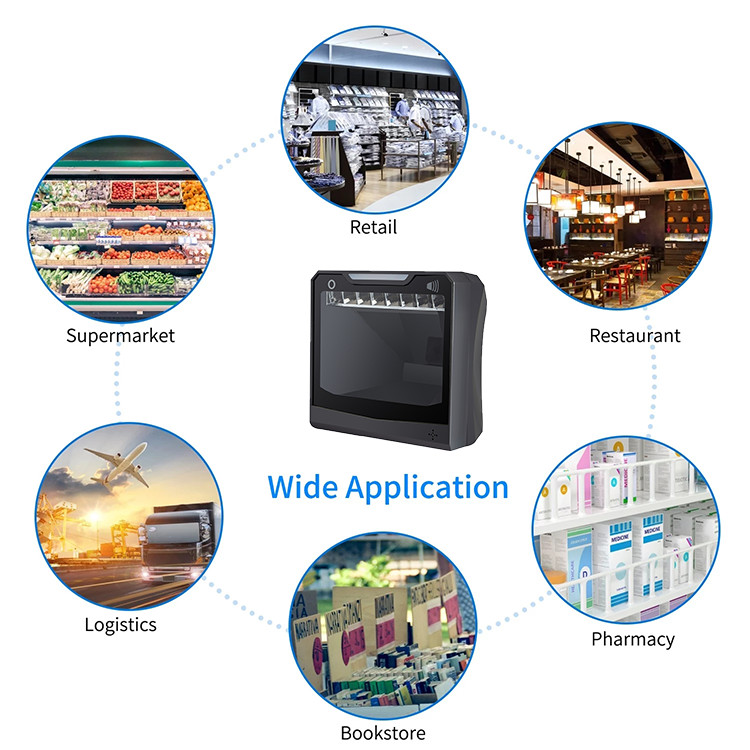

Application fields: retail shop, clothing store, supermarket, library, book store, pharmacy store, warehouse, parking system etc.


Technical parameters

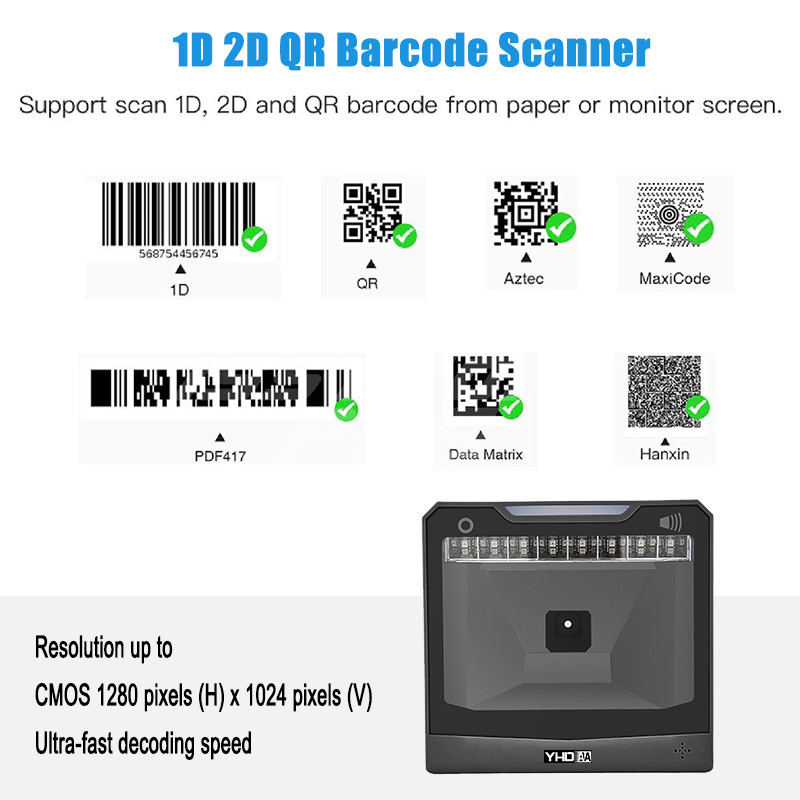

Optical resolution : CMOS 1280 pixels (H) x 1024 pixels (V)

Lighting source : Warm Yellow LED

Resolution : 4mil

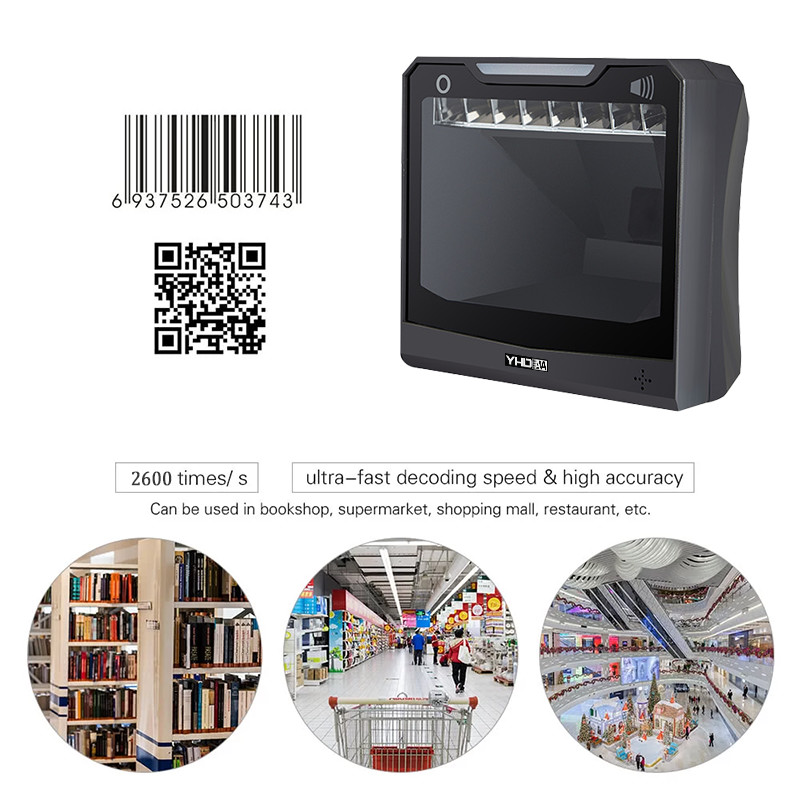

Scanning speed : 2600 times/s

Scanning angle : Roll 360°/ Pitch ±65°/ Yaw ±65°

Field of View : 44°(H) X34°(V)

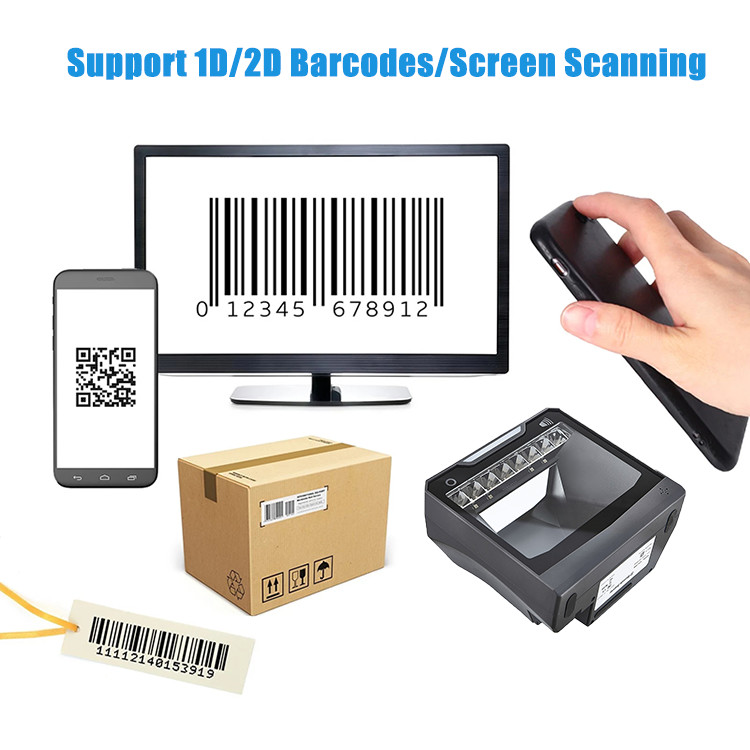

Sweeping barcode type : paper, thin film medium one-dimensional; mobile phone, flat screen, etc.

Printing contrast : 20%

Error rate : ≤1/2,000,000

Interface type : USB

Prompt mode : Buzzer, LED

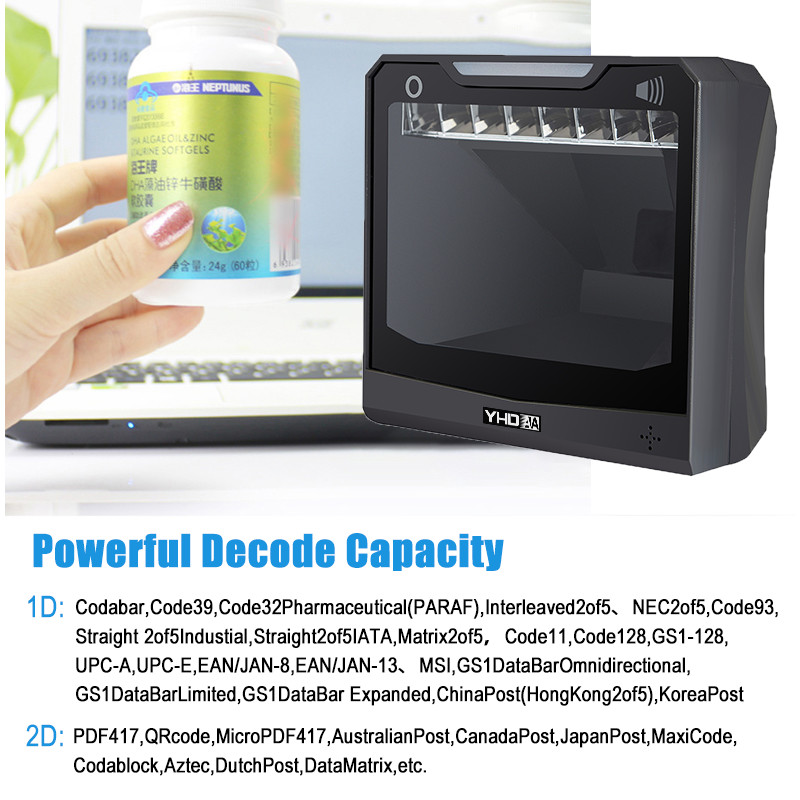

Decoding Capability :

1D: Codabar,Code 39,Code 32 Pharmaceutical (PARAF),Interleaved 2 of 5,NEC 2 of 5,Code 93,Straight 2 of 5 Industrial,Straight 2 of 5 IATA,Matrix 2 of 5,Code 11,Code 128,GS1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,MSI,GS1 DataBar Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,China Post(Hong Kong 2 of 5),Korea Post.

2D: PDF417, QR code, MicroPDF417, Australian Post, Canada Post,Japan Post, MaxiCode, Codablock, Aztec,Dutch Post, DataMatrix, etc.

Electric voltage : 5V DC

Current : Work Current 456mA, Stand-by Current 220mA, Starting Current 470mA

Ambient Light Immunity : 0-100,000 Lux

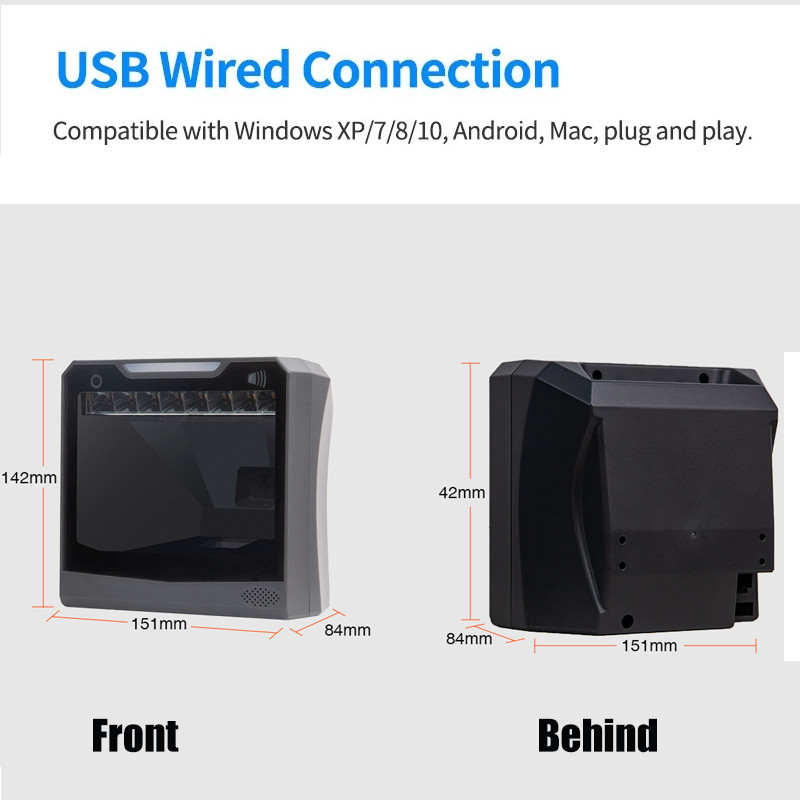

Dimensions : 151mm x 142mm x 84mm

Weight : 348g

Drop test : 2m

Certificate : CE,FCC,ROHS,IP54,SGS




Packaging Details

Standard List: Desktop Scanner*1, Cable *1, Manual *1, Box *1.

Single Package Size: 245*165*105 mm

Single Gross Weight: 0.7kg
