| Categories | Solar PV Module |
|---|---|
| Brand Name: | rixin |
| Model Number: | RXJJ-MDM270 |
| Certification: | TUV CE CCC ISO9001 |
| Place of Origin: | China |
| MOQ: | 620pcs/HQ |
| Price: | negotiations |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 3GW/YEAR |
| Delivery Time: | 7-20 working days |
| Packaging Details: | 40HQ |
| Name: | Custom Solar Panels |
| Type: | BIPV module |
| Application: | solar power station,curtain wall,sunroom,home roof |
| Feature: | Waterproof thermal insulation |
| Junction box: | IP68 Rated |
| Warranty: | 30 Years |
| Power tolerance: | -0~+5% |
| Maximum power (Pm/Wp): | 270 |
| Module efficiency ηc（%）: | 14.4 |
| Fault structure（mm）: | 5 Low iron tempered glass+0.76PVB+polycrystalline silicon cell+0.76PVB+5 tempered glass (3.2+3.2 glass can also be used, the thickness is reduced and the weight is reduced) |
| Cable: | 4mm2/900mm |
| Company Info. |
| Wuhan Rixin Technology Co., Ltd. |
| View Contact Details |
| Product List |
Rixin Bifacial Poly Solar PV Module Price 150watt 270Watt Custom Made Solar Panel Manufacture China Direct

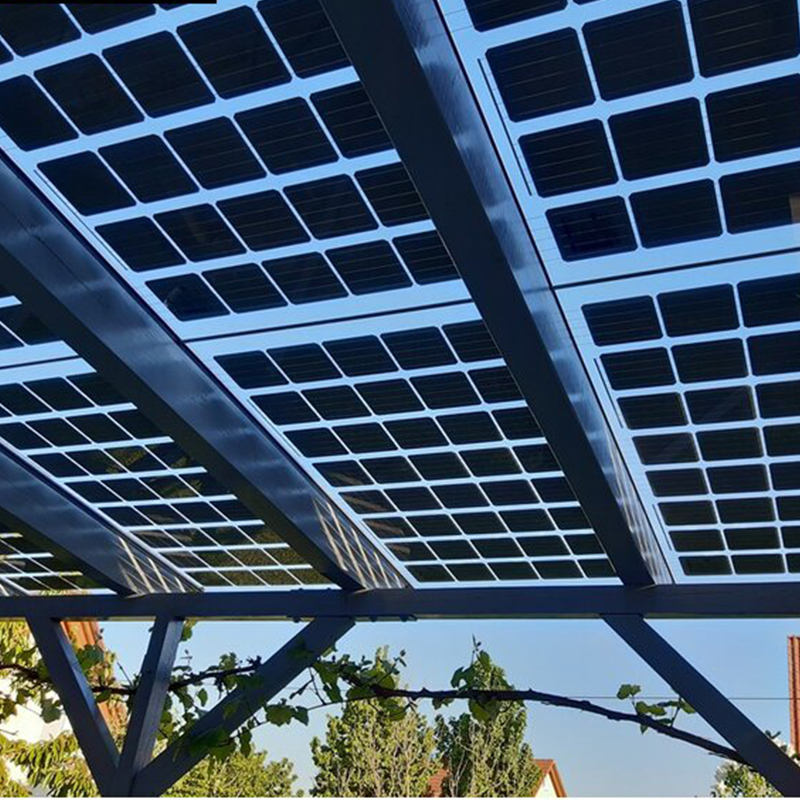

The power generation function of the building is mainly reflected
in the outer protective structure, that is, the photovoltaic
modules must be installed in the part that can receive solar
radiation. For example, if it is installed on the roof, the roof
adds a power generation function on the basis of the original
enclosure function; if it is installed on the sunshade, the
sunshade also adds the power generation function on the basis of
the original heat insulation function. At this time, the
photovoltaic modules installed in this part not only have the
function of power generation, but also have the functions of
building structure, such as roofing function, curtain wall
function, shading function, etc. Therefore, photovoltaic modules
also become photovoltaic components, such as photovoltaic roof
components, photovoltaic curtain wall components, photovoltaic
sunshade components, etc.
After 21 years development, Rixin Technology has completed more
than 1500 PV power plants, and built good business relationship
with the clients all over the world. The full range of Rixin
Technology’s products cover BIPV, PV modules, PV street lights,
Household power generation system, commercial distributed
generation system, and utility-scale power system. Rixin
Technology’s products have obtained TUV, CE, ISO14001, ISO9001,
OHSAS18001 etc. international certificates
With the concept of "cooperation, innovation, integrity, and
service", Rixin Technology provides you with green clean energy and
contributes to your dreaming home!
| Product name | Polycrystalline Silicon Laminated Glass Module | |
| Type | RXJJ-MDM270 | |
| Electrical parameters | Maximum power (Pm/Wp)* | 270 |
| Power tolerance (%) | ±5 | |
| Maximum power voltage (Vmp/V)* | 31.84 | |
| Maximum power voltage ( Imp/A)* | 8.48 | |
| Open circuit voltage (Voc/V)* | 38 | |
| Short circuit current (Isc/A)* | 9.35 | |
| Module efficiency ηc(%)* | 14.4 | |
| Maximum system voltage(V) | 1500 | |
| Working temperature(℃) | -40～85 | |
| Temperature coefficient of Pm | -0.41%/℃ | |
| Temperature coefficient of Voc | -0.31%/℃ | |
| Temperature coefficient of Isc | +0.05%/℃ | |
| Mechanical parameters | Fault structure(mm) | 5 Low iron tempered glass+0.76PVB+polycrystalline silicon cell+0.76PVB+5 tempered glass (3.2+3.2 glass can also be used, the thickness is reduced and the weight is reduced) |
| Cable | 4mm2/900mm | |
| Module dimension (L*W*H)(mm) | 1775mm*1060mm*11mm | |
| Module Weight (kg) | 56kg | |
| Wind resistance | 2.4kN/m2 | |
Solar system:on grid solar system off grid solar system
Solar system material:Inverter cable connector
BIPV:Amorphous silicon hollow glass Crystalline laminated glass
Solar panels:Monocrystalline panel Polycrystalline panel
Solar light: Solar street light Solar garden light Solar insect
killing light
Self-branded
Formed in 2001,has a total of 500 employees. It has two
manufacturing bases, with area 180000㎡ and fully automatic
production lines.
Industry Experience
Rixin Technology is a clean energy company as well as one of the
China’s leading crystalline silicon solar power companies.
Competitive products
High efficiency Perc mono half-cut bifacial module, BIPV laminated
double glass module, Perc mono/poly framed solar panel, solar power
system etc, at present, Rixin Technology’s total installed capacity
of solar projects exceeds 1GW.
Professional Team
Professional saling service and after-sale service.
R&D staff is over 10% employees.
Perfect logistics and warehousing services.
Certificate standard
Have IEC61215, IEC61730, CE, ISO9001 ,ISO14001 certificates
|
