| Categories | Fiber Optic PLC Splitter |
|---|---|
| Brand Name: | SUNET/OEM |
| Model Number: | 1*2/1*4/1*8.... |
| Certification: | ISO9001/ISO14001 |
| Place of Origin: | China |
| MOQ: | 1 piece |
| Price: | usd 1.35-9.52per piece |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 pieces per week |
| Delivery Time: | 3-8 days |
| Packaging Details: | 1 pieces in 1 bag package/blister box package |
| Material: | PVC |
| Fiber type: | G657A1 |
| Connector type: | SC/LC/FC/ST |
| Wavelength: | 1260-1650nm |
| Length: | 0.5m/1m/Customized |
| Application: | FTTX Systems/PON Networks/CATV Links/Optical Signal Distribution |

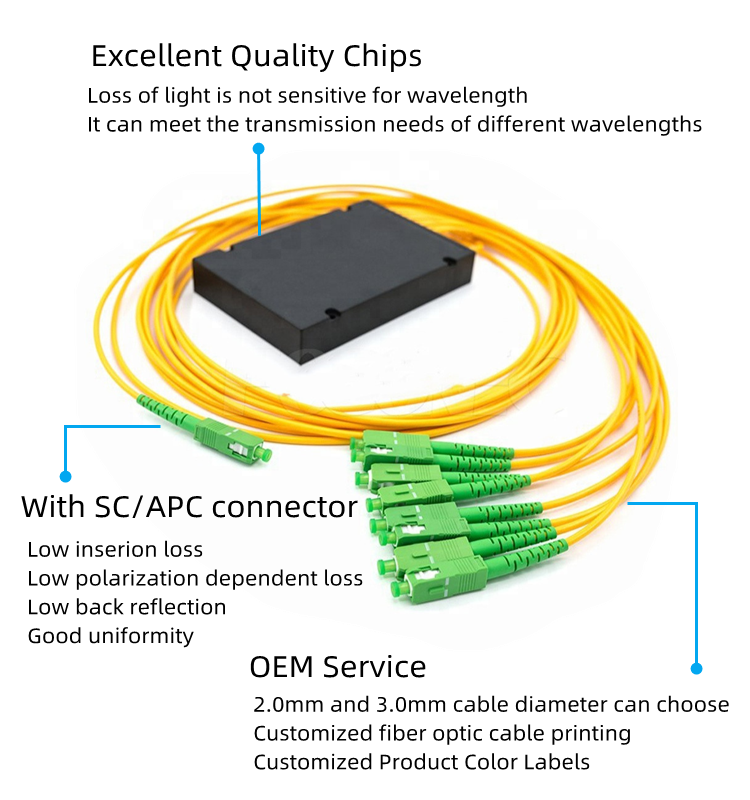

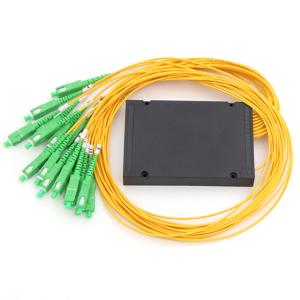

Hot Sale ABS Box Type 1*2 1*4 1*8 PLC Splitter
PLC Splitter Description
Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use
PLC Splitter Feature
1. Low Insertion loss and Low PDL
2. Uniform power splitting
3. High reliability
4. Excellent environmental stability
5. Compact size and various package
PLC Splitter Application
1. FTTx Systems
2. Digital, hybrid and AM-Video systems
3. LAN,WAN and Metro Networks
4. CATV systems
5. Other applications in fiber optic systems
PLC Splitter Specification
| Model | Output tube diameter | Inlet/ outlet fiber length | Pipe Sizes |
| 1×2 splitter | 0.25mm/0.9mm | 1M | 4mm*7mm*50mm |
| 1×4 splitter | 0.25mm/0.9mm | 1M | 4mm*7mm*50mm |
| 1×8 splitter | 0.25mm/0.9mm | 1M | 4mm*7mm*60mm |
| 1×16 splitter | 0.25mm/0.9mm | 1M | 4mm*12mm*60mm |
| 1×32 splitter | 0.25mm/0.9mm | 1M | 6mm*20mm*80mm |
| 1×64 splitter | 0.25mm/0.9mm | 1M | 6mm*40mm*100mm |
1×N PLC Splitter (Measured at room temperature and excludes connector loss)
| Type | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |
| Operating Wavelength(nm) | 1260-1650nm | ||||||
| Insertion loss(dB) | Max | 3.8 | 7.2 | 10.2 | 13.5 | 16.5 | 20.5 |
| Loss uniformity(dB) | Max | 0.5 | 0.6 | 0.8 | 1.0 | 1.5 | 2.0 |
| Return Loss(dB) | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | |
| Polarization Dependent Loss(dB) | Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | |
| Fiber Type | Corning smf-28e or customer designation | ||||||
| Wavelength Dependent Loss(dB) | Max | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 |
Temperature correlation loss-40～85℃(dB) | Typical value | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 |
| Max | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Working Temperature(℃) | -40～85℃ | ||||||
| Storage Temperature(℃) | -40～85℃ | ||||||
2×N PLC Splitter (Measured at room temperature and excludes connector loss)
| type | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | |
| Operating Wavelength(nm) | 1260-1650 | ||||||
| Insertion loss(dB) | Max | 4.0 | 7.4 | 10.5 | 13.9 | 17.0 | 20.5 |
| Loss uniformity(dB) | Max | 0.5 | 0.6 | 0.8 | 1.0 | 1.5 | 2.0 |
| Return Loss(dB) | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | |
| Polarization Dependent Loss(dB) | Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | |
| Fiber Type | Corning smf-28e G657A1 or customer designation | ||||||
| Wavelength Dependent Loss(dB) | Max | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 |
Temperature correlation loss-40～85℃(dB) | Typical value | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 |
| Max | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Working Temperature(℃) | -40～85℃ | ||||||
| Storage Temperature(℃) | -40～85℃ | ||||||
|
