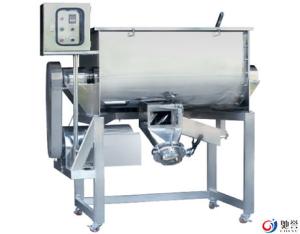

Horizontal Ribbon Blender Powder Mixer With Vacuum Conveyor

Horizontal ribbon blender powder mixer with vacuum conveyor

Scope of Application:

ChiYu Co., Ltd. is a professional supplier of Mixer, Powder Mixer and U Type Mixer, it is suitable for 3-in-1 coffee powder,milk powder, flour, seasoning powder, food additives, milk tea powder, cocoa powder, chinese herbs, western medicine, grains powder, ice cream powder and chemical mixing.

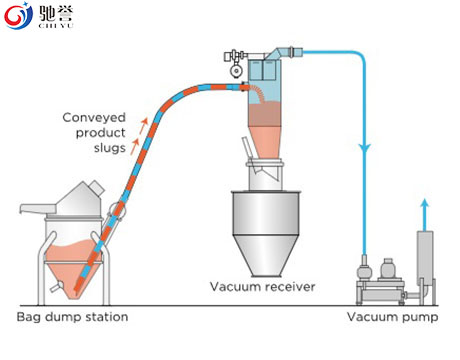

Granules or powder are sucked directly from container into mixing machine through conveyor pipe by vacuum.

The free powder are collected by sanitary grade dust collection device.

It is a device with dust-free, effort-saving, manpower-saving and non-contamination.

Characteristic:

A, Fast mixing speed can satisfy the rigorous demand of mixing the materials with different physical property.

B, The rotation is under critical speed, which will reduce the effect of fragmentation to the material(e. G. Crystal particle)

C, Lower height of the container is convenient for installation.

Working Principle:

A, The horizontal axes make the materials move up and down.

B, The outer ribbon gathering the material from sides to center and the inner ribbon pushing the material from center to sides.

C, Every screw makes the materials do axial and radial movement, the materials do relative cyclical movement so to gain the intensive mixings ends.

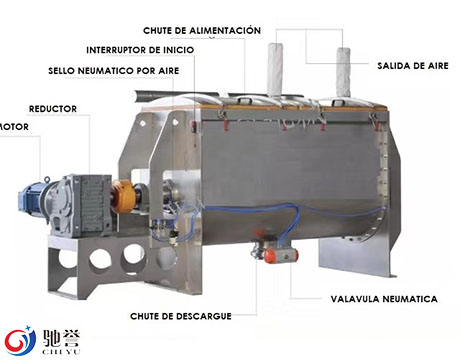

Feeding inlet on the body cover:

Two types:

A, used in the whole mixing/ blending process: In order to connect the feeding device, we design the connecting mouth

B, used in the manual feeding: In order to operate and clean inside of the body, we design feeding inlet(s) or door(s).

Advantage:

(1) Large loading factor and small equipment area.

(2) With the shear blade inside, the micro mixing can be achieved.

(3) According to the production demand, the equipment can be used as a large-scale machine, and the price is cheaper than other mixers.

Technical data:

Zhangjiagang Chiyu Automation Equipment Co., Ltd focus on building bulk solid handling plant and supplying related machines and fabricated parts to plastic, chemical and petrochemical industry.

Our long suits are the best understanding of bulk material properties and the handling process. We are good at solving problems which exist in bulk solid conveying, storage, weighing, mixing and screening.

Meanwhile, offering optimal solutions and proposals of the whole project. Eventually, our company will provide you with an ideal project which acts according to your demands.With comprehensive experience, creative and innovative emotion.
